This 4s TAJMAC-ZPS H40 TREND horizontal machining centre was manufactured in 2015. It features a spindle speed range of 40 – 10,000 rpm and an automatic tool changer with a capacity of 45 tools, ensuring efficient operation. With a rapid traverse of 50 m/min and a rotary table indexing range of 360°, this machine offers versatile machining capabilities. Consider the opportunity to buy this TAJMAC-ZPS H40 TREND horizontal machining centre. Contact us for further details.
Overview
- brand: TAJMAC-ZPS
- year: 2015
- MODEL: H40 TREND
- application type: Milling
- Location: Hungary
- machine type: Horizontal Machining Centre
- Available from: 20/02/2026
- control unit brand: HEIDENHAIN
Technical Information - TAJMAC-ZPS H40 TREND

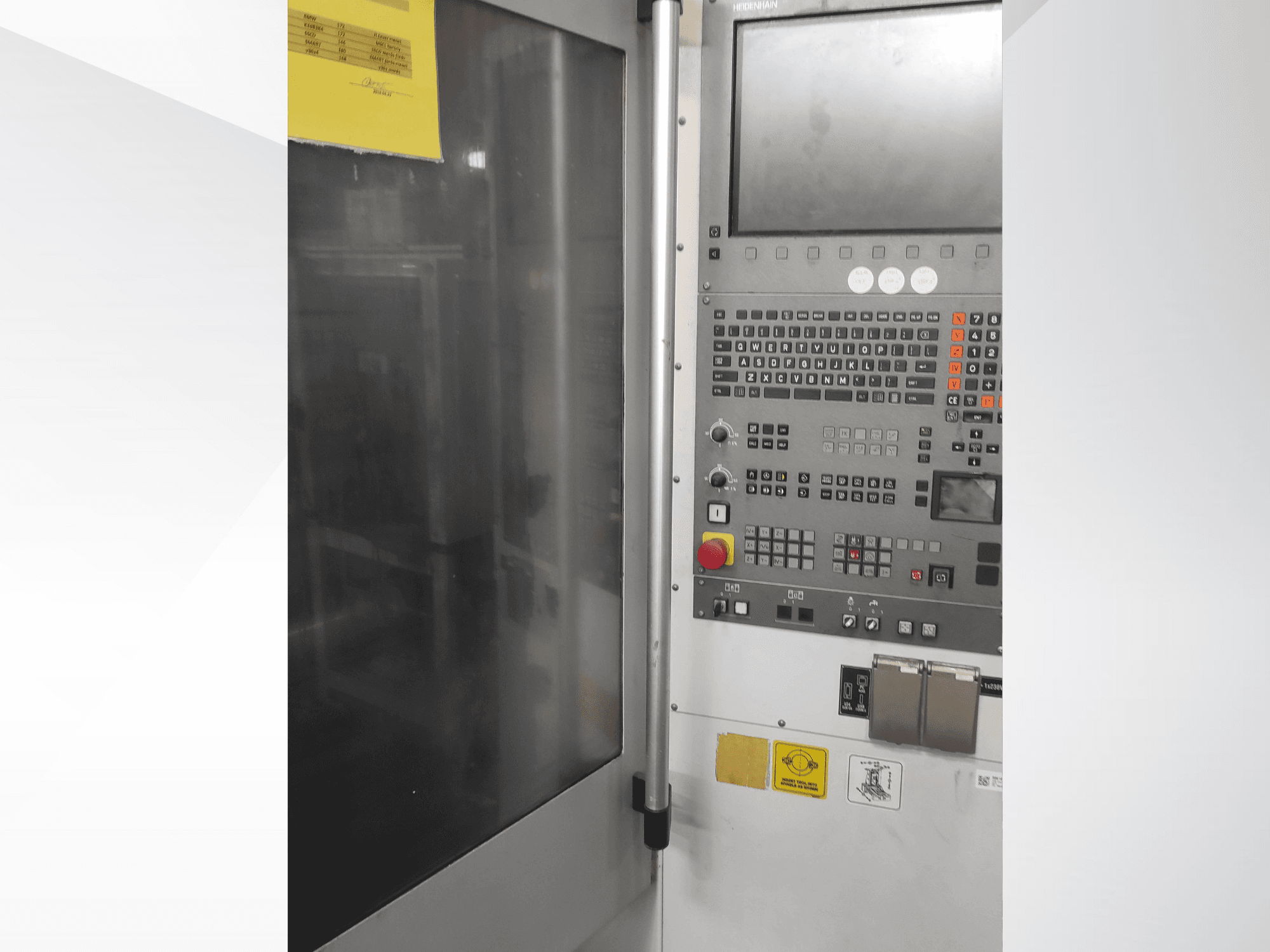

Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Height: 2242 mm
- Machine Length: 4177 mm
- Machine Weight: 8600 kg
- Table Width: 2170 mm
Movement
- Number of Axes: 3
- X-axis Travel: 560 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 560 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
Additional Information
B axis (table indexing range): 360°
Distances:
Spindle face to rotary table axis: 130–690 mm
Spindle axis to pallet clamping surface: 80–590 mm
Floor to pallet surface: 950 mm
Feedrates:
Feedrates in X/Y/Z: 0–15 m/min (programmable up to 50 m/min)
Rapid traverse in X/Y/Z: 50 m/min
Acceleration in X/Y/Z: 5 m/s²
Rotary table indexing time:
0–90°: 3.2 sec
0–180°: 4.6 sec
0–270°: 5.5 sec
0–360°: 6.7 sec
Accuracy (VDI/DGQ 3441):
Direct measuring system: Positioning X/Y/Z 0.008 mm; Repeatability X/Y/Z 0.005 mm
Indirect measuring system: Positioning X/Y/Z 0.010 mm; Repeatability X/Y/Z 0.006 mm
Spindle:
Transmission: Belt
Continuous torque (S1): 90 Nm
Torque at overload (S6-40%): 127 Nm
Automatic Tool Changer:
Capacity: 45 tools
Tool search: Both directions
Tool-to-tool time: 3.5 sec
Max tool diameter: 85 mm (with adjacent tools), 125 mm (without adjacent tools)
Max tool length: 300 mm
Max total weight in changer: 200 kg
Additional equipment
Automatic pallet changer (APC):
Number of pallets: 2
Pallet exchange time: 10 sec
Pallet weight: 90 kg
Coolant filtration unit: TECNIMETAL (weight without coolant: 280 kg)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
