TAILIFT - HP1250BY-PUN-TAI-2006-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- TAILIFT HP1250 Punching Machine

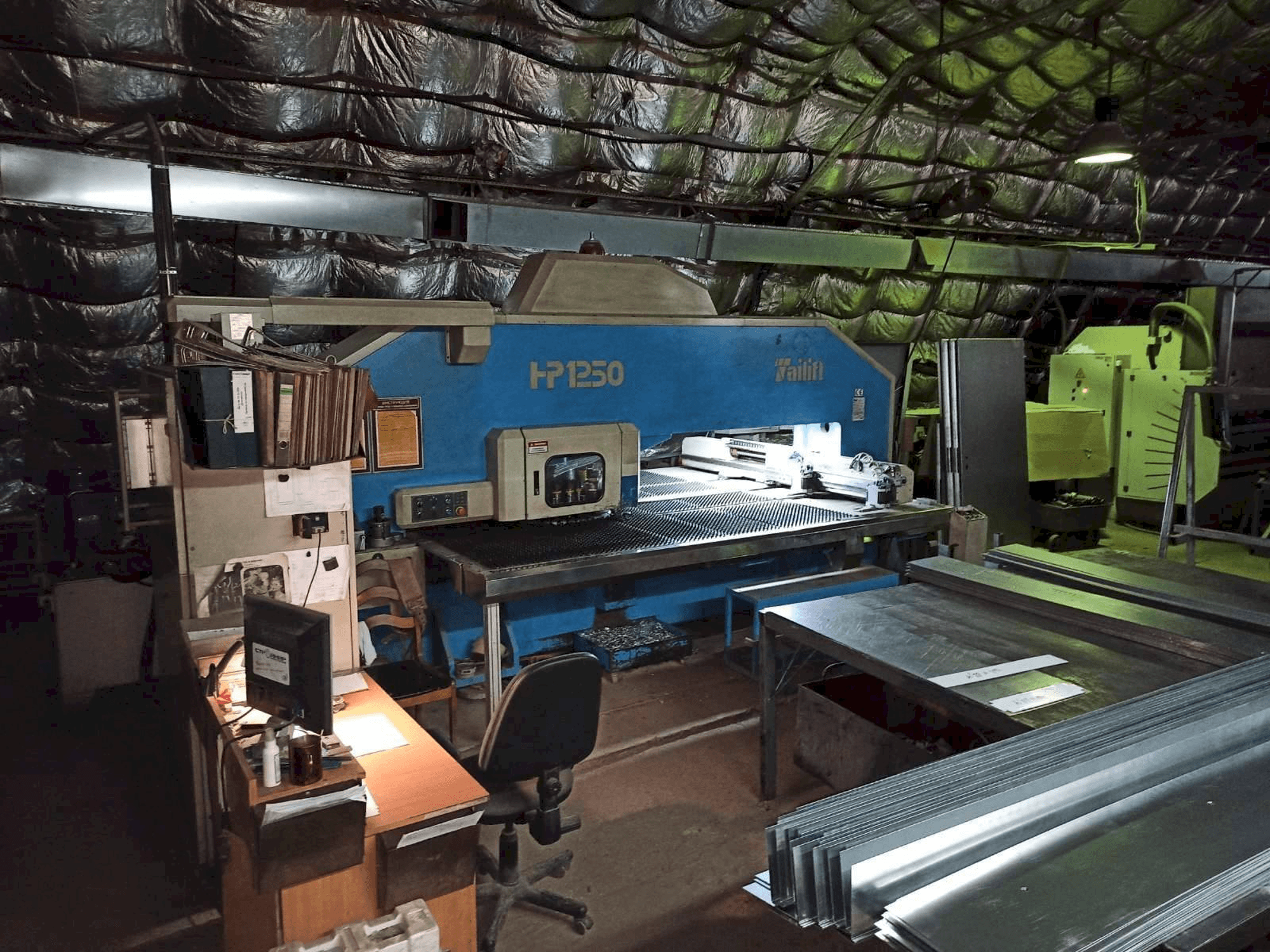

This TAILIFT HP1250 Punching Machine was manufactured in the year 2006. It is equipped with a FANUC Oi-PC control unit. This machine can operate with a punching force of 300 kN, and 36 tool stations.
Overview
- brand: TAILIFT
- year: 2006
- MODEL: HP1250
- application type: Punching
- Location: Belarus
- machine type: CNC Punch Press
- control unit brand: FANUC
Technical Information - TAILIFT HP1250
Control Unit
- Control Brand: FANUC
- Control Model: Oi-PC
Dimensions
- Machine Depth: 2630 mm
- Machine Height: 2530 mm
- Machine Weight: 13000 kg
Movement
- X-axis Travel: 1250 mm
Technical Specification
- Punching Force: 300 Kn
Additional Information
Machine Benefits
Technical Machine Benefits
- Max sheet size: 1250 x 2500 mm
- Max sheet thickness: 6. 35 mm
- Max sheet weight: 110 kg
- Punch speed: 280 hist/min
- Max punching diameter: 88. 9 mm
- Turret rotating speed: 40 rpm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
