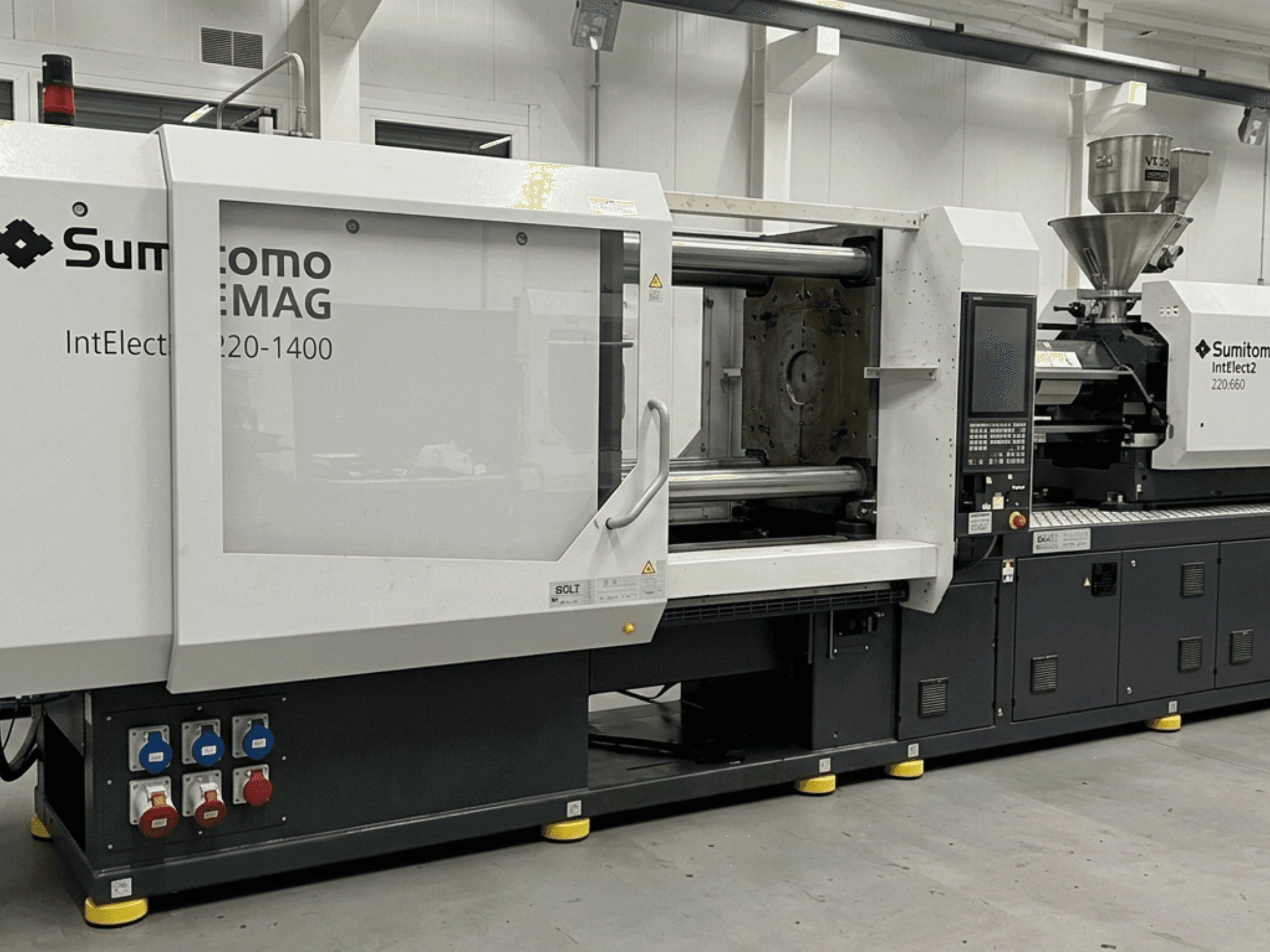

Electrical injection moulding machine manufactured in 2023. This SUMITOMO SHI DEMAG IntElect2 S 220/660-1400 features a clamping force of 2,200 kN and a maximum mold opening stroke of 550 mm. The machine offers a daylight between platens of 1,150 mm and an injection unit size of 1400. If you are looking to get high-quality injection moulding capabilities, consider the SUMITOMO SHI DEMAG IntElect2 S 220/660-1400 machine we have for sale. Contact us for further details.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2023
- MODEL: IntElect2 S 220/660-1400
- production hours: 6000
- application type: Injection Moulding
- Location: Spain
- machine type: Electrical Injection Moulding Machine
- control unit brand:
Technical Information - SUMITOMO SHI DEMAG IntElect2 S 220/660-1400
Technical Specification
- Clamping Force: 2200 kN
- Max. Shot Weight: 771 g
- Screw Diameter: 70 mm
Additional Information
Distance between tie bars (H x V): 660 x 660 mm
Mold platen size (H x V): 920 x 920 mm
Mold opening stroke (max): 550 mm
Daylight between platens (max): 1,150 mm
Mold height (min–max): 300–600 mm (optional: 300–800 mm)
Ejector stroke: 160 mm
Ejector force: 55 kN
Injection unit size: 1400
Screw diameter options: 50 / 60 / 70 mm
Injection stroke: 220 mm
Calculated stroke volume: 432 / 622 / 847 cm³ (with 50 / 60 / 70 mm screw)
Max. shot weight (PS): 393 / 566 / 771 g (with 50 / 60 / 70 mm screw)
Max. injection pressure: 2,420 / 2,000 / 1,470 bar (with 50 / 60 / 70 mm screw)
Injection speed (max): up to 350 mm/s (high-performance S-drive specification)
Drive concept: All-electric with proprietary direct-drive technology
Core pull interfaces: 2 (hydraulic/electric options)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
