SUMITOMO SHI DEMAG - IntElect 220/610-750 smartDE-INJ-SUM-2013-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used SUMITOMO SHI DEMAG IntElect 220/610-750 smart For Sale

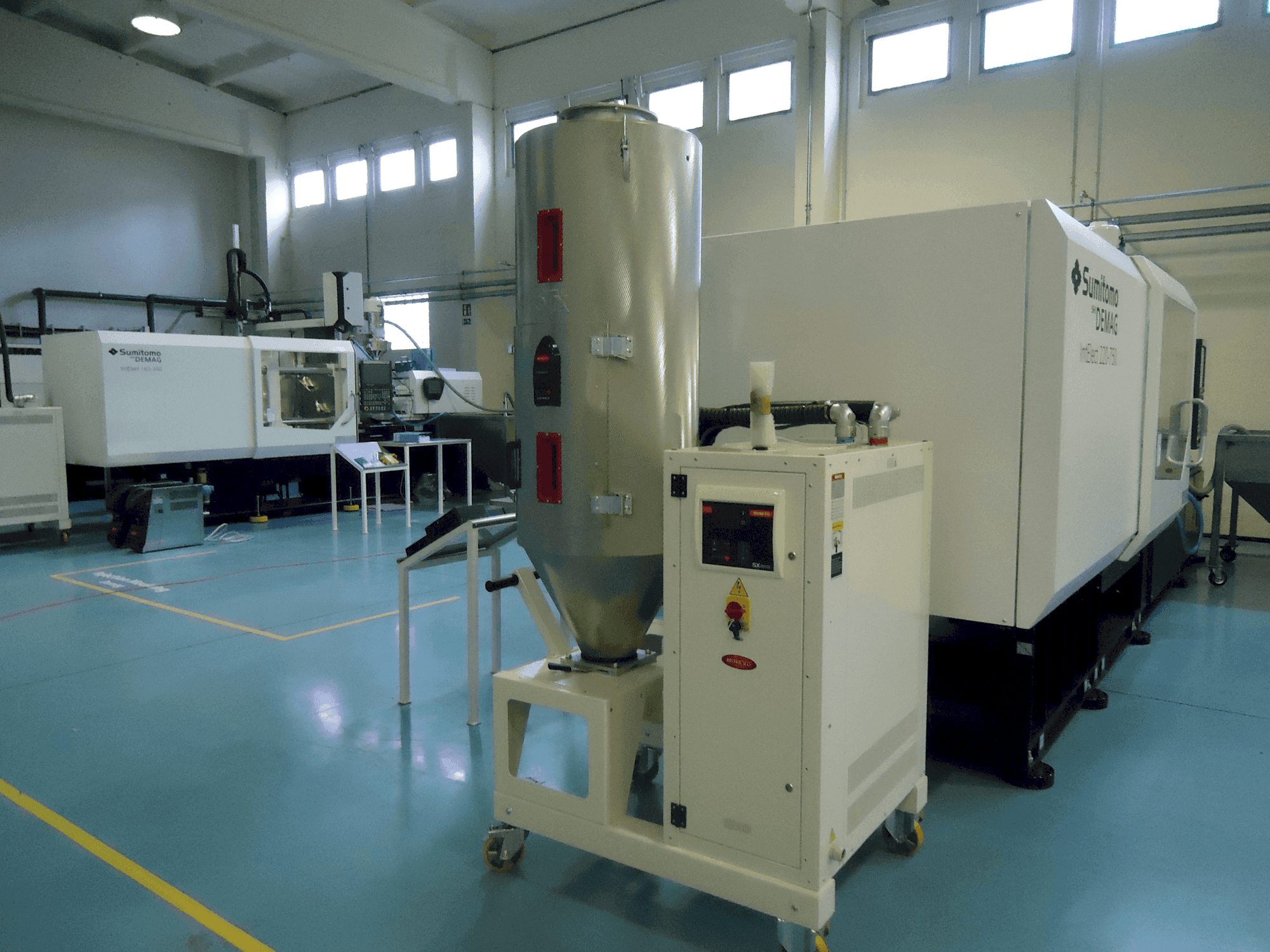

This SUMITOMO SHI DEMAG IntElect 220/610-750 smart was manufactured in 2013. It's an electrical injection moulding machine known for its precision and efficiency. Ideal for those looking to enhance their production capabilities with reliable technology. Contact us for more information.
Overview
- brand: SUMITOMO SHI DEMAG
- year: 2013
- MODEL: IntElect 220/610-750 smart
- production hours: 27551
- application type: Injection Moulding
- Location: Germany
- machine type: Electrical Injection Moulding Machine
- availability: Immediately
Technical Information - SUMITOMO SHI DEMAG IntElect 220/610-750 smart
General Data
- Measurements width: 1260 mm
- Measurements depth: 6460 mm
- Measurements height: 2100 mm
Clamping unit
- Clamping force: 2200 kN
Additional Equipment
- - Sepro Robot SDR 22
Additional Information
- Technical Machine Benefits:
- - Screw diameter: 45 mm / screw geometry: standard / l/d ratio: 20 / specific injection pressure: 2150 bar / maximum shot volume: 329 cm³ / maximum shot weight: 293 g / injection rate without accumulator: 254 cm³/s
- - Dosing stroke: 207 mm / maximum nozzle stroke: 450 mm / nozzle immersion depth: 20 mm / nozzle contact force: 58 kn / number of heating zones: 4 / hopper capacity: 50 l / maximum injection speed: 160 mm/s
- - Holding force: 2420 kn / maximum opening stroke: 550 mm / minimum mold height: 300 mm / maximum mold height: 580 mm / maximum platen distance: 1130 mm
- - Mold clamping plates (hxv): 880x830 mm / clearance between tie bars (hxv): 610x560 mm / ejector stroke: 150 mm / ejector force: 58 kn
- - Dry cycle time according to euromap 6 (stroke): 427 mm
- - Net weight without oil: 10100 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
