➤ Used STUDER S33 For Sale | gindumac.com

Show in original language

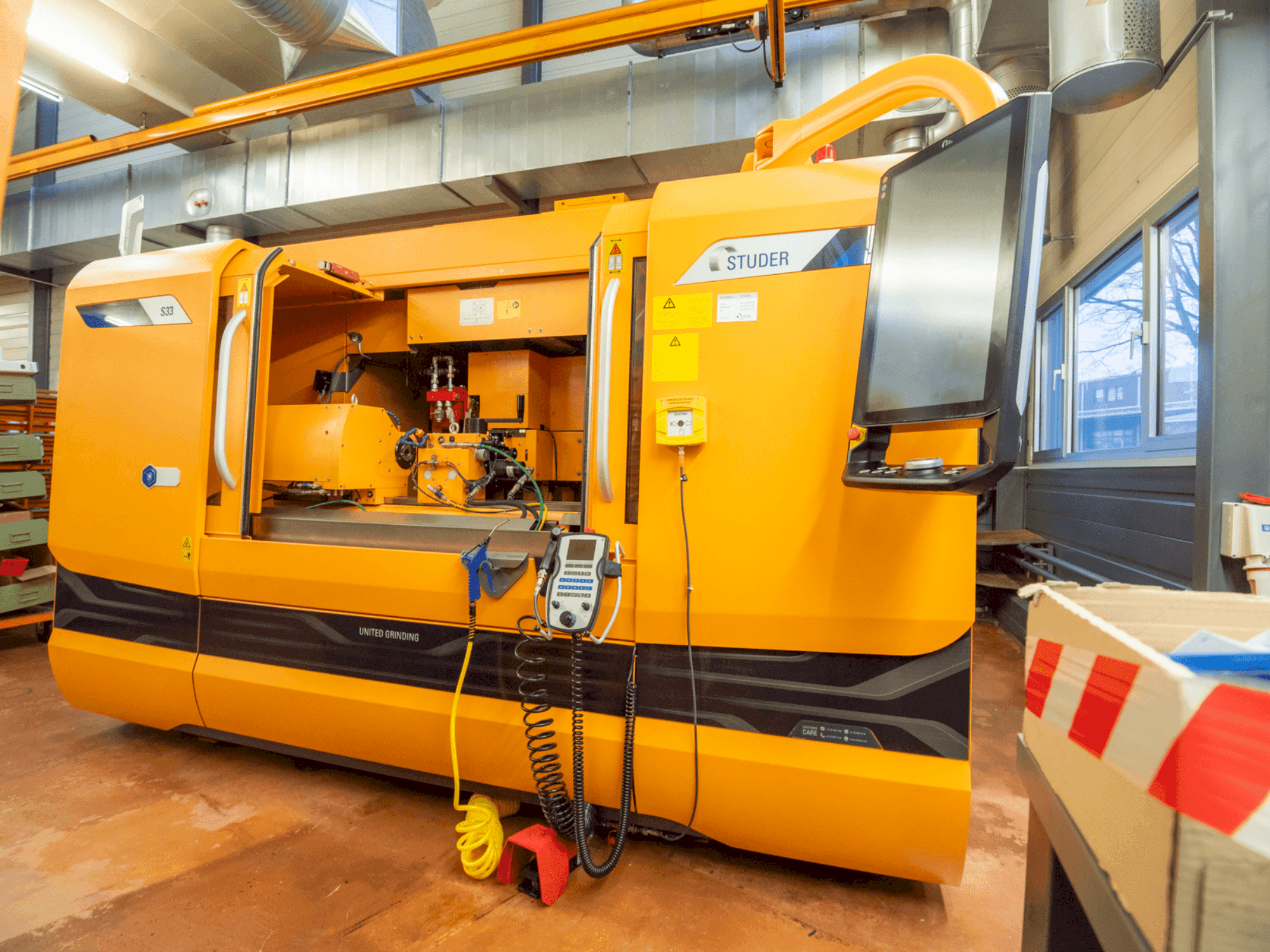

This 4-axis STUDER S33 cylindrical grinding machine was manufactured in 2023. It features a distance between centers of 650 mm, center height of 175 mm, and can handle a maximum workpiece weight of 150 kg. Equipped with a Fanuc 31i-B control system, it also includes a measuring probe, fire extinguishing system, oil mist separator, and coolers. Consider the opportunity to buy this STUDER S33 cylindrical grinding machine. Contact us for more information about this machine.

Overview

brand: STUDER
year: 2023
MODEL: S33
production hours: 4976
application type: Grinding
Location: Switzerland
machine type: Cylindrical Grinding Machine
availability: Immediately
control unit brand: FANUC

Technical Information - STUDER S33

General Data

Measurements width: 3250 mm
Measurements depth: 2100 mm
Measurements height: 2150 mm

Control Unit

Brand: FANUC
Model: 31i-B

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 370 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece weight: 150 kg

Additional Equipment

- Equipped with: Measuring probe, Kraft & Bauer fire extinguisher installation, LTA oil mist separator, DGS paper filter, motorex/Ritter & bader coolers, grinding wheels, documentation

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis swivel: -30° +225°
- - C-axis accuracy: +/- 0. 5°
- - Distance between centers: 650 mm
- - Center height: 175 mm
- - Grinding wheel maximum size: 2x 500x80 mm
- - Grinding wheel capacity: t1: 1982 rpm, t2: 42970 rpm
- - Workpiece spindle head: mk4
- - Workpiece spindle capacity: 1-1500 rpm
- - Workpiece tailstock head: mk3

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
