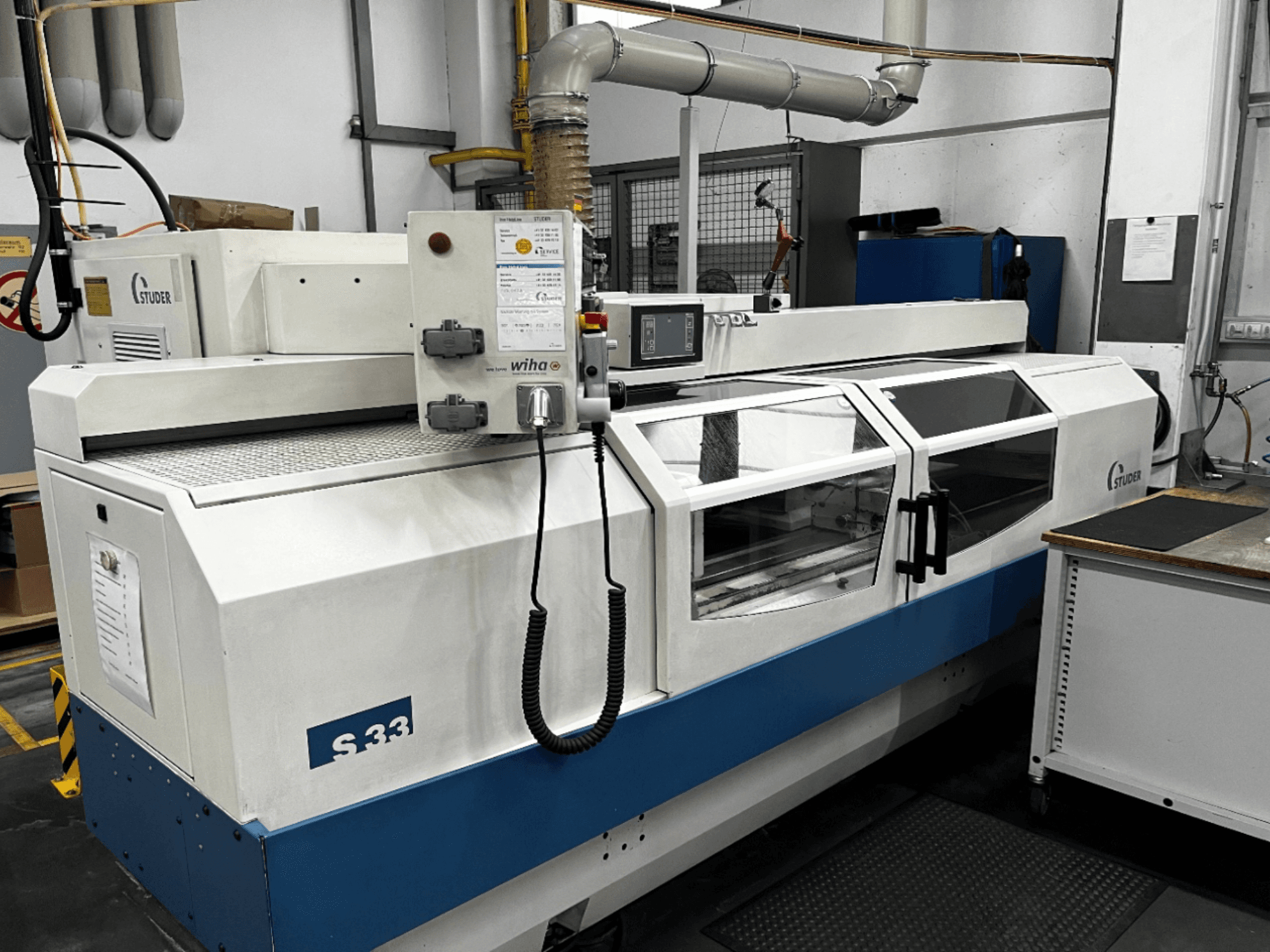

Cylindrical grinding machine manufactured in 2004. This STUDER S33 CNC features a Z-axis travel of 1000 mm and an X-axis travel of 285 mm. It is equipped with a grinding spindle diameter of 73 mm and can handle a maximum workpiece length of 1000 mm, with a weight capacity of 120 kg. If you are looking to get high-quality grinding capabilities, consider the STUDER S33 CNC machine we have for sale. Contact us for further details.
Overview
- brand: STUDER
- year: 2004
- MODEL: S33 CNC
- application type: Grinding
- Location: Germany
- machine type: Cylindrical Grinding Machine
- control unit brand: FANUC
Technical Information - STUDER S33 CNC
Control Unit
- Control Brand: FANUC
- Control Model: 21i TB
Dimensions
- Machine Height: 2500 mm
- Machine Length: 3500 mm
- Machine Weight: 4000 kg
- Machine Width: 3000 mm
Movement
- Number of Axes: 2
- X-axis Travel: 285 mm
- Z-axis Travel: 1000 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 3200 RPM
Additional Information
Utilization: 40%
Shifts: 2
Priority: 3
Number of tools: 1
Condition: Condition is good for its age. Maintenance was carried out every 2 years by Studer. Relatively low operating hours for its age.
Grinding spindle diameter: 73 mm
Grinding wheel: Ø500 x 63 / Ø203 mm
Max workpiece length: 1000 mm
Max workpiece weight: 120 kg
Max workpiece diameter: 175 mm
Operating hours: 18,182.66 h
Additional equipment
9x flange
1x Studer steady rest with protective cover
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
