STUDER - S 31 CNCDE-GRI-STU-2007-00001

Name: STUDER S 31 CNC
Brand: STUDER
SKU: DE-GRI-STU-2007-00001
Price: 54550 GBP
Availability: InStock

£ 54,550

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used STUDER S 31 CNC For Sale | gindumac.com

Show in original language

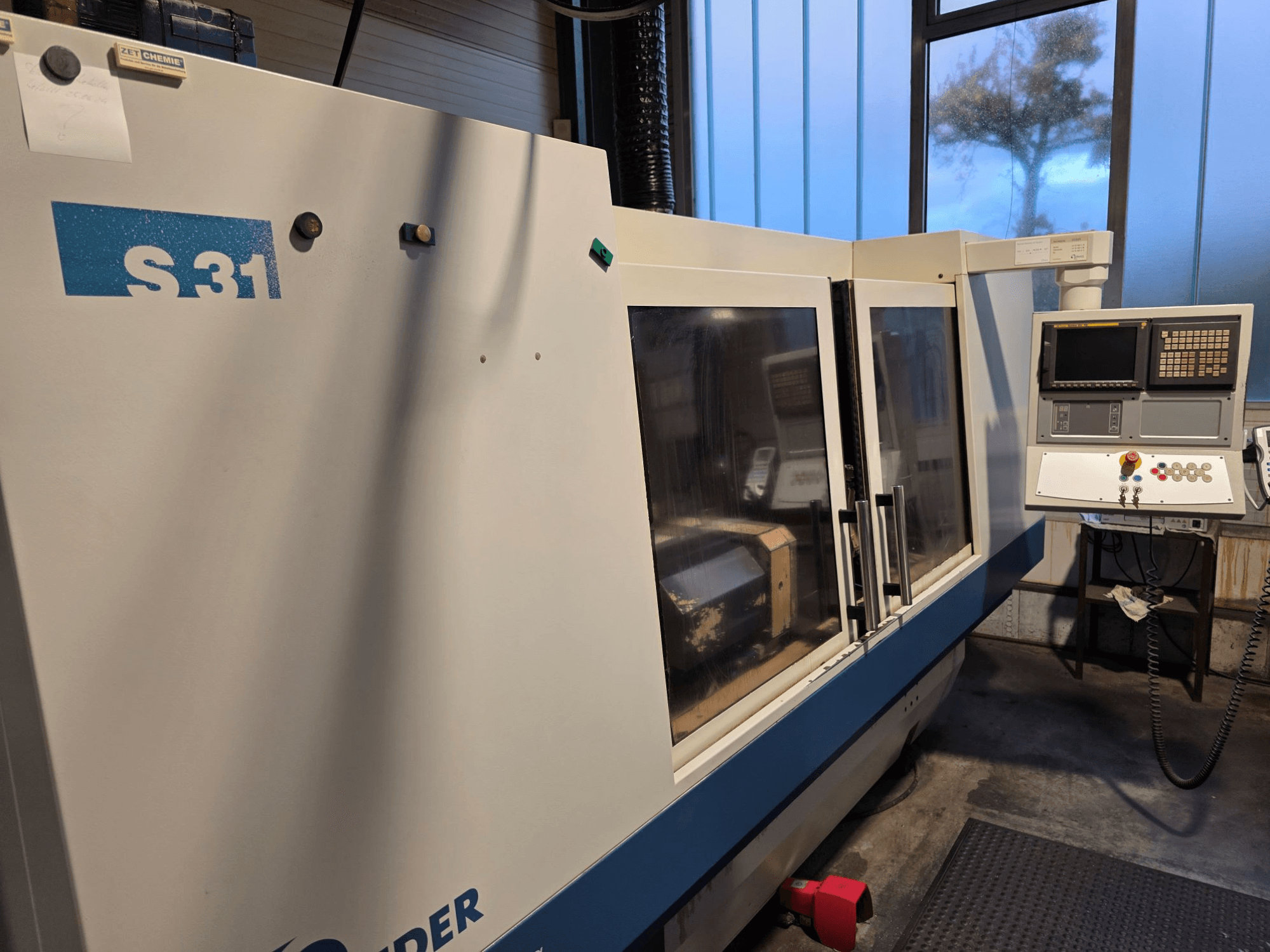

This STUDER S31 CNC cylindrical grinding machine was manufactured in 2007. It features a robust Granitan S103 bed, a center distance of 1000 mm, and a center height of 175 mm. Equipped with a universal swiveling turret grinding spindle head and a high-frequency motor spindle, it offers precision and versatility. Consider the opportunity to buy this STUDER S31 CNC cylindrical grinding machine. Contact us for more information about this machine.

Overview

brand: STUDER
year: 2007
MODEL: S 31 CNC
application type: Grinding
Location: Germany
machine type: Cylindrical Grinding Machine

Technical Information - STUDER S 31 CNC

Additional Information

Cross axis X (NC axis) driven by AC servo motor and ball screw, travel 280 mm, feed rate programmable 0.001–5000 mm/min
Longitudinal axis Z, driven by AC servo motor and ball screw, travel 1150 mm
Universal workpiece spindle head with roller bearings, ISO 50 taper
Manual cylindricity correction to workpiece spindle head
Runout accuracy at least 0.0004 mm
C-axis standard
3 kW workpiece drive with AC servo moto
Universal swiveling turret grinding spindle head
Automatic grinding wheel contact protection, with protective hood in tool position left and right
Motor spindle
Cutting speed of motor spindle 1 programmable up to max. 50 m/s
HN internal grinding equipment for Fischer spindles with oil-air lubrication
Suspension device (60 kN/6000 kg) T-beam with cables for crane transport
Connection voltage 400 volts +/- 10°
Mains frequency 50 Hz
4-wire power supply
Internal control voltage 24 volts DC
Cooling lubricant equipment for emulsion

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
