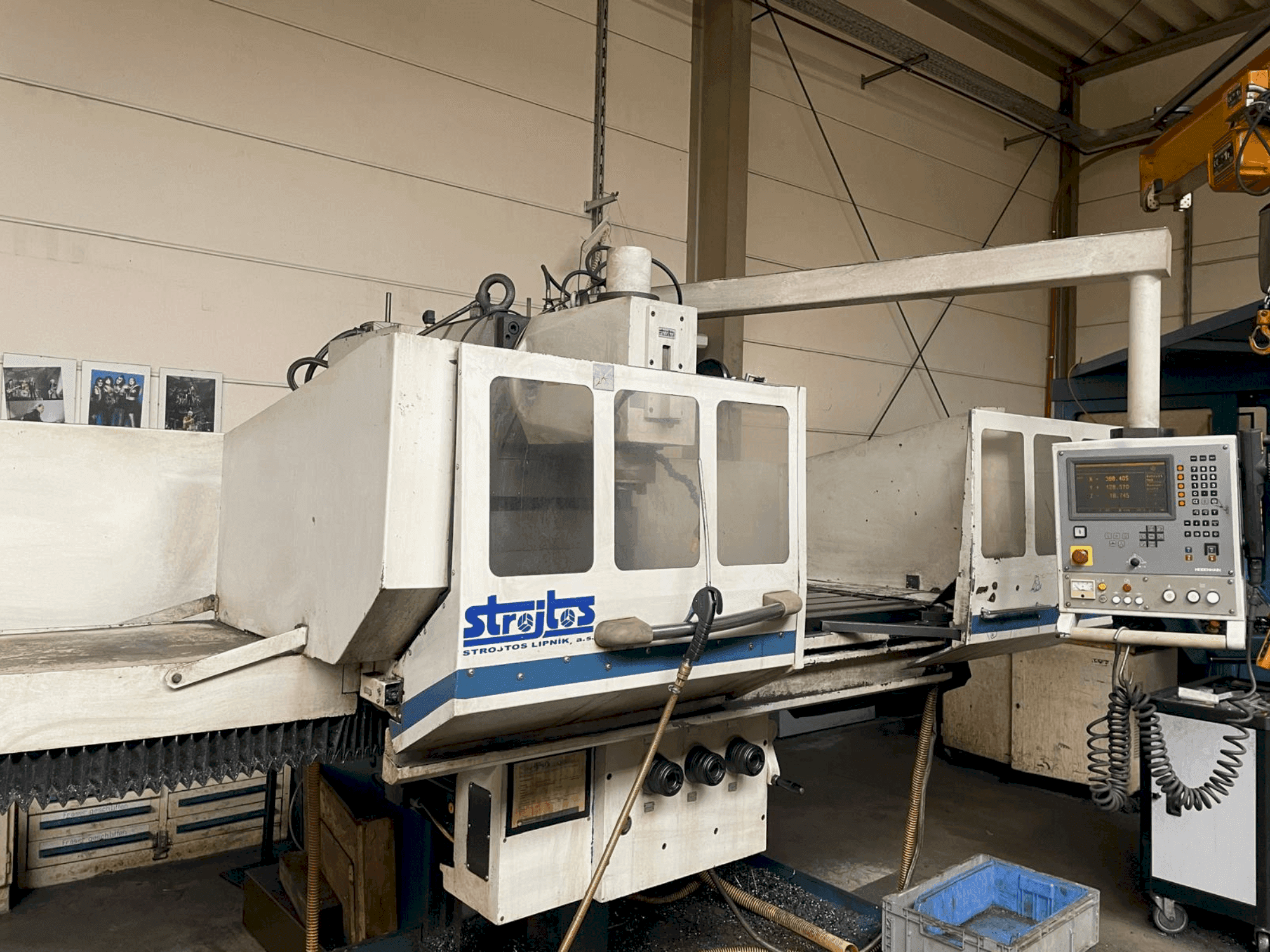

Front view of Strojtos  FGS 63 NCP  machine

Strojtos - FGS 63 NCPDE-MIL-STR-2007-00001

£ 30,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Strojtos FGS 63 NCP was manufactured in 2007. It features a robust table with dimensions of 630 x 1800 mm, capable of handling a maximum workpiece weight of 1000 kg. The spindle supports a torque of 1600 Nm and offers a speed range up to 2800 rpm. Ideal for precise vertical machining with its extensive travel in all axes. Consider the opportunity to buy this Strojtos FGS 63 NCP vertical machining centre. Contact us for more information.

Overview

  • brand: Strojtos
  • year: 2007
  • MODEL: FGS 63 NCP
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - Strojtos FGS 63 NCP

General Data

  • Measurements width: 4298 mm
  • Measurements depth: 3447 mm
  • Measurements height: 2265 mm
  • Machine weight: 5850 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: Heidenhain

Main drive

  • Spindle speed range: 1430 1/MIN
  • Spindle motor power: 15 kW
  • Number of axis: 3

    Additional Equipment

    • - Sound Power: 97.5 dB
    • - Sound Level at Workstation: 80 dB/A

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Longitudinal table feed (machine-operated): 1400 mm
        • - Cross-traverse headstock movement (machine-operated): 630 mm
        • - Vertical table movement (machine-operated): 600 mm
        • - Table clamping surface (width x length): 630 x 1800 mm
        • - Number of clamping slots: 5 width x pitch: 22 x 100 mm
        • - Feed motor speed (continuous): 0-2000 min-1 // feed motor power: 2. 2 kw
        • - Cooling motor speed: 2800 min-1 // cooling motor supplied power: 0. 115 kw
        • - Maximum transported fluid volume: 40 dm3 min-1
        • - Total power approximation: 20 kva
        • - Approximate floor area: 15. 1 m2

      Extra information

      • - Table Table Clamping Surface (Width x Length): 630 x 1800 mm Number of Clamping Slots: 5 Width x Pitch: 22 x 100 mm Spindle Tapered Spindle Bore: CSN 22 0430 ISO 50 Spindle Diameter in Front Bearing: 100 mm Maximum Spindle Torque: 1600 Nm Spindle Speed: 18 steps Normal Speed Range: 56-2800 rpm Reduced Speed Ranges: 45-2240 rpm 35.5-1800 rpm 28-1400 rpm Workpiece Max. Workpiece Weight: 1000 kg Max. Feed Forces: Longitudinal: 20000 N Transverse: 20000 N Vertical (Table Loaded with Max Mass of Workpiece): 28000 N Distance Between Spindle Axis and Table Clamping Surface: 73-573 mm Distance of Spindle Face from Table Rear Edge: 350-280 mm

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
