STEINHAUER - eCAB S 2415 HSDE-OTH-STE-2005-00001

Name: STEINHAUER eCAB S 2415 HS
Brand: STEINHAUER
SKU: DE-OTH-STE-2005-00001
Price: 12343 GBP
Availability: InStock

£ 12,343

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used STEINHAUER eCAB S 2415 HS For Sale | gindumac.com

Show in original language

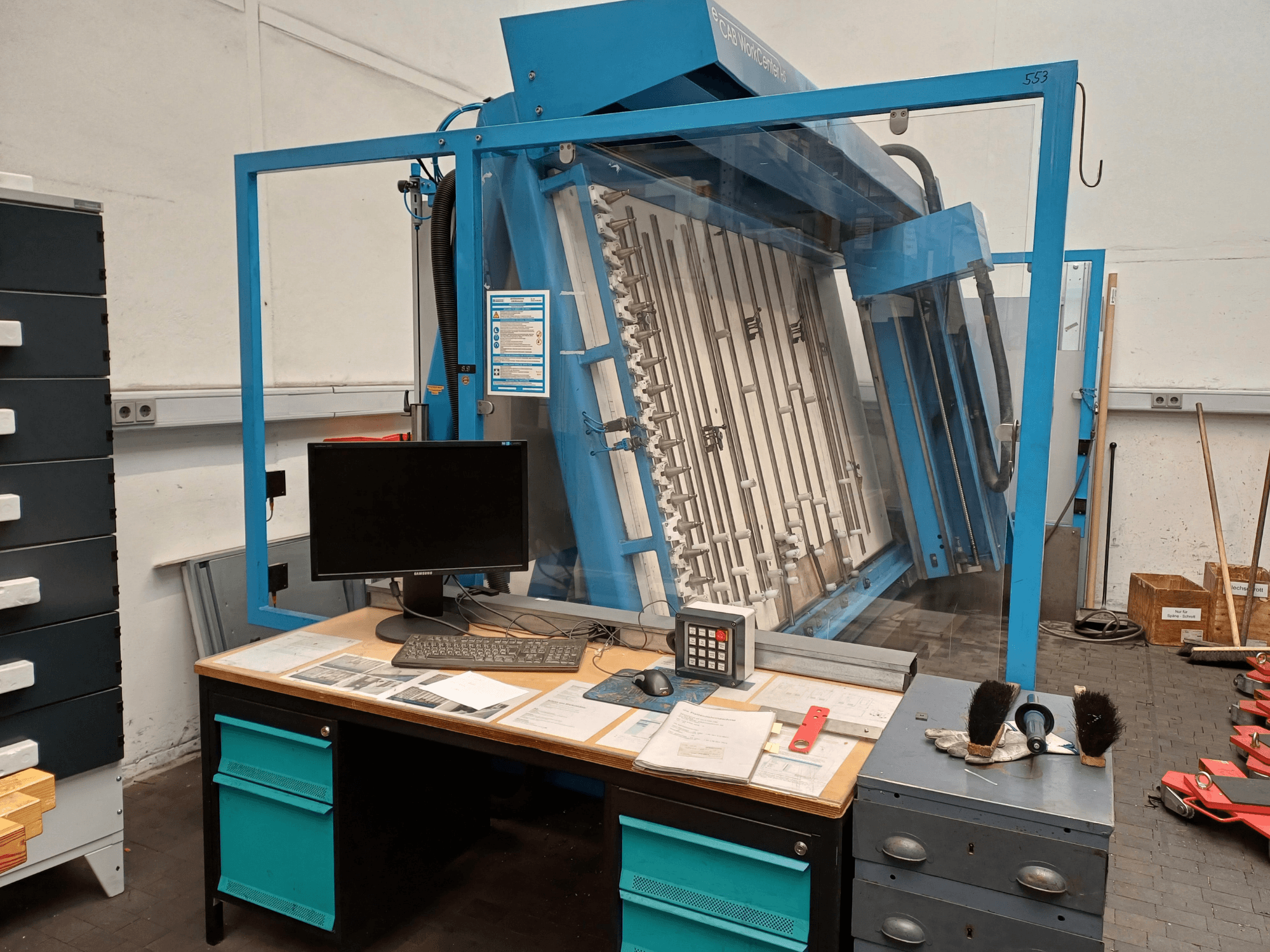

This 3-axis STEINHAUER eCAB S 2415 HS was manufactured in 2005. It features a 4-axis CNC Beckhoff control, a high-frequency spindle with a maximum speed of 6,000 rpm, and a milling speed up to 5,000 mm/min. The machine can handle workpieces up to 2400 mm in length and 1550 mm in width. If you are looking to get high-quality milling capabilities, consider the STEINHAUER eCAB S 2415 HS machine we have for sale. Contact us for more information.

Overview

brand: STEINHAUER
year: 2005
MODEL: eCAB S 2415 HS
application type: Other Machine Tools
Location: Germany
machine type: Machine Tool

Technical Information - STEINHAUER eCAB S 2415 HS

Dimensions

Machine Depth: 2500 mm
Machine Height: 2350 mm
Machine Length: 3490 mm
Machine Weight: 2500 kg

Additional Information

X, Y, Z Traverse Speed: 32 m/min
Repeatability (all axes): 0.04 mm
Max. Workpiece Width (front): 1550 mm
Max. Workpiece Length (front): 2400 mm
Min. Workpiece Width (front): 200 mm
Min. Workpiece Length (front): 150 mm
Tool Diameter with ER32 Collet: 3-20 mm
Tool Diameter with ER25 Collet: 1.5-2.5 mm
Tools Standard / Max.: 12 / 18 pieces, freely configurable
Drills: D1.5-D20
Threads: M2-M12
Cutters: D2-D6
CNC High-Frequency Spindle ISO30/DIN69871: 5.5 kW/18000 rpm
Scope of Delivery: Machine, Clamping Devices, 18 Tool Holders, PC with Software, Monitor, Mouse & Keyboard, Manual
Power Supply: 3+400V 50760 Hz
Compressed Air: 8 bar, approx. 3300 l/min intake capacity
Data Interface: 10/100 mbps Ethernet, RJ 45

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
