STAUBLI - RX160 LDE-ROB-STA-2017-00002

Name: STAUBLI RX160 L
Brand: STAUBLI
SKU: DE-ROB-STA-2017-00002
Price: 16600 GBP
Availability: InStock

£ 16,600

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used STAUBLI RX160 L - Robot Arm For Sale | gindumac.com

Show in original language

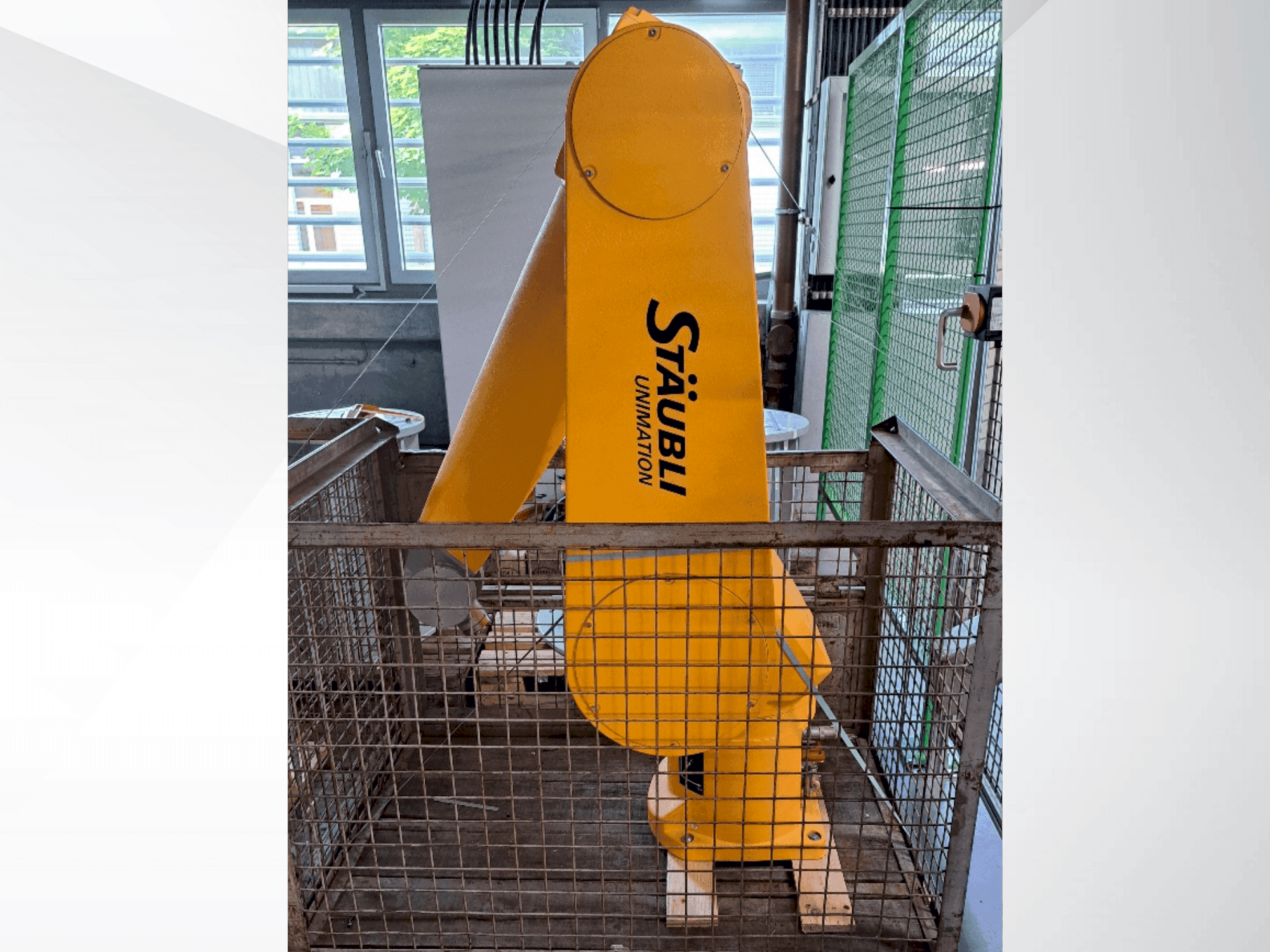

This 6-axis STAUBLI RX160 L robot arm was manufactured in 2017. It features a maximum load capacity of 28 kg and a reach of up to 2010 mm. Equipped with a CS8C-RX160 controller and a robot stand, it offers high flexibility with motion ranges up to ±270° on several axes and speeds reaching 870°/s on Axis 6. Ideal for tasks requiring precision and range. Contact us for more information about this machine.

Overview

brand: STAUBLI
year: 2017
MODEL: RX160 L
production hours: 0
application type: Robotics
Location: Germany
machine type: Robot Arm

Technical Information - STAUBLI RX160 L

General Data

Machine weight: 250 kg

Controller

Model: CS8C-RX160

Main drive

Number of axis: 6

Table

Table load: 28 kg

Additional Information

Machine Benefits

Technical machine benefits:

All axes equipped with brakes
Protection class (wrist): IP65 (IP67) according to standard NF EN 60529
Working temperature range: +5°C to +40°C
Humidity tolerance: 30% to 95% max. non-condensing

Nominal Load: 14 kg
Reach (between axis 1 and 6): 2010 mm
Repeatability: ±0.05 mm (ISO 9283)

Workpiece

Maximum Reach (between axis 1 and 5): 1900 mm
Minimum Reach (between axis 1 and 5): 462 mm
Minimum Reach (between axis 2 and 5): 463 mm
Minimum Reach (between axis 3 and 5): 925 mm

Motion Range

Axis 1: ±137.5°
Axis 2: ±150°
Axis 3: ±150°
Axis 4: ±270°
Axis 5: +120°/-105°
Axis 6: ±270°

Maximum Speed

Axis 1: 200°/s
Axis 2: 200°/s
Axis 3: 255°/s
Axis 4: 315°/s
Axis 5: 360°/s
Axis 6: 870°/s
At load gravity center: 12.3 m/s

Extra Information

Maximum inertias (Axis 5): 2.8 kg.m²

Maximum inertias (Axis 6): 0.7 kg.m²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
