➤ Used Starrag Heckert Dynamic CWK 400D | Machining Center

Show in original language

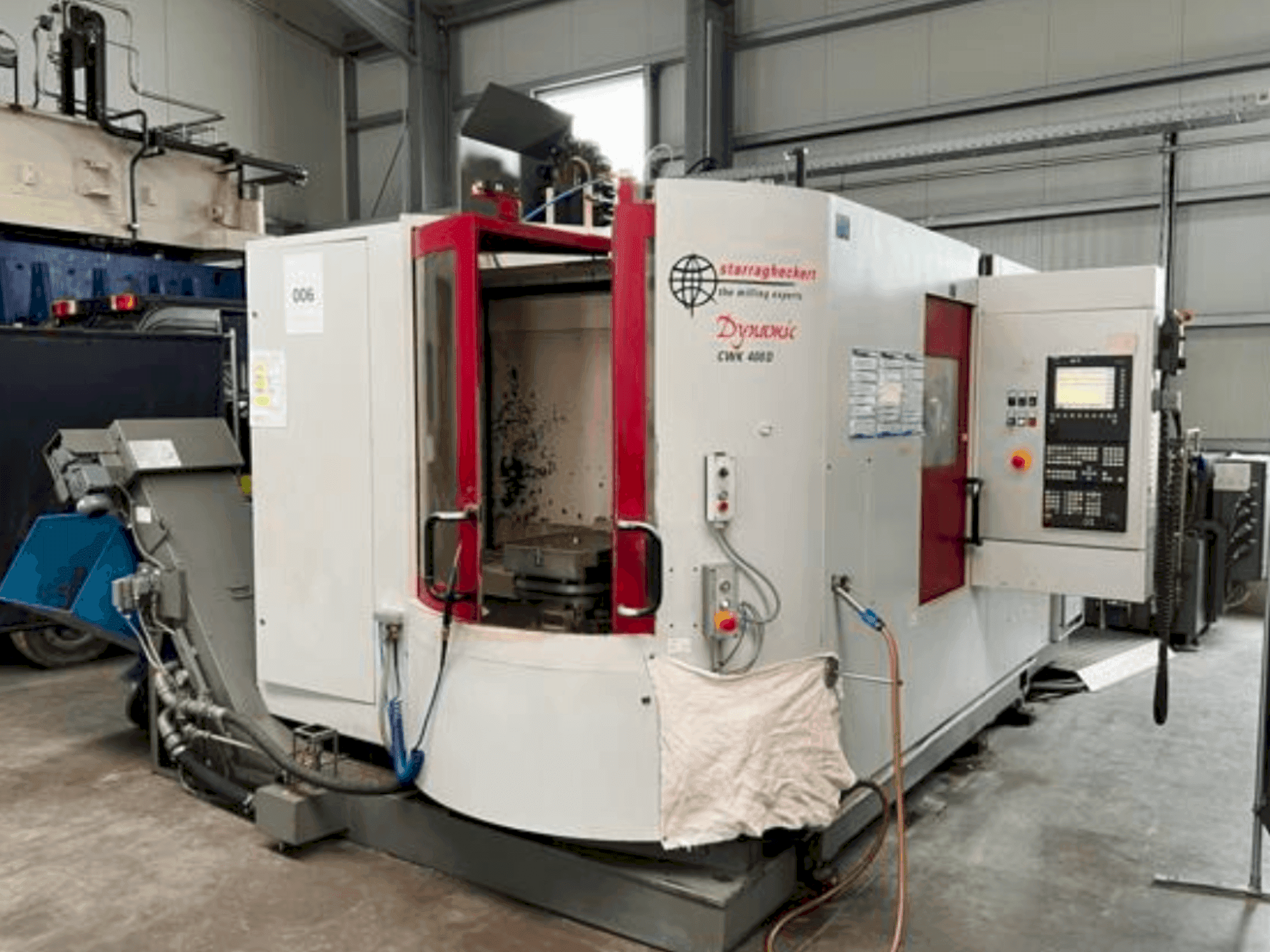

This 4-axis Starrag Heckert Dynamic CWK 400D was manufactured in 2005. It features a Siemens Sinumerik 840D control system, spindle speeds up to 10,000 rpm, and a dual pallet system with rapid 8-second pallet changes. The machine includes a tool magazine with 60 positions and a high-capacity coolant system. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: Starrag Heckert
year: 2005
MODEL: Dynamic CWK 400D
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - Starrag Heckert Dynamic CWK 400D

General Data

Measurements width: 4800 mm
Measurements depth: 5800 mm
Machine weight: 12800 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 24 kW
Number of axis: 4

Movement

X-AXIS Movement: 625 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 650 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 650 mm
Z-AXIS Rapid traverse: 40 m/min

Table

Table load: 4000 kg

Tools

Max weight: 10 kg
Max tool diameter: 80 mm
Max tool length: 350 mm
Type of tool holder: DIN 69893-HSK-A63

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Renichaw measuring probe
Tool breakage detection: Yes, in tool magazine
Flushing gun at the setup station
Waterfall shower
Paper belt filter
Pallet sequential operation
Enclosed work area enclosure according to UW
Computer connection via Ethernet interface
Network connection

Machine Benefits

Technical Machine Benefits

Bia axis: b-axis (360 x 0. 001°) 100 rpm
Working feed range x/y/z: 1-4000 mm/min
Table/pallet size (l x w in mm): 2 pallets 500 x 400 mm
Table/pallet alignment type: t-slots according to din 55201
Pallet changer / setup station / storage space: yes // pallet change / tool change time: 8 sec / 5 sec
Table/pallet load (in kg): 4000 kg
Tool magazine type: chain magazine
Tool diameter with free adjacent positions: 160 mm
Max. Total tool weight: 200 kg
Tool magazine positions: 60

Extra Information

Technical documents and layout plan available Machine-Specific Data Machine accuracy: VDI/DGQ 3441 Media Coolant type/content: Emulsion (internal & external) / approx. 1100L Coolant unit: Knoll with fleece filter 30, 40, 50 bar via M command

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
