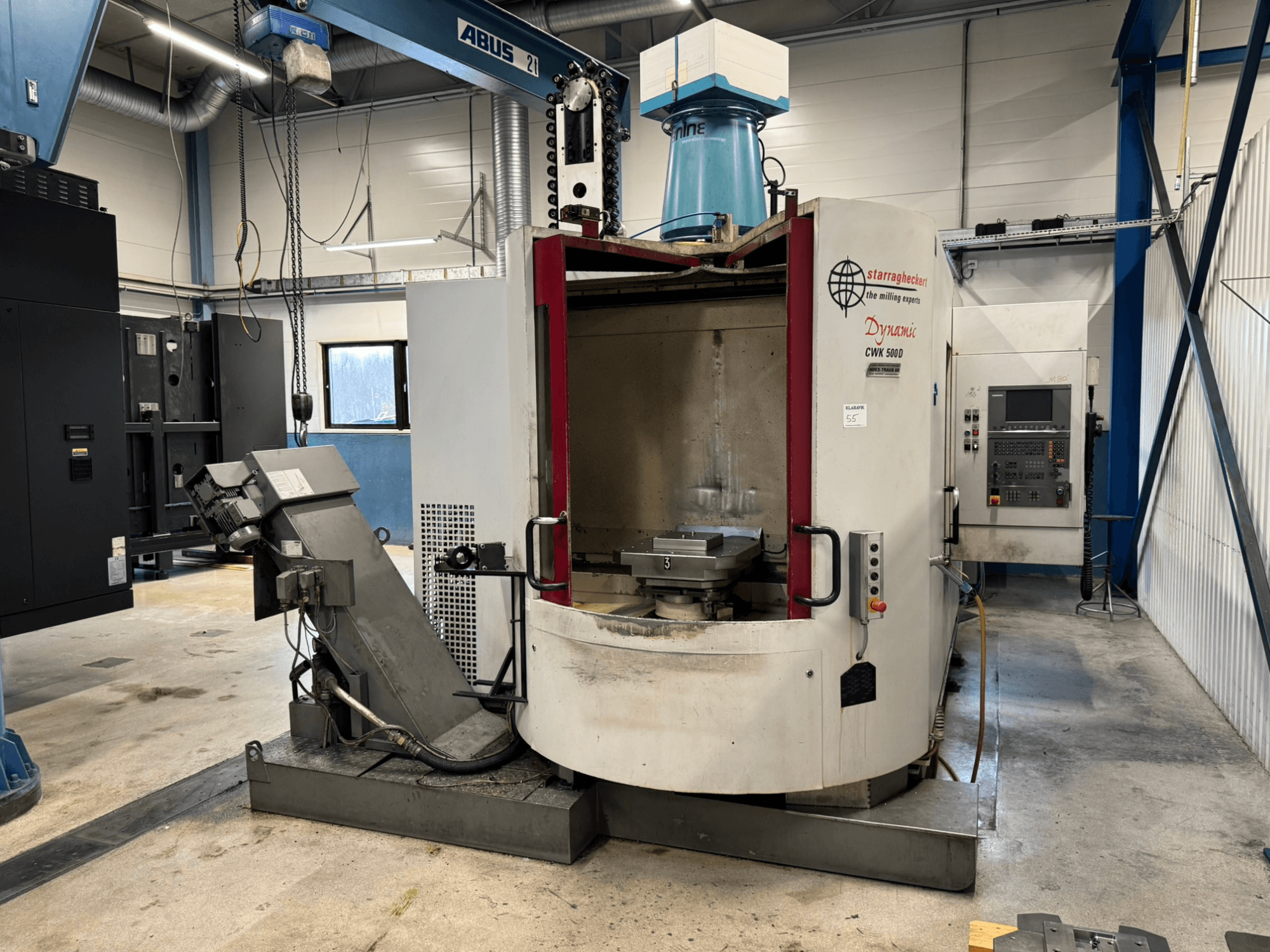

This 4-axis Starrag Heckert CWK500D was manufactured in 2002. It features an impressive X-axis travel of 750 mm, Y-axis travel of 750 mm, and Z-axis travel of 700 mm. The machine includes a robust pallet size of 500 × 630 mm and a maximum pallet load of 500 kg. If you are looking to get high-quality machining capabilities, consider the Starrag Heckert CWK500D horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: Starrag Heckert
- year: 2002
- MODEL: CWK500D
- application type: Milling
- Location: Sweden
- machine type: Horizontal Machining Centre
Technical Information - Starrag Heckert CWK500D
Dimensions
- Machine Height: 3300 mm
- Machine Length: 4850 mm
- Machine Weight: 15000 kg
- Table Width: 4000 mm
Movement
- Number of Axes: 4
- X-axis Travel: 750 mm
- Y-axis Travel: 750 mm
- Z-axis Travel: 700 mm
Additional Information
B-Axis: 360° continuous rotation with a max speed of 25 rpm; Indexing time (90°) approx. 1.2 sec
Rapid Traverse: 40 m/min
Pallet Size: 500 x 500 mm and 500 x 630 mm
Max Pallet Load (centered): 500 kg
Automatic Pallet Changer: 2 pallets with a pallet change time of approx. 9 sec
Tool Magazine (Chain Magazine): 60 tool positions
Max tool diameter: 160 mm (with free adjacent pockets)
Max tool diameter: 85 mm (with adjacent pockets occupied)
Max tool length: 400 mm
Max tool weight: 10 kg
Spindle Speed: up to 10000 rpm
Power: up to 37 kW
Torque: up to 350 Nm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
