STAMA MC 726
STAMA - MC 726
2006
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- STAMA MC 726

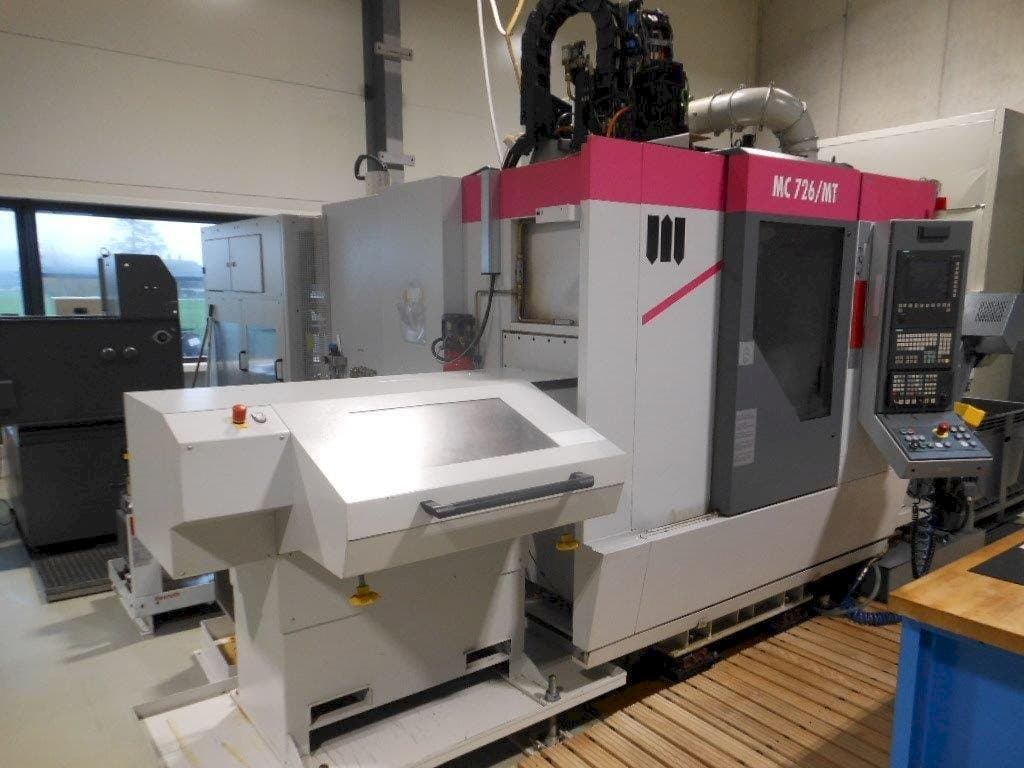

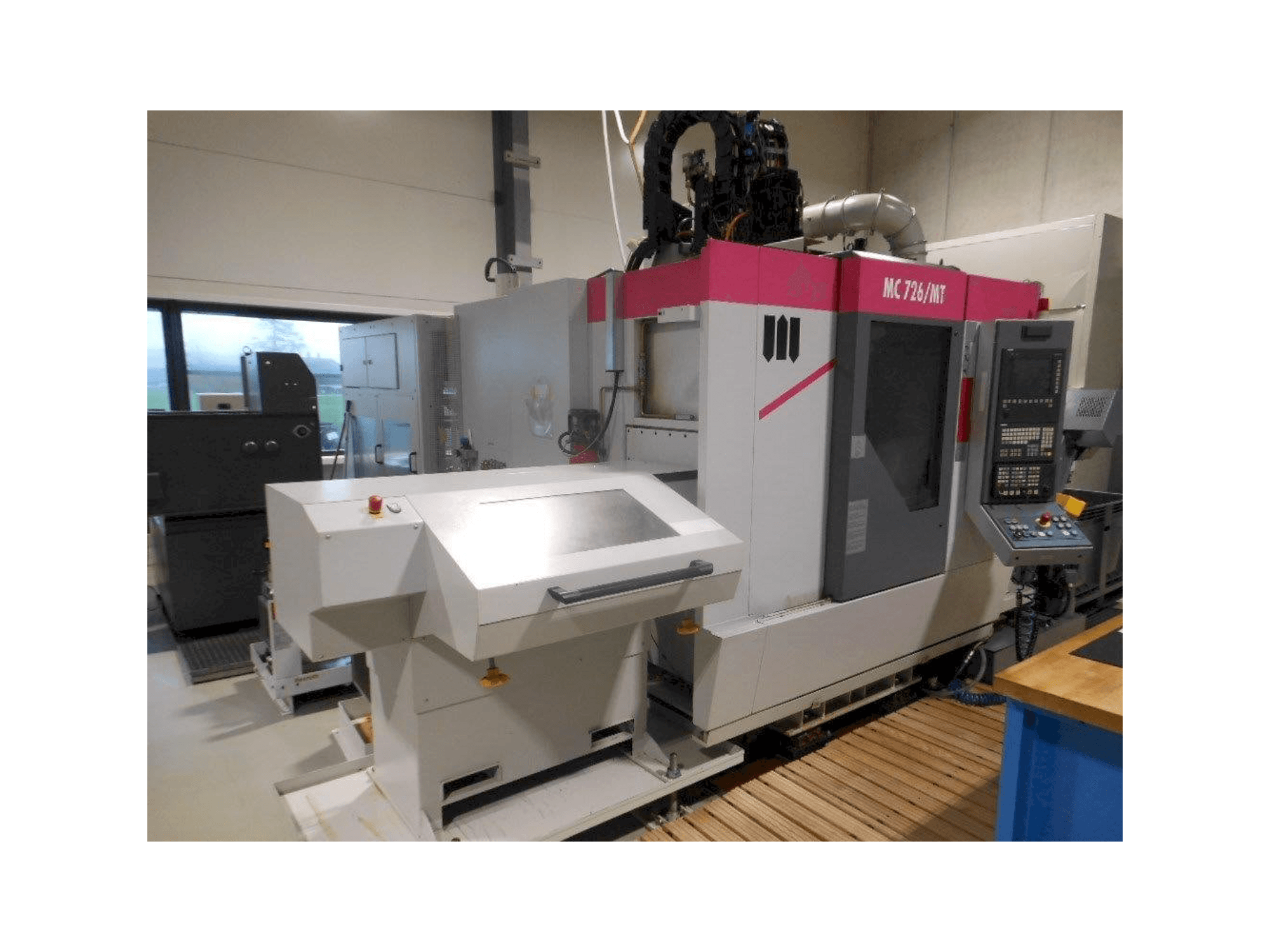

This STAMA MC 726 multitasking lathe milling-turning center was manufactured in Germany in the year 2006. This 7 axis machine is operated through a SIEMENS SINUMERIK control unit. It works with a spindle speed range 36-12000 rpm. This machine includes several options and additional equipment as a 3D probe and a bar feeder. Its PCU was changed and it had a major maintenance in 2018.
Overview
- brand: STAMA
- year: 2006
- MODEL: MC 726
- application type: Turning
- Location: Switzerland
- machine type: Milling Machine
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: CH-TUR-STA-2006-00001
Technical Information
General Data
- Measurements width: 6400 mm
- Measurements depth: 7200 mm
- Measurements height: 3300 mm
- Machine weight: 7000 kg
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK
Main drive
- Number of spindles: 2
- Spindle speed range: 36-12000 1/MIN
- Drilling depth: 36 mm
- Number of axis: 7
Movement
- X-AXIS Movement: 500 MM
- X-AXIS Feed Force: 4000 n
- X-AXIS Rapid traverse: 60 m/min
- Y-AXIS Movement: 380 MM
- Y-AXIS Feed Force: 4000 n
- Y-AXIS Rapid traverse: 60 m/min
- Z-AXIS Movement: 360 MM
- Z-AXIS Feed Force: 8000 n
- Z-AXIS Rapid traverse: 60 m/min
Turret
- Number of tool slots: 42+90
Tools
- Max tool length: 250 mm
- Type of tool holder: hsk63
Media
- Main electronic connection: 400 v 50 hz
- Power consumption: 60 kw
Additional Equipment
- - 3D probe
- - Bar feeder 1m
- - Blum laser
- - Additional magazine
- - Hainbuch chuck and various collets
Additional Information
- Technical Machine Benefits:
- - Spindle bearing 65 mm
- - Max. Torque 45 nm
- - Pcu changed in 2018
- - New cooling unit for control cabinet
- - Baluff system for tool data / holder data
- - Artis breakage monitoring
- - Oil extraction
- - Extinguishing system from kraft&bauer
- Qualitative Machine Benefits:
- - Major maintenance in 2018
- - Service of the hydraulic unit
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
