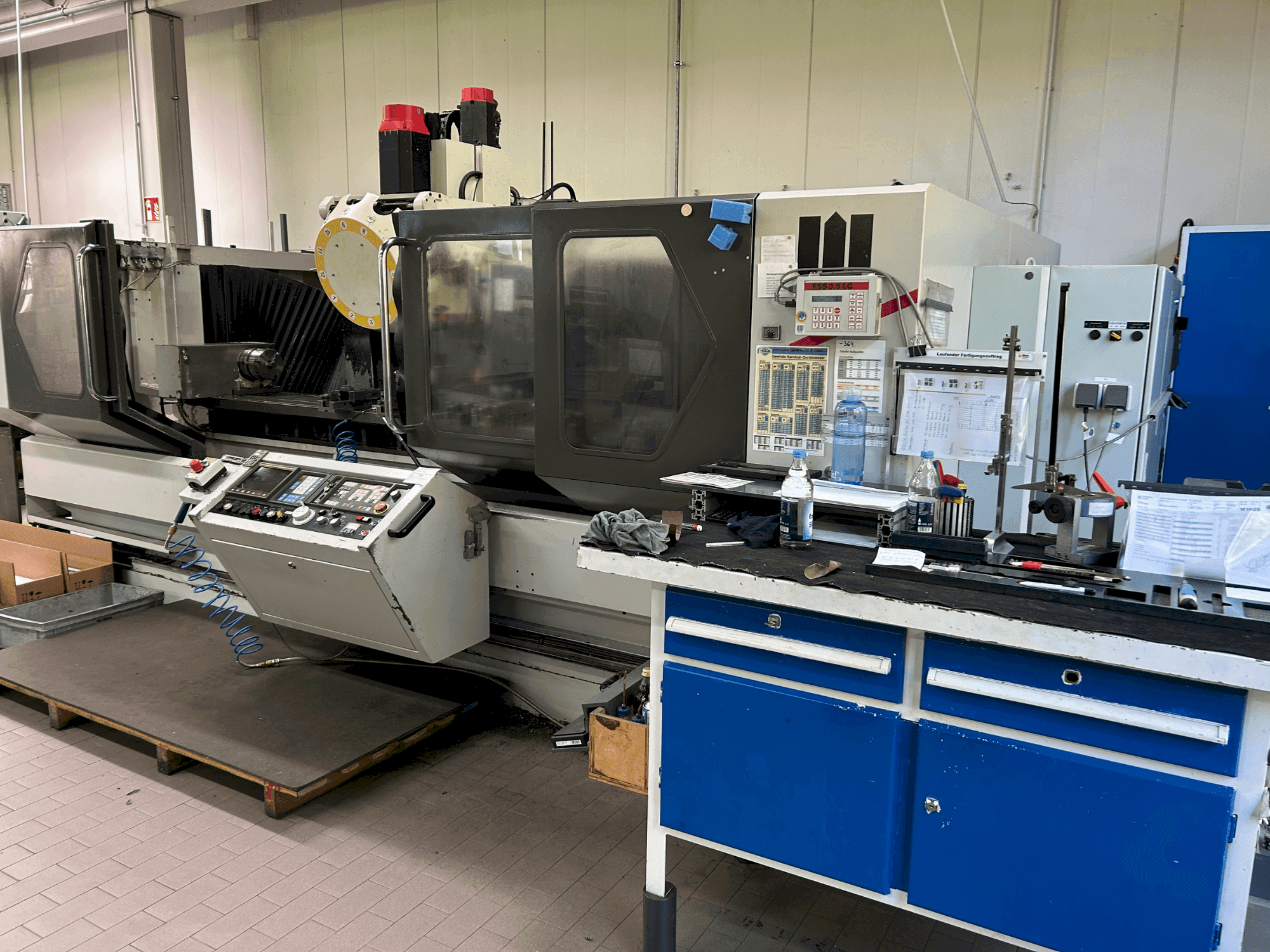

STAMA - MC 520DE-MIL-STA-1994-00001

Additional equipment

• Tool Magazine: 60 SK40 positions with vertical chain and double gripper / Drilling Capacity in Steel: 25 mm / Tapping Capacity in Steel: M24 / Milling Capacity in Steel (SK 30): 150 cm³/min / Milling Capacity in Steel (SK 40): 180 cm³/min / Milling Capacity in Aluminum: 500 cm³/min
• Chip Conveyor: Scraper belt / Flushing Gun for Chip Flushing / Coolant/Air Blast Switching: External via M function / Infrared Measuring Probe: Heidenhain TS 649 DMG / 3D quickSET: Toolkit for checking and correction of kinematic accuracy

Machine Benefits

Technical Machine Benefits

• User interface: smart. Nc ergoline® control with 19" screen
• Ac drive motor: 5. 5 kw at 100% duty cycle / maximum torque: 47 nm / spindle speed: 45 - 6000 rpm / optional spindle speed: 100 - 10000 rpm
• Working area height from table to spindle nose: 560 mm / clamping area of coordinate table: 1500 / 2100 / 3000 x 430 mm / permissible table load: 1200 / 1600 / 1600 kp / swivel rotary table capability: clamping surface d 630 x 500 with swivel range -5 to +110°, 360° rotary axis
• Number of t-slots: 3 / t-slot size: 14 h12 / location holes: 5 / 8 / 11 x Ø 16 h7
• Rapid traverse (x-y axis): 20 m/min / rapid traverse (z axis): 20 m/min / working feed rate: 1 - 5000 mm/min / measuring system: absolute encoder / positioning resolution: 0. 001mm / positioning tolerance: +/- 0. 01 mm / repeatability: +/- 0. 005mm
• Operating mode 4: process monitoring during production / active cooling unit for control cabinet: recommended for ambient temperatures from 35°c to max. 50°c / 4-color signal light: red, yellow, green, blue indicators / cabin roof: bellows, with crane loading possible by manually opening the middle roof segment
