SPINNER U5-1530

Photo Gallery

SPINNER - U5-1530DE-MIL-SPI-2023-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER U5-1530 For sale | gindumac.com

Show in original language

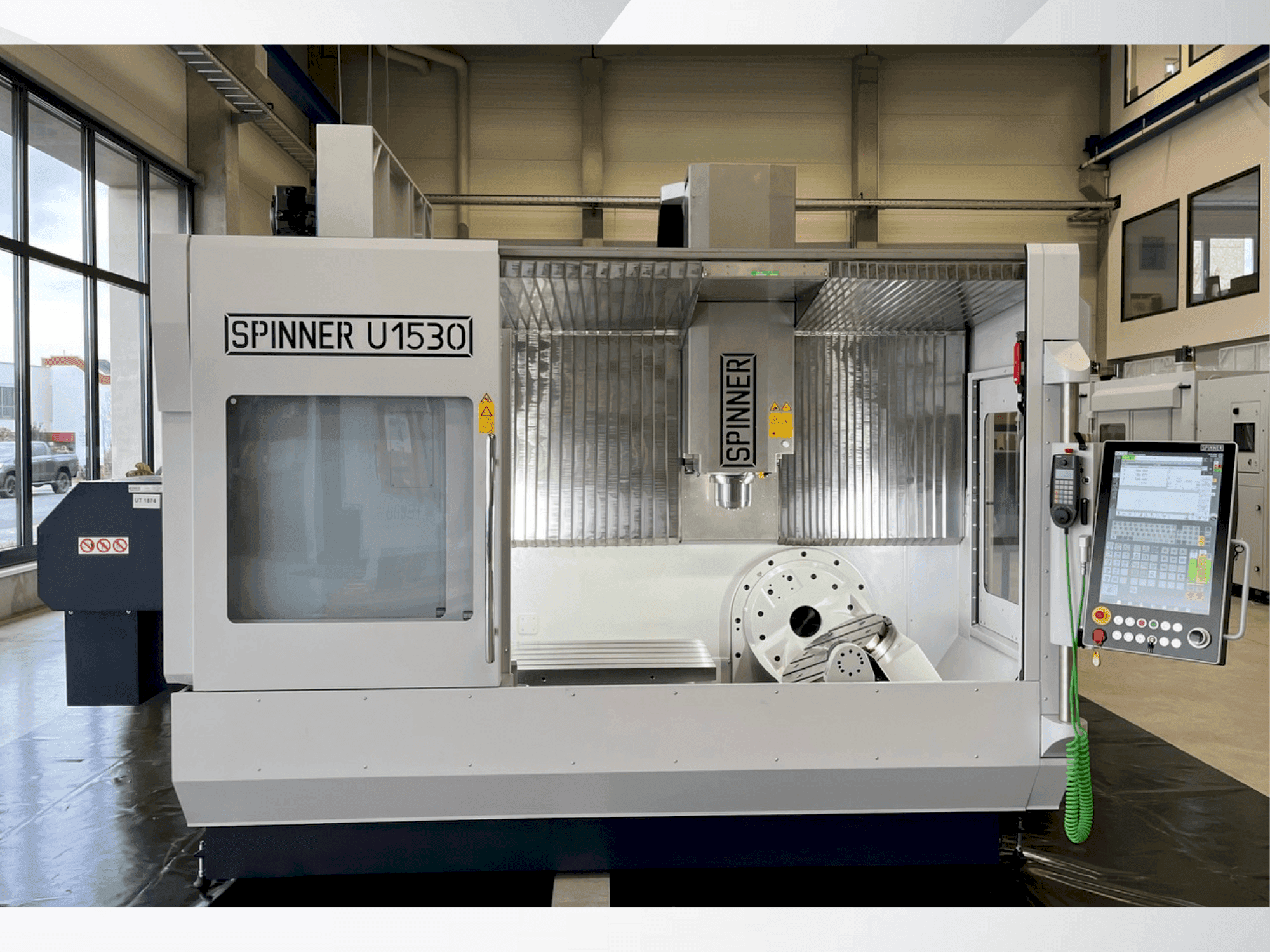

This 5-axis SPINNER U5-1530 vertical machining center was manufactured in 2023. It features a SIEMENS sinumerik one control, Spios 24 touch, a combination rotary tilting table, and a fixed table. Equipped with a Blum spindle probe TC52, high pressure through spindle, and a chip conveyor. A great opportunity to buy this SPINNER U5-1530 vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

brand: SPINNER
year: 2023
MODEL: U5-1530
production hours: 47
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - SPINNER U5-1530

Control Unit

Model: Sinumerik one - Spios 24 touch
Brand: SIEMENS

Main drive

Spindle speed range: 12000 rpm 1/MIN
Tool taper: SK 40
Number of axis: 5

Movement

X-AXIS Movement: 1530 MM
Y-AXIS Movement: 530 MM
Z-AXIS Movement: 465 MM

Table

Table load: 500 kg

Media

Chip conveyor: Yes

Additional Information

Additional equipment

Number of Tools: 54 / IKZ: Yes (22 bar)
Combination rotary tilting table and fixed table / Blow air on the spindle stock
Blum spindle probe TC52 / 2-axis rotary tilting table: Diameter 650 mm / Swiveling Range: B = 5°(-90°)/+110°
Fixed table on the left in the work area: Clamping device top plate 160 mm removable
Direct measuring systems in X/Y/Z, B/C
P-valve for zero point turbo spark / Blowing air on the headstock / Robot flap on the right
UNIROB universal robot interface / BLUM spindle probe TC52 / GRESSEL zero-point clamping package
SW package ONE-Dyn. Operate 3A-Fr. 3D simulation / Cycle 996 for kinematics measurement
DFX-Reader

Machine Benefits

Qualitative Machine Benefits

Improved machining accuracy and surface finish
Reliable operations with advanced control system from siemens
Advanced control system with siemens sinumerik one for precise operations
Enhanced automation capabilities with robot interface and flap

Technical Machine Benefits

High precision with blum spindle probe tc52
Efficient chip removal with chip conveyor
Enhanced cooling performance with high pressure through spindle (22 bar)
Large tool capacity (54 tools with sk40 holder)
Direct measuring systems in all axes for high precision

Extra Information

Machine has preparation for automation: - Rotary feed-through in the table - Robot flap - Corresponding control technology. // Manufactuirer warranty until 31.12.2024

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
