SKODA HCW 2-200 DUO

Photo Gallery

SKODA - HCW 2-200 DUOPL-BOR-SKO-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

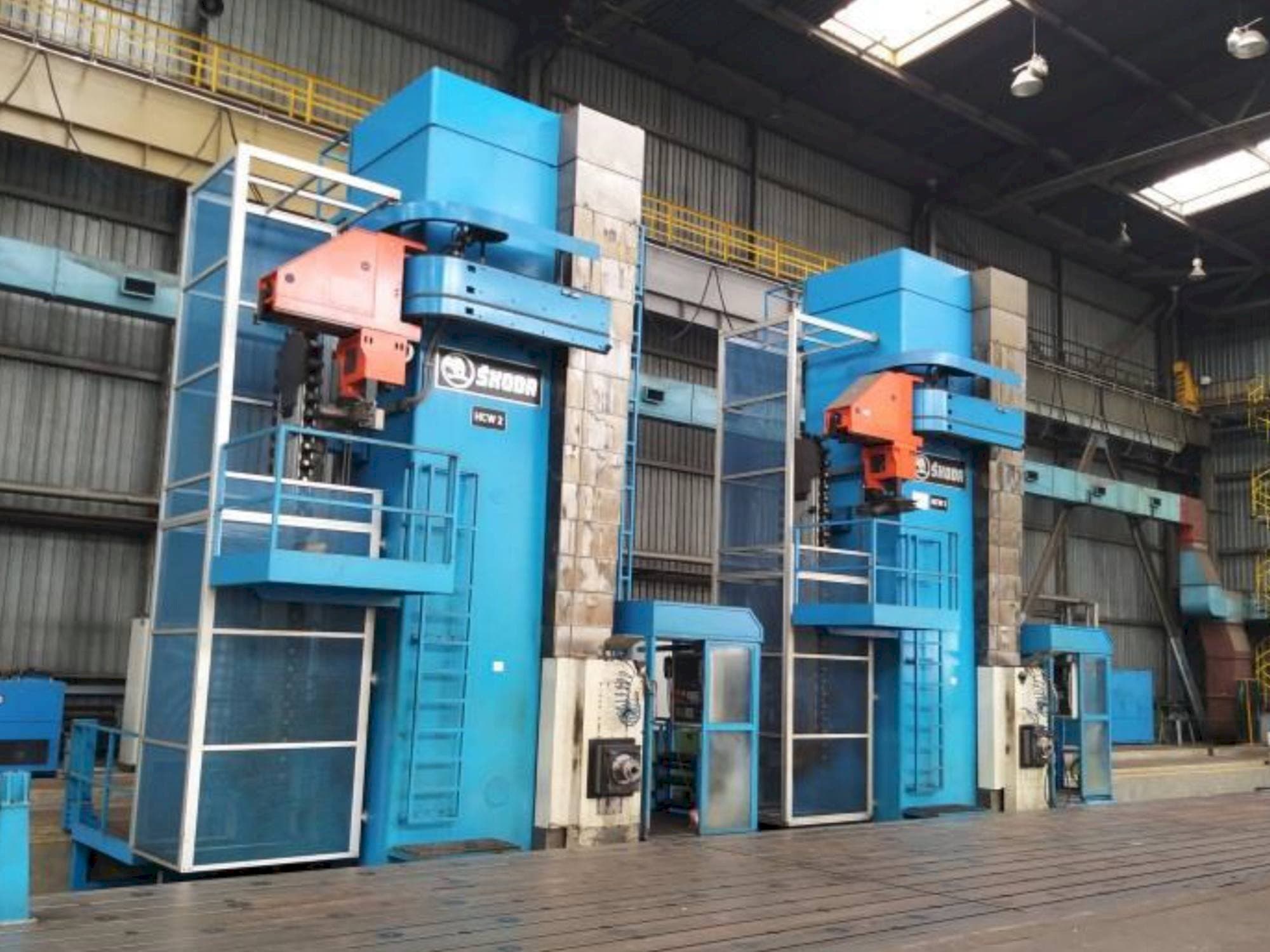

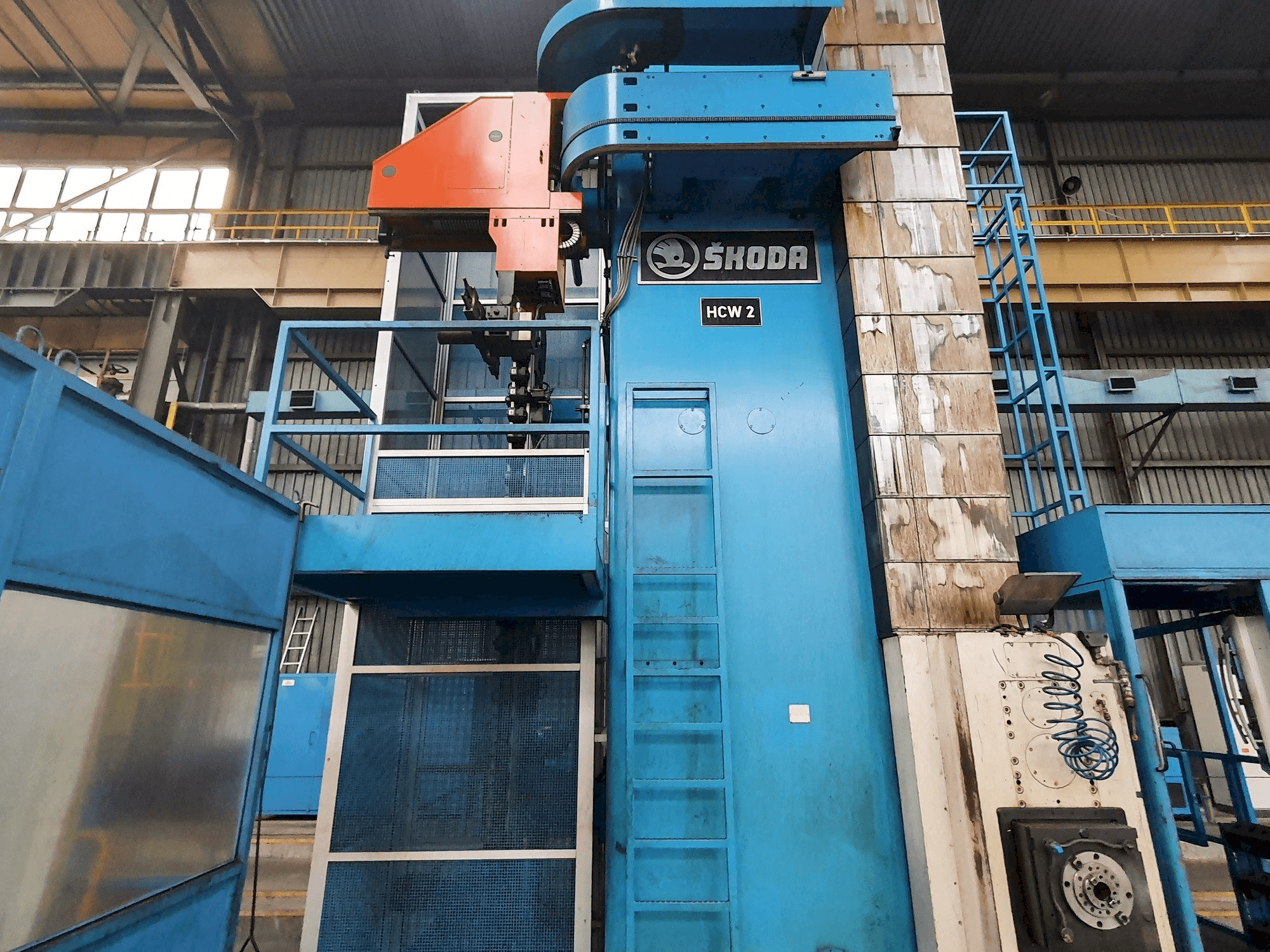

SKODA HCW 2-200 DUO Boring Machine

Show in original language

This SKODA HCW 2-200 DUO Boring Machine was made in the year 2009. It is operated through a SINUMERYC 840 D control unit. This 5 axis drilling machine operates with a spindle speed up to 2500 rpm. This machine has five interchangeable heads.

Overview

brand: SKODA
year: 2009
MODEL: HCW 2-200 DUO
application type: Other Machine Tools
Location: Poland
machine type: Boring Machine (Metal)
control unit brand: SIEMENS

Technical Information - SKODA HCW 2-200 DUO

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 840 D

Dimensions

Machine Depth: 8000 mm
Machine Height: 50000 mm
Table Load: 40000 kg

Movement

Z-axis Travel: 1300 mm

Technical Specification

Spindle Speed: 2500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Five interchangeable heads: one five-plane, a table, two motors for torsion axles and two boring discs.
Max. Convergence of columns - 7. 000 mm
Max. Column travel – 32. 000 mm
The total length of the bed – 35. 000 mm
Each of the two columns has its own tool magazine for 60 tools.

Technical Machine Benefits

Spindle taper - iso 50
Accuracy of manufactured elements - it6
Range of working feeds - 1 ÷ 10. 000 mm / min
Spindle stroke in the w axis: 1. 200 mm
Vertical stroke in the y axis: 4. 500 mm
Cross travel in the x axis: - 25. 000 mm
Max. Table no. 2 load: 70. 000 kg
Max workpiece dimensions: (l x d x h) 30. 000 x 5. 200 x 4. 200 mm
No. 1 table dimension: 2. 500 x 3. 000 mm
No. 2 table dimension - 3. 000 x 3. 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
