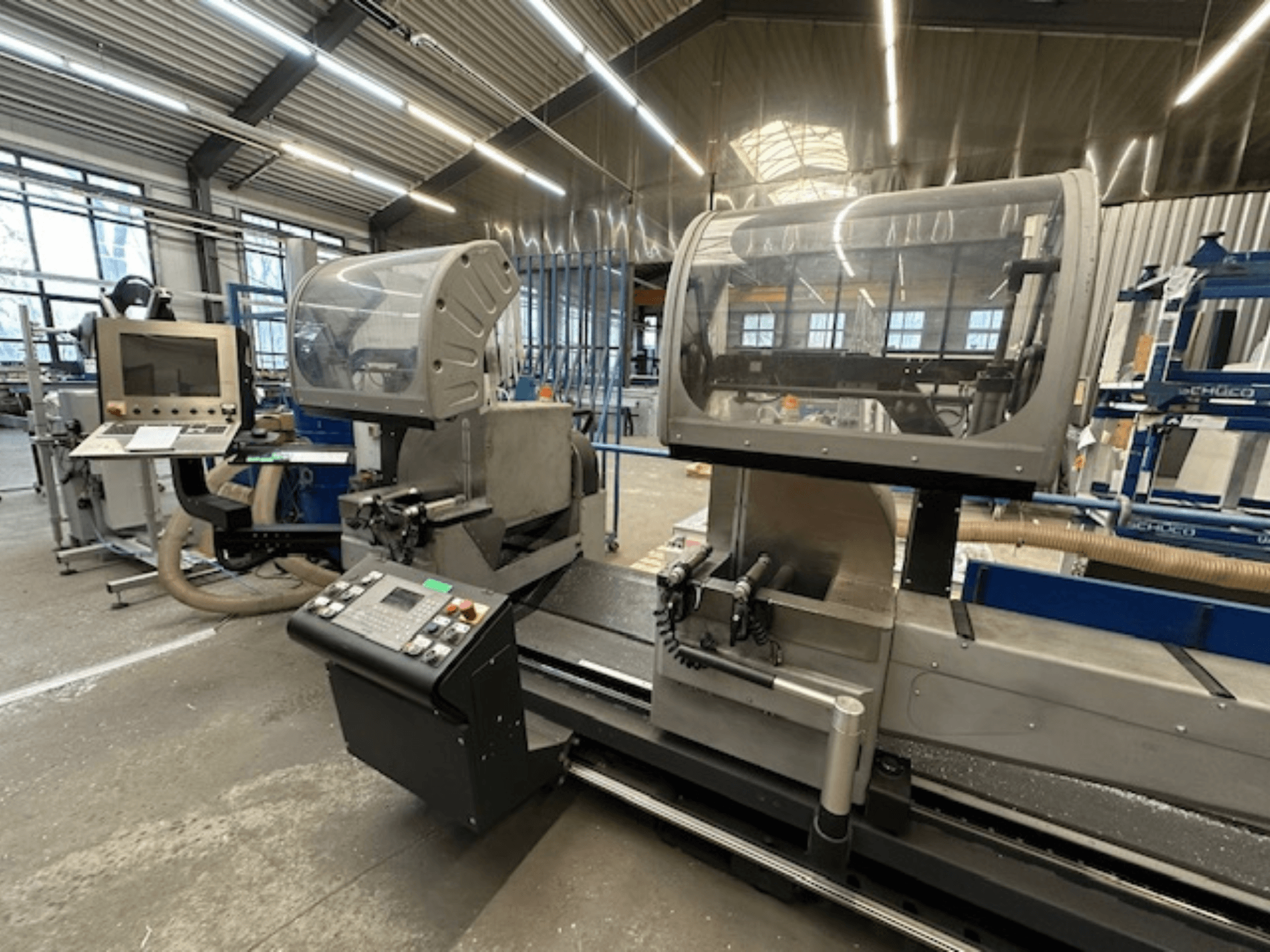

SCHÜCO - PDG E CUTDE-SAW-SCH-2009-00001

• Motor speed: 2410 min⁻¹

• Max saw blade diameter: 600 mm

• Motor type: M 100, 4 kW

• Electrical connection: 3~ 400 V / 50 Hz / 7.7 A

• machinable material: Aluminium

• Height [mm]: 1870

• Depth [mm]: 2100

• Compressed air: 7 bar

• Coverage: 53

• Consumption unit: NL/cycle

• Locating hole: 32 mm

• Control voltage type: DC

• Width [mm]: 7125

• Supply voltage (machine): 400 V

• Voltage type (machine): AC

• Frequency (machine): 50

• Motor output: 2 x 2.2 kW

• Control voltage: 24 V

• Max. Cutting length: 5000 mm

• Min. cutting length: 350 mm

• Min. cutting length with software: 270 mm

• Execution: 5 m

• Angle setting: Via servo motors

• Tilt angle (outside): up to 20°

• Tilt angle (inside): up to 45°

Additional equipment

• Discharge conveyor belt (Abtransportband)

• Extraction system (Absauganlage), brand: Emmegi
