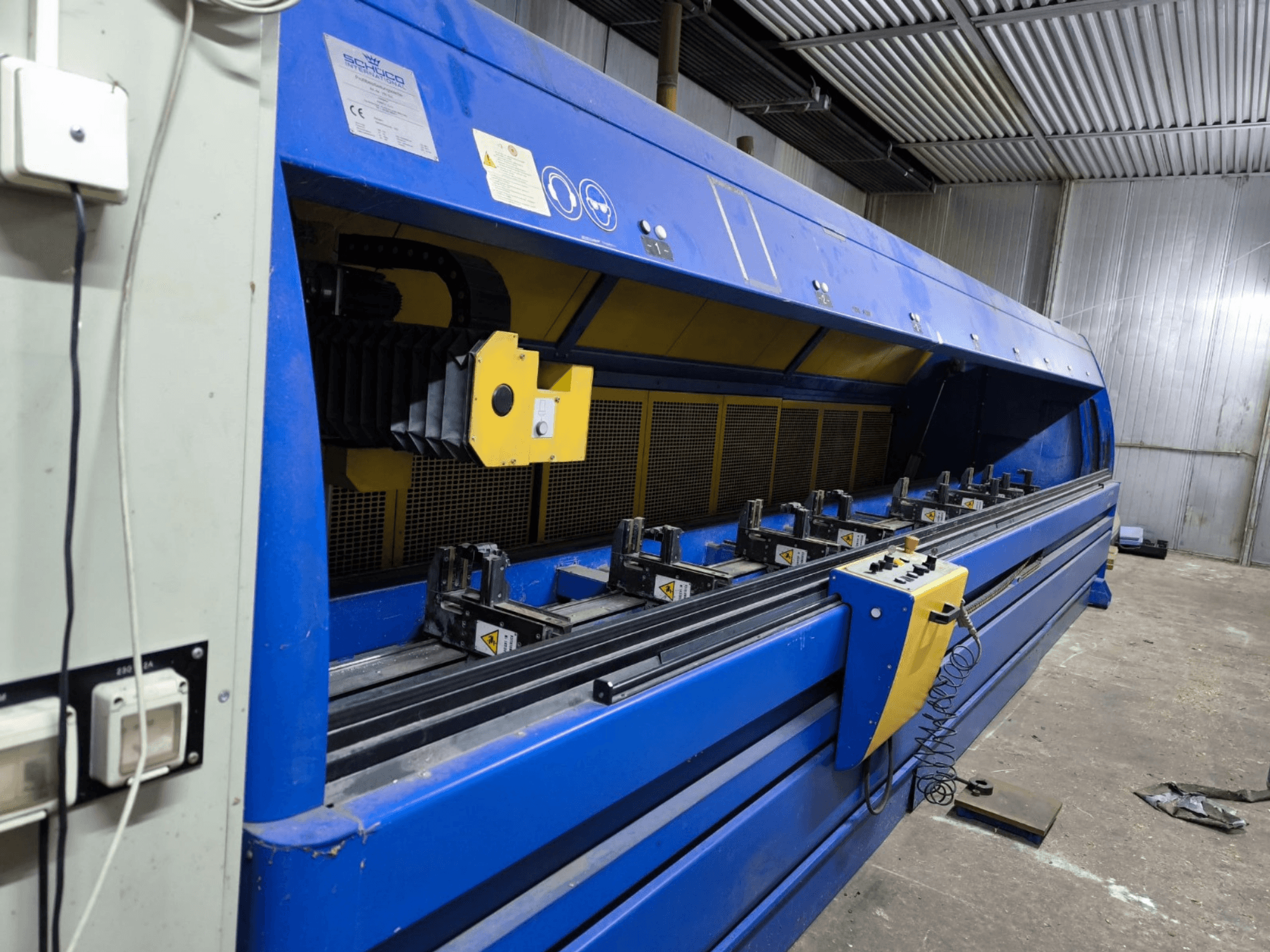

This 4-axis SCHÜCO Profilbearbeitungscenter was manufactured in 2001. It features a travel range of 6,300 x 600 x 405 mm, continuous 180° A-axis rotation, and a high-speed capability of 24,000 rpm. Equipped with an HSK-40E tool holder and an 8+1 tool magazine, it ensures efficient machining. Consider the opportunity to buy this SCHÜCO Profilbearbeitungscenter. Contact us for more information about this machine.
Overview
- brand: SCHÜCO
- year: 2001
- MODEL: Profilbearbeitungscenter
- application type: Other Machine Tools
- Location: Bulgaria
- machine type: Machine Tool
Technical Information - SCHÜCO Profilbearbeitungscenter
Dimensions
- Machine Depth: 2235 mm
- Machine Height: 2065 mm
- Machine Length: 8525 mm
- Machine Weight: 6000 kg
Movement
- X-axis Travel: 6300 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 405 mm
Additional Information
Voltage: 380 V, 50 Hz
Power Consumption: 21 kW
Operating Pressure: 0.8 MPa
Speed: 24000 rpm
Tool Holder: HSK-40E
Tool Dimensions Cutter/Drill: 050 / 130 mm
Diameter of Side Milling Cutter: 200 mm
Tool Magazine: 8 + 1
Quick-change System: Available
A-axis: 180° Continuous
Traversing Speed X / Y / Z: 80 / 60 / 20 m/min A-axis
Speed: 10800 rpm
Number of Clamping Blocks: 8
Positioning of Clamping Blocks: Automatic
Profile Clamping: Horizontal
Air Consumption: Max. 200 NL/min
Operating Pressure: 6 - 8 bar
Cooling Unit with Temperature Control: Available
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
