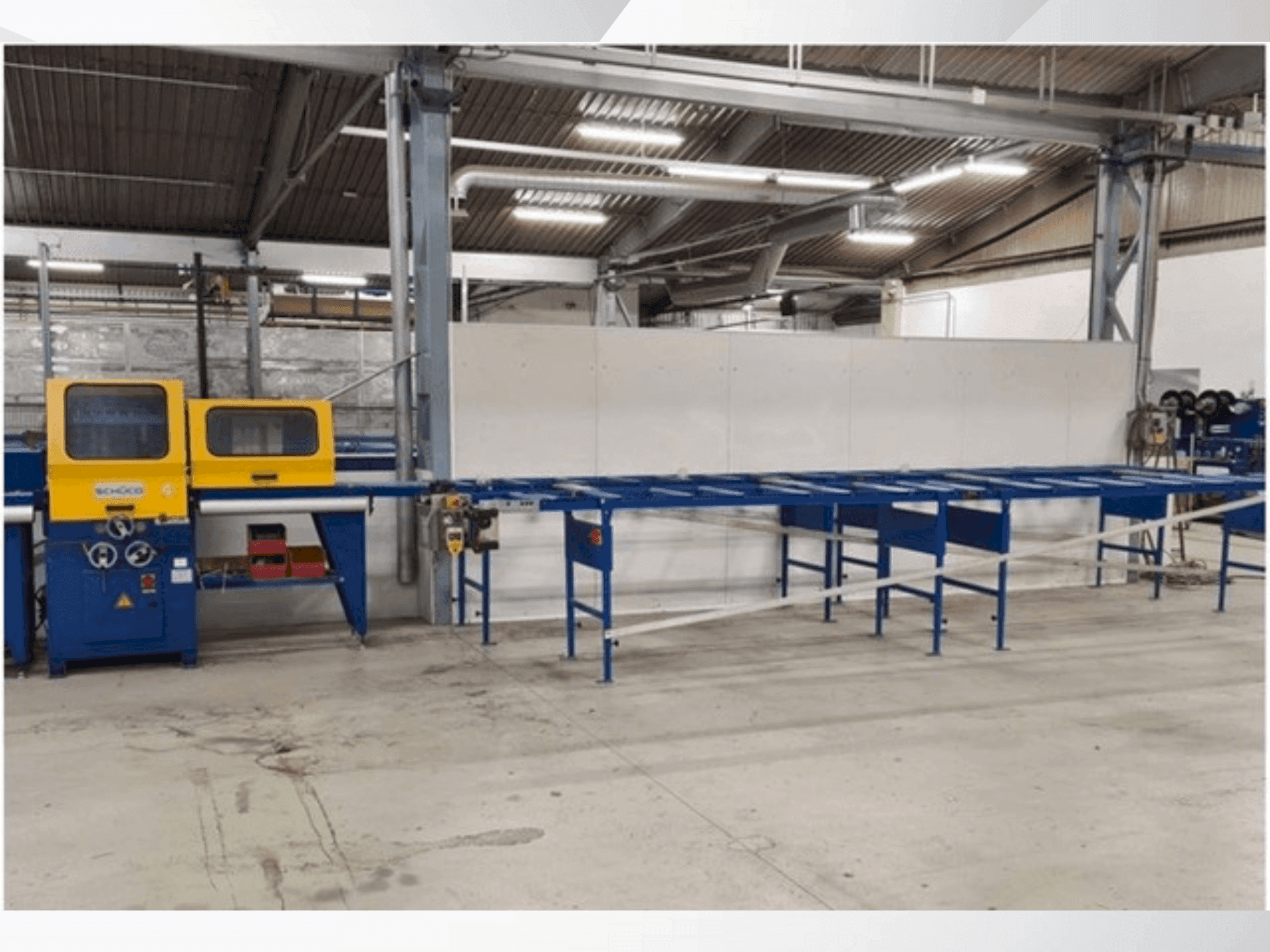

SCHÜCO - ISOMAT 5HU-OTH-SCH-2009-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Precise type: 400v / 50hz / 3. 0 amp / 1. 1kw
  • - The machine is designed for rolling the schüco aws / ads system profile components together with the insulating bars.
  • - Capable of rolling down angles on various profiles from schüco façade and skylight constructions.
  • - Equipped with 10 lateral guide rollers and space for adding 2 more.
  • - Features a quick release mechanism on all guide rollers, 4 drive shafts for pressure rollers, and 2 drive shafts for guide rollers.
  • - Can process profile depths up to 250 mm, profile heights up to 400 mm, and distance between insulating bars max. 300 mm.
  • - Includes ergonomically designed operating controls and an electrical control panel.
  • - Safety features include a safety cage and guide roller assembly as a single unit, designed for optimal safety and to ensure the profiles are kept straight.
  • - Paint finish options: ral 9006 (white aluminium), ral 7016 (anthracite grey)
  • - The safety cage is 800 mm long on a roller track 1000 mm long.
• Qualitative Machine Benefits:
  • - The guide roller assembly is 1700 mm long.

Extra information

• - Machine still under power
