➤ Used Romi GL 350B For Sale | gindumac.com

Show in original language

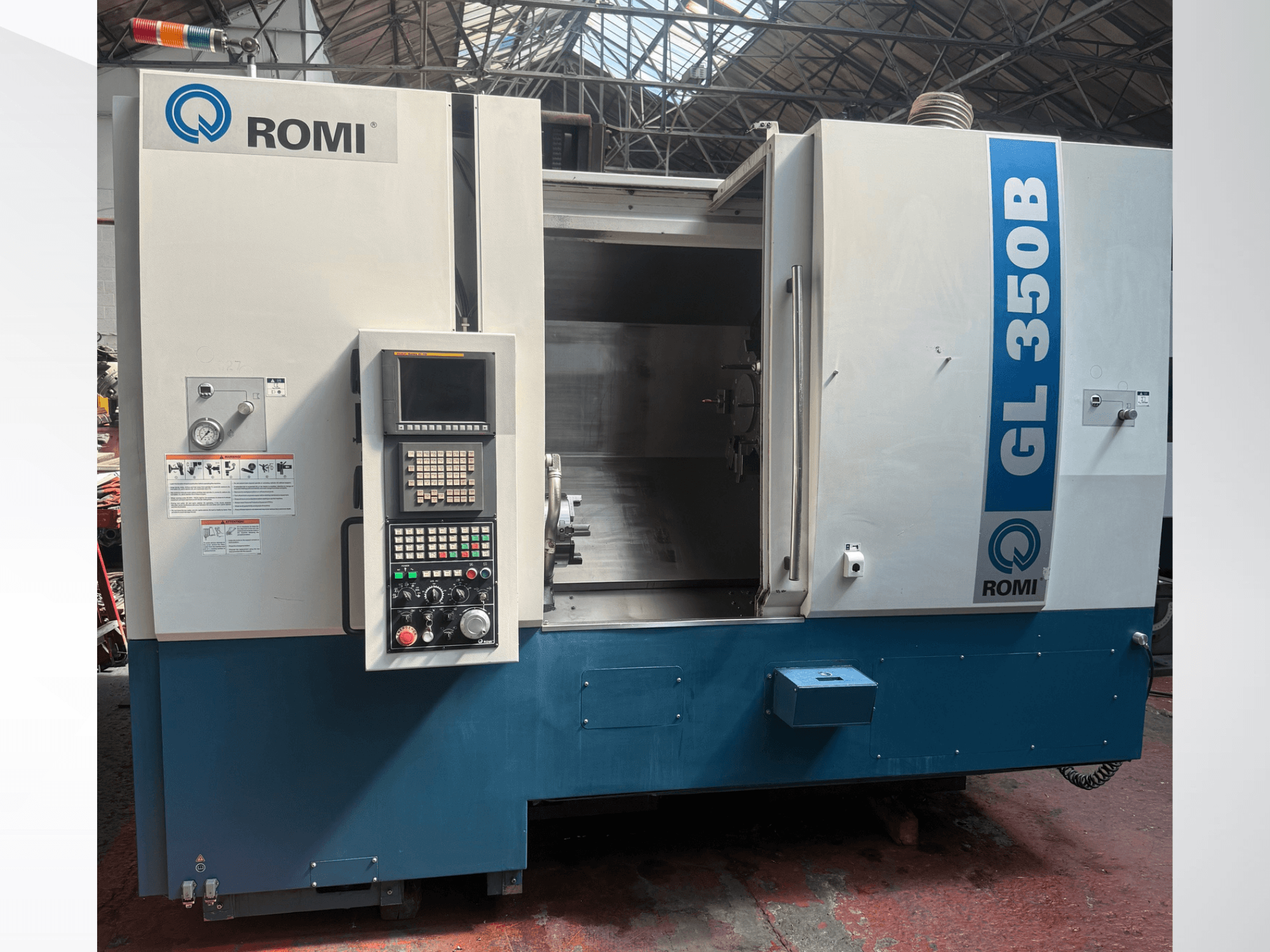

This 6-axis Romi GL 350B CNC Horizontal Turn-Mill Center was manufactured in 2014. It features a maximum workpiece diameter of 350 mm and a main spindle speed of 4,000 rpm. The machine is equipped with a counter spindle with a speed range of 6 – 6,000 rpm, driven tools, Y-axis capability, and a 12-position BMT-65 turret. The machine configuration includes controlled axes X, Y, Z, A, B and C, allowing complex turn-mill operations. If you are looking to achieve high-quality turning and milling capabilities, consider the Romi GL 350B machine we have for sale. Contact us for further details.

Overview

brand: Romi
year: 2014
MODEL: GL 350B
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Romi GL 350B

Control Unit

Control Brand: FANUC
Control Model: 0i-TD

Dimensions

Machine Weight: 9600 kg

Movement

Number of Axes: 6
X-axis Travel: 243 mm
Y-axis Travel: 50 mm
Z-axis Travel: 740 mm

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Speed: 4000 RPM

Additional Information

Axes:
- Sub-spindle travel (B-axis): 830 mm

Capacity:
- Max. workpiece diameter: 350 mm
- Max. bar passage: Ø 64 mm
Main spindle:
- Spindle nose: A2-8
Counter spindle:
- Included
- Speed: 6–6,000 rpm
- Spindle nose: A2-5
Turret:
- 12 positions
- Tool attachment/interface: BMT-65
Dimensions :
- Machine depth: 2,080 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
