➤ Used Quick-Tech i60 twin For Sale | gindumac.com

Show in original language

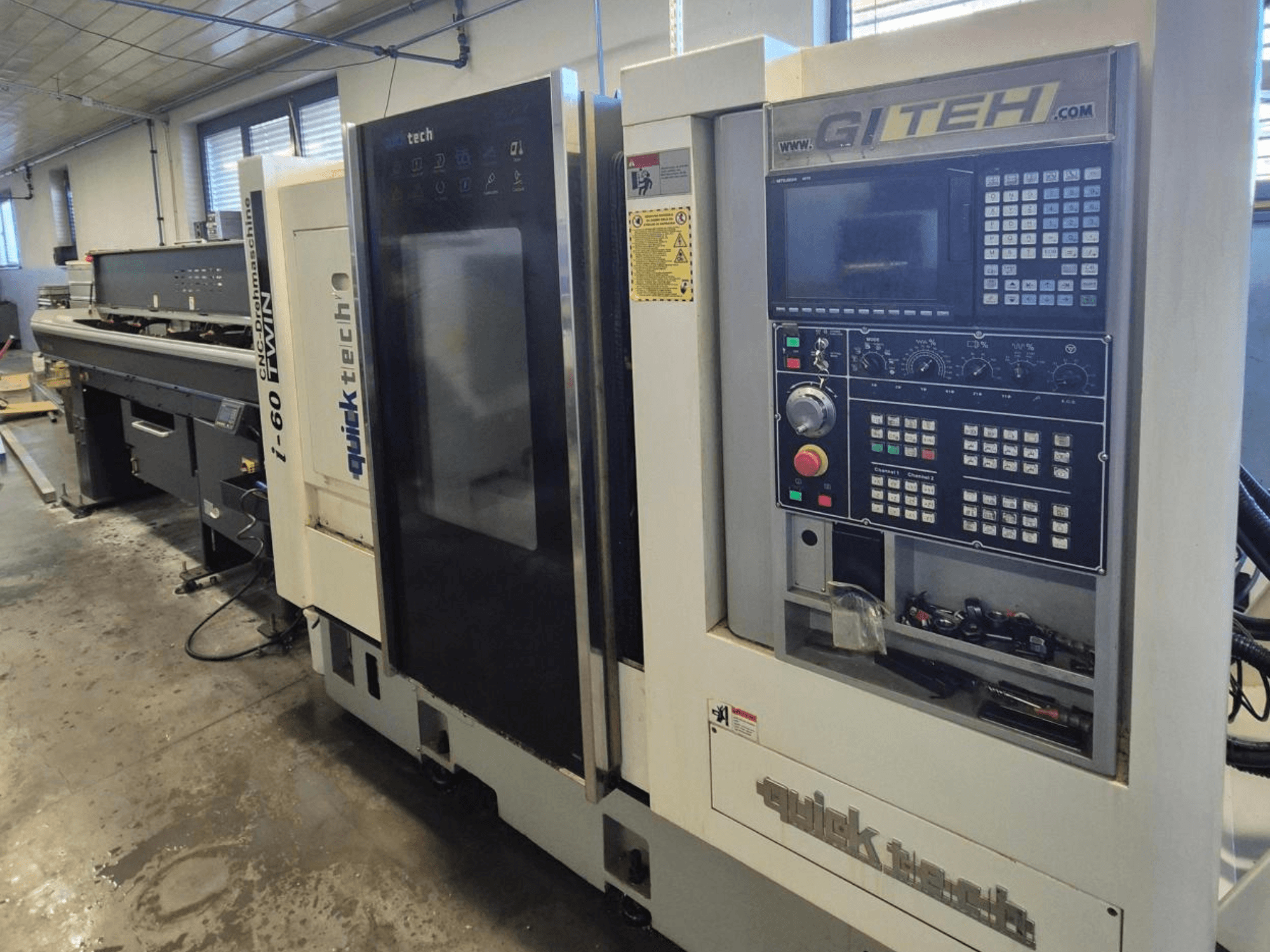

This 6-axis Quick-Tech i60 twin was manufactured in 2016, featuring a CNC turning center with B-axis and driven tools. It includes a main spindle bore of 60 mm, sub spindle bore of 42 mm, and a maximum turning length of 300 mm. The machine offers 4-axis simultaneous machining, full axis programming, and a Mitsubishi M70 control system. Consider the opportunity to buy this Quick-Tech i60 twin horizontal turning machine. Contact us for more information about this machine.

Overview

brand: Quick-Tech
year: 2016
MODEL: i60 twin
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
control unit brand: MITSUBISHI

Technical Information - Quick-Tech i60 twin

Control Unit

Control Brand: MITSUBISHI
Control Model: M70

Movement

Number of Axes: 6

Technical Specification

Counter Spindle: Yes
Driven Tools: Yes
Spindle Speed: 4000 RPM

Additional Information

Main spindle bore: 60 mm
Sub spindle bore: 42 mm
Max. turning length: 300 mm

Speeds
- Main spindle: 4000 rpm
- Sub spindle: 4000 rpm
- Driven tools: 4000 rpm
Spindles
- Main spindle indexing: 0.001°
- Sub spindle indexing: 0.001°
- Hydraulic spindle brake (main & sub)
- Synchronization of spindle rotation and positioning
Tool stations
- Main spindle side: 6 external turning, 5 internal turning
- Sub spindle side: 3 external turning, 4 internal turning
- Driven tools: 12 stations
Processing capabilities
- 4-axis simultaneous machining
- Full axis programming directly from the control
- Air blow function (M-code)
- Part ejection detection
Workholding
- Main spindle chuck: Ø185 mm
- Sub spindle chuck: Ø173 mm
Machine equipment
- Machine leveling screws and plates
- LED working light
- 3-color signal tower
- Automatic central lubrication system
- Coolant tank and coolant level sensor
- High-pressure coolant pump 30–40 bar
- 380V/220V transformer
- Basic tool kit
- Operator manual, programming manual, electrical diagrams, PLC documentation
Control system: Mitsubishi M70
- 10.4” color display; MPG handwheel program check
- Absolute/incremental programming; ISO programming
- Automatic machine power-off function
- Thread cutting cycle (G92); rigid tapping
- Constant cutting speed (G96/G97)
- Production time display & part counter
- Jog movement for X, Z, Y, W axes; C1 and C2 contouring for turning/milling
- Minimum input increment: 0.001 mm
- 80 tool geometry & correction positions
- Program loading via memory card or USB; network connectivity
- Chamfer & radius programming; radius compensation
- Absolute motors (no homing required); self-diagnosis functions
- Spindle synchronization
- Thread cutting with driven tools; thread cutting on sub spindle
- Programming help functions; 2D program simulation
- PLC editing capability
- Gear cutting function included
- Driven tool orientation

Additional equipment (not part of the base machine)

Chip conveyor
Bar feeder VITO 56 (3 m)
Finished part conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
