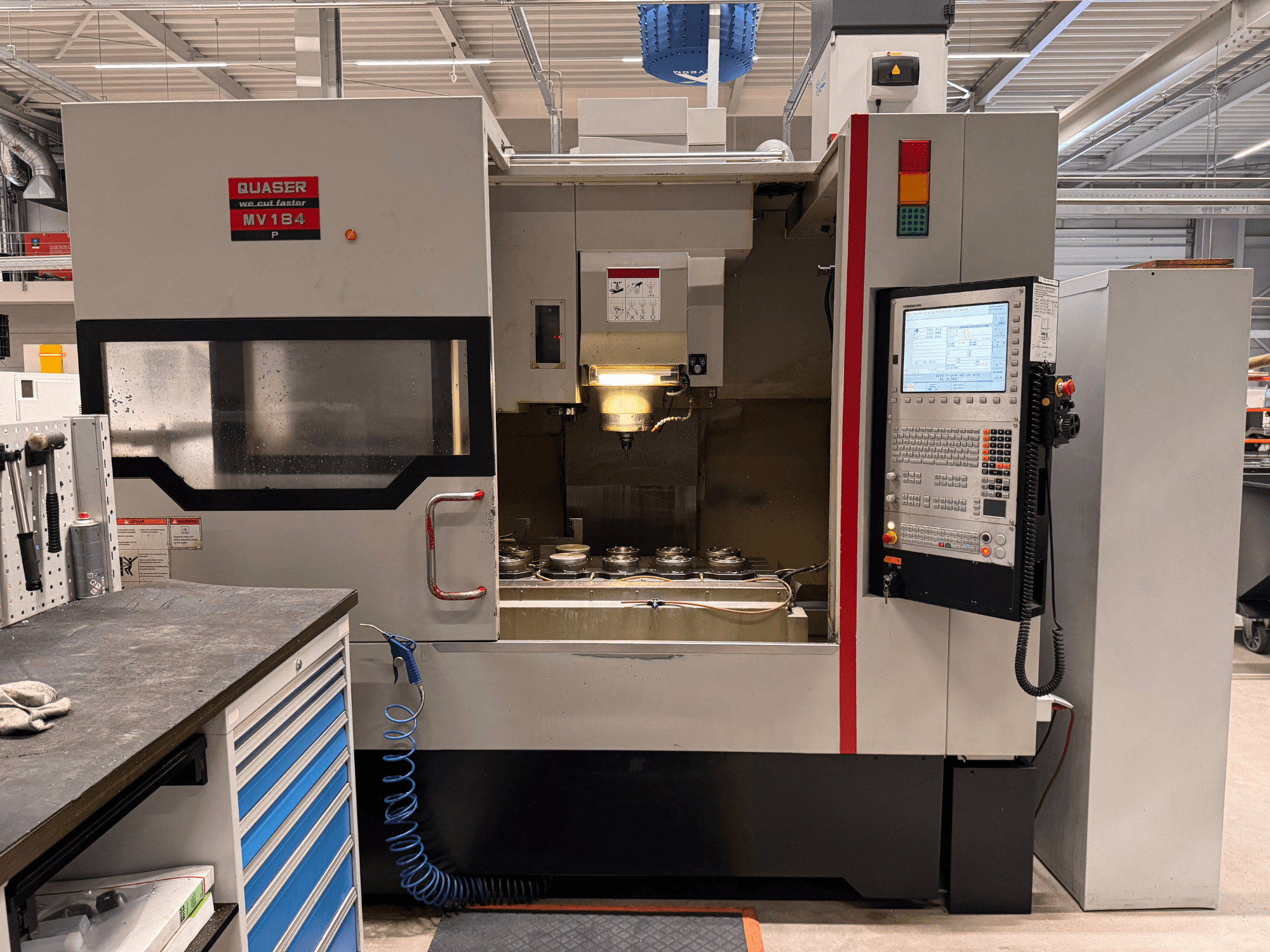

This 4-axis Quaser MV184P/12B was manufactured in 2013. It features a maximum spindle speed of 12,000 rpm and a powerful 25 kW motor. The machine includes a NC rotary table, tailstock, and advanced probing systems for enhanced precision. If you are looking to get high-quality machining capabilities, consider the Quaser MV184P/12B vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Quaser
- year: 2013
- MODEL: MV184P/12B
- production hours: 10953
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Quaser MV184P/12B
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC530
Movement
- Number of Axes: 4
- X-axis Travel: 1020 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Power: 25 kW
- Spindle Speed: 12000 RPM
Additional Information
Max. torque: 159 Nm
Additional equipment
Tool cooling 20 bar (upgrade from 8 bar) – included
Cartridge filter for nozzle and flushing system – included
NC rotary table (4th axis) Detron GV255HB with tailstock – included, remains with the machine
Infrared workpiece probe Blum TC50 – included, remains with the machine
Laser tool probe Blum N2 – included, remains with the machine
Portable handwheel (instead of standard fixed handwheel) – included
SEI CMC 2000-KP incl. Sensor J for control – included
Schunk zero-point clamping system – not included
External extraction system next to the machine – not included
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
