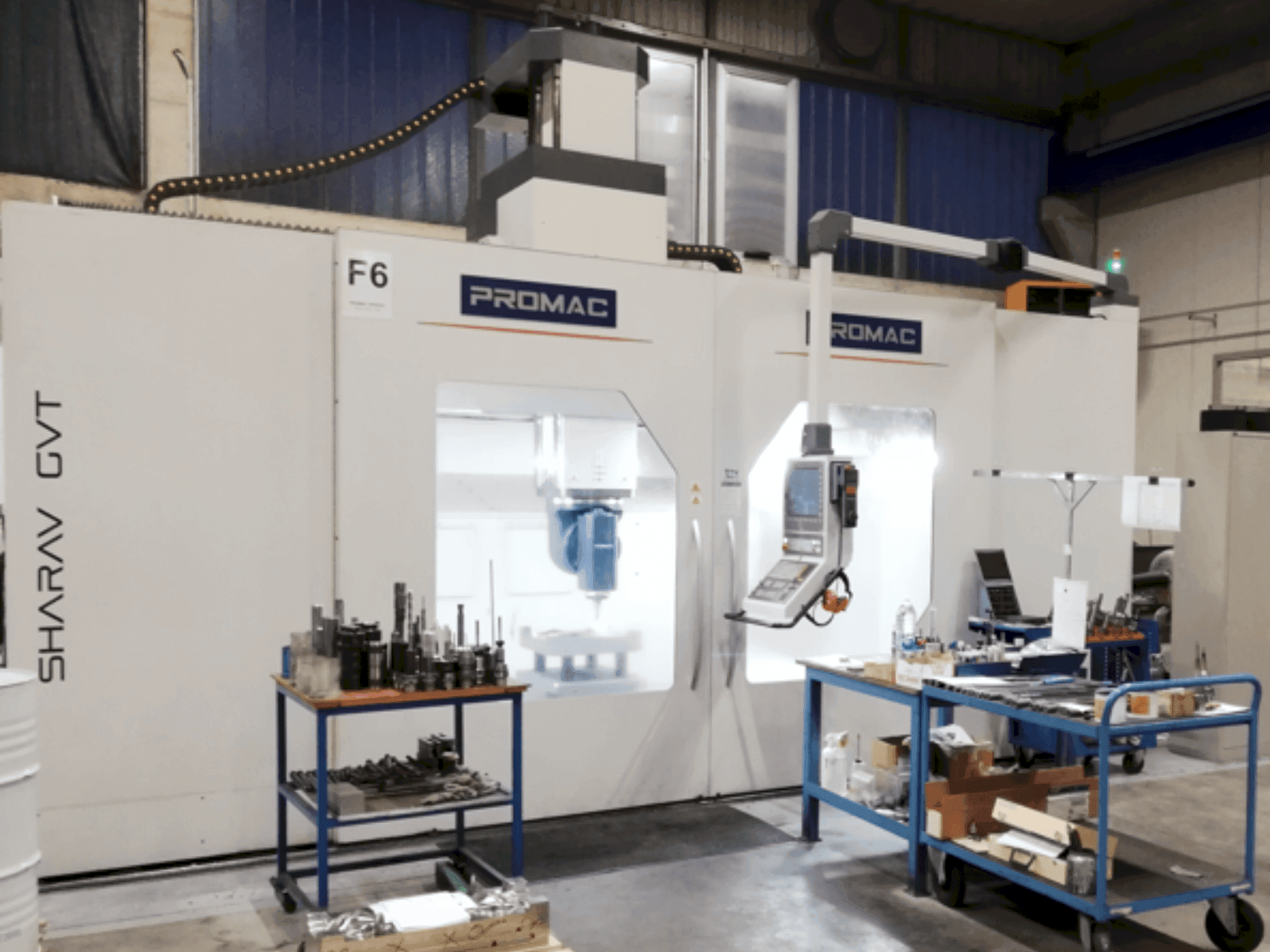

Front view of PROMAC SHARAV GTV 3.5 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

PROMAC SHARAV GTV 3.5

Photo Gallery

PROMAC - SHARAV GTV 3.5IT-MIL-PRO-2014-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used PROMAC SHARAV GTV 3.5 For Sale | gindumac.com

Show in original language

This 5-axis PROMAC SHARAV GTV 3.5 was manufactured in 2017, featuring a robust gantry milling machine design. It boasts extensive travels with 2500 mm on the X-axis, 2000 mm on the Y-axis, and 900 mm on the Z-axis. The machine includes a high-capacity spindle with 30 kW power and 800 Nm torque, ensuring precise and powerful machining. Consider the opportunity to buy this PROMAC SHARAV GTV 3.5 gantry milling machine. Contact us for more information about this machine.

Overview

brand: PROMAC
year: 2017
MODEL: SHARAV GTV 3.5
application type: Milling
Location: Italy
machine type: Gantry Milling Machine

Technical Information - PROMAC SHARAV GTV 3.5

Movement

A-axis Max: 110°
B-axis Max: 110°
B-axis Min: -110°
C-axis: 200°
Number of Axes: 5
X-axis Travel: 3500 mm
Y-axis Travel: 2200 mm
Z-axis Travel: 1200 mm

Technical Specification

Spindle Power: 30 kW

Additional Information

Additional equipment

32 tool holders (prepared for three additional 32/100/100 tool holders)

Machine Benefits

Technical Machine Benefits

Workpiece working position: vertical axis
Table dimensions: 3000x2000 mm
Spindle type: capto c 8
Spindle torque: 800 nm
Electrospindle weight: 210 kg
High-pressure internal spindle water system
Automatic sunroof / blum tool control / haidenhain 3d probe

Extra Information

Media Oil pump: 2 l/min Grease pump: 2 l/h Air flow rate: 450 l/h Voltage: 400 V Frequency: 50 Hz Air quantity: 1000 l/min Pressure: 6/8 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
