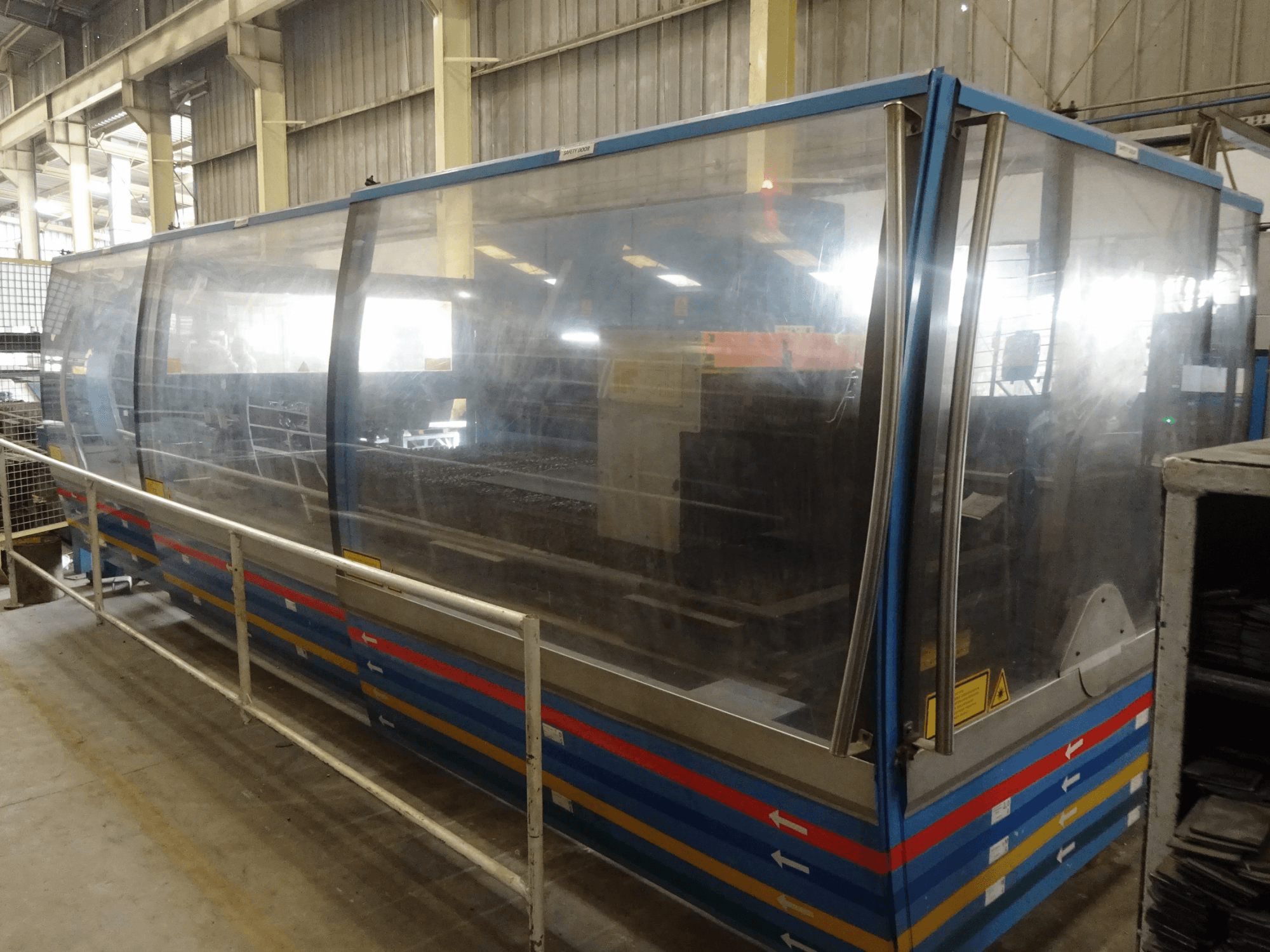

Right view of Prima Power Platino 2040 machine
Right view of Prima Power Platino 2040 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

Prima Power - Platino 2040IN-LAS-PRI-2010-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Prima Power Platino 2040 Laser Cutting Machine was manufactured in 2010 in Italy and has a working record of 32767 laser hours. Operated through a Primach 20L control unit, the model offers a larger bed size and door opening from two sides. In the past, this machine has worked mostly with mild steel sheets of up to 14 mm of thickness, producing construction equipment parts. A chiller, a dust collector and an auto pallet table are included as additional equipment.

Overview

  • brand: Prima Power
  • year: 2010
  • MODEL: Platino 2040
  • application type: Cutting
  • Location: India
  • machine type: CO2 Laser Cutting Machine
  • availability: Sold

Technical Information - Prima Power Platino 2040

General Data

  • Measurements width: 4000 mm
  • Measurements depth: 6025 mm
  • Measurements height: 2010 mm
  • Machine weight: 11166 kg

Control Unit

  • Model: 20L

Main drive

  • Laserpower: 4 kW
  • Laser type: Co2
  • Laser brand: Prima

Movement

  • X-AXIS Movement: 4000 mm
  • Y-AXIS Movement: 2000 mm
  • Z-AXIS Movement: 150 mm

Max Material thickness

  • Steel: 20 mm
  • Stainless steel: 16 mm

Media

  • Main electronic connection: 415 V
  • Power consumption: 72 kVA
  • Air pressure: 6 bar

    Additional Equipment

    • - Chiller
    • - Dust collector
    • - Auto pallet table

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
