Prima Power LPe6f

Photo Gallery

Prima Power - LPe6fPL-PUN-PRI-2014-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

Show in original language

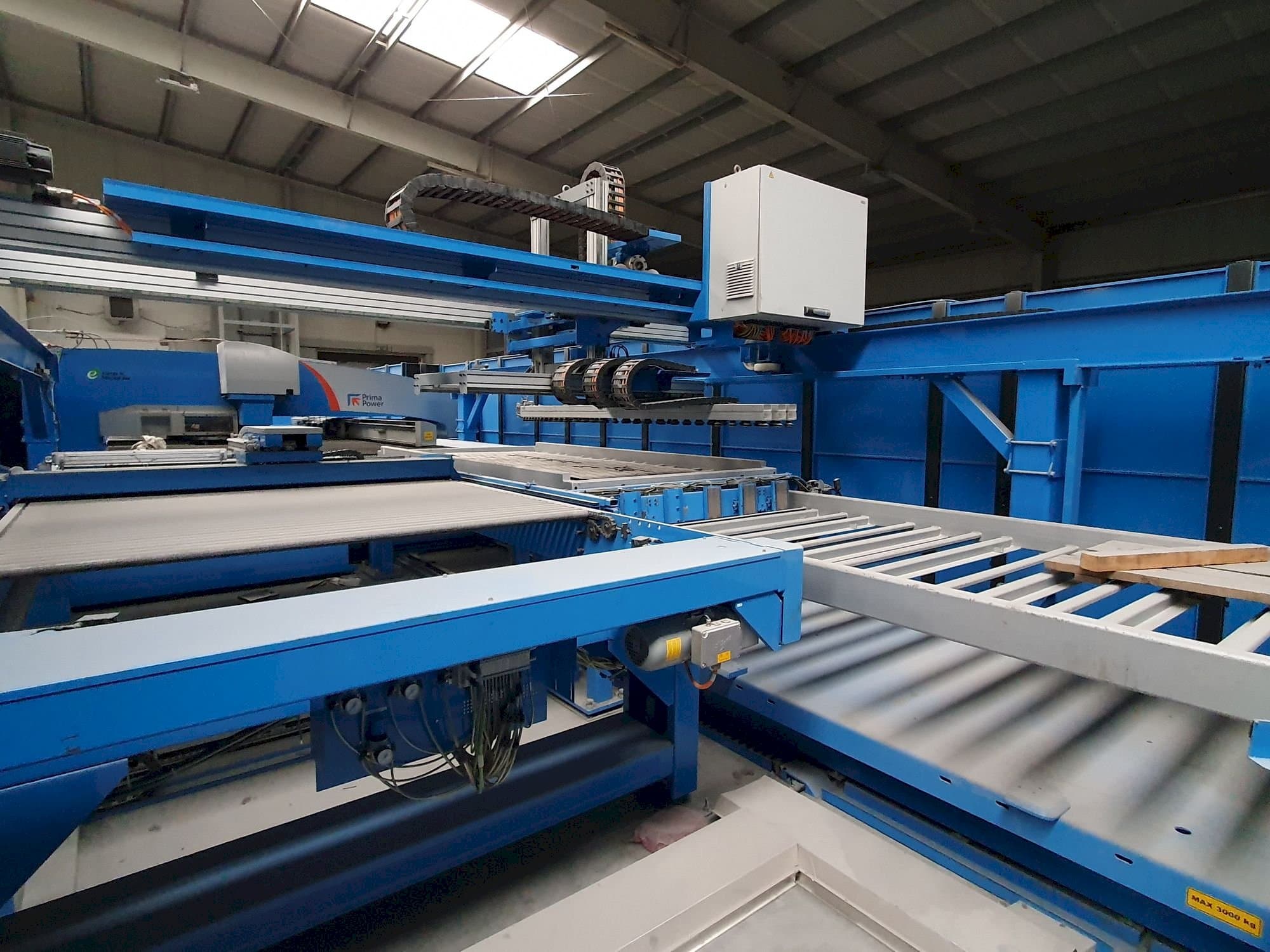

This Prima Power LPe6f Laser punch combination machine was manufactured in the year 2014 in Finland. This machine is equipped with a Prima Power CNC system control unit. It has been working for only 550 hours. This machine's laser power is of 3 kW and its punching force 294.2 kN. It is fully integrated installation of fiber laser cutting and punching machine width automatic loading/unloading, parts sorting robot and material storage.

Overview

brand: Prima Power
year: 2014
MODEL: LPe6f
production hours: 550
application type: Punching
Location: Poland
machine type: Punch-Laser Combination
control unit brand: PRIMA POWER

Technical Information - Prima Power LPe6f

General Data

Measurements width: 23900 mm
Measurements depth: 8800 mm
Measurements height: 8405 mm

Control Unit

Model: CNC system
Brand: PRIMA POWER

Main drive

Laserpower: 3 kW
Laser type: YLS-3000 IPG
Punching force: 294.2 kn

Movement

X-AXIS Movement: 3144 mm
X-AXIS Rapid traverse: 120 m/min.
Y-AXIS Movement: 1615 mm
Y-AXIS Rapid traverse: 90 m/min.

Tools

Number of index: 6 pcs

Max Material thickness

Steel: 8 mm
Stainless steel: 8 mm
Aluminum: 8 mm

Media

Main electronic connection: 400 V / 50 Hz

Additional Information

Additional equipment

Fourth sheet clamp
Tool lubrication
Scrap conveyor SC1T
Lifting scrap conveyor SC2
Lifting Laser Scrap Conveyor LSC2-L
Uninterruptible Power System
Work chute (500 x 500, includes slide plate) A side
Part detection system for work chute
Tapping unit TU6-H
External laser cooling system, External exhaust system

Machine Benefits

Qualitative Machine Benefits

Max punching speed (for 1 mm between holes): 1000/min
Max. Material size (x x y): 3074 x 1565 mm / max. Material weight: 200 kg
Everything ready for tests
Before selling the owner pays for full maintenance service and start-up of the system
Machine like new
Full documentation with manuals

Technical Machine Benefits

No. Of sheet clamps: 4 pcs
2 drop doors for parts, max size 800x800 mm
Part detection system for drop doors
Laser scrap conveyor, part conveyor
Video monitoring, safety system
Radiation protection for laser
Sorting unit for parts: su9-l
Loading and stacking robot: lsr6
Software: prima power nc express combi
Material storage: combo6 with one shelving unit, 25 pallets for material

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
