➤ Used POSmill H800U For Sale | gindumac.com

Show in original language

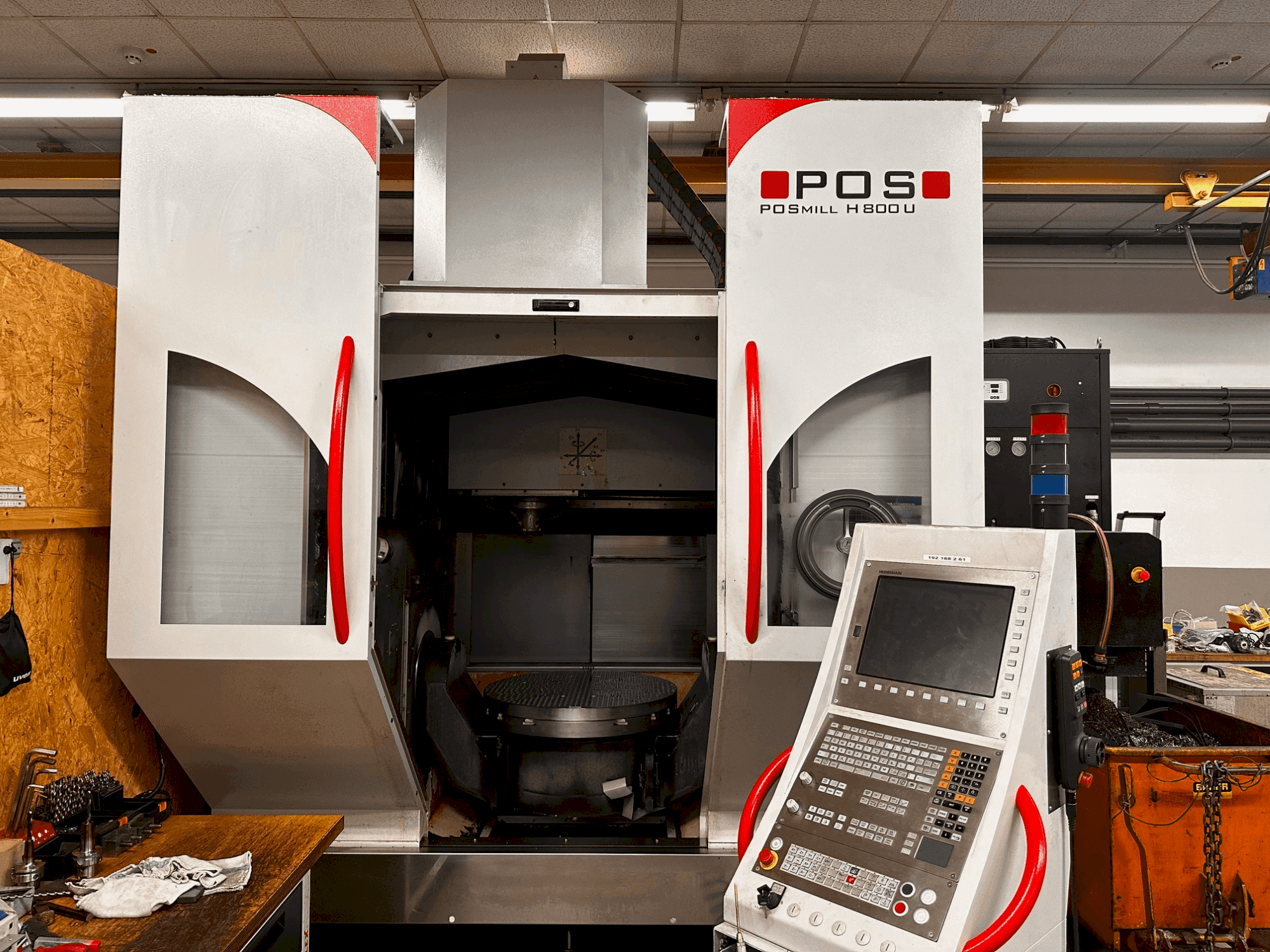

This 5-axis POSmill H800U was manufactured in 2017. A universal machining center featuring a Kessler spindle with 18,000 rpm and a turning diameter of 800 mm. It includes a Heidenhain 530 control and is fully equipped with Heidenhain measuring systems on all axes. Noteworthy is the 96 tool changer positions and the option to purchase a Meusburger zero-point clamping system plate. Consider the opportunity to buy this POSmill H800U universal machining center. Contact us for more information.

Overview

brand: POSmill
year: 2017
MODEL: H800U
production hours: 11200
application type: Milling
Location: Germany
machine type: Universal Machining Centre
control unit brand: HEIDENHAIN

Technical Information - POSmill H800U

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Movement

Number of Axes: 5
X-axis Travel: 670 mm
Y-axis Travel: 820 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 18000 RPM

Additional Information

New service in april 2025 with rotary union replaced (€8600)

96 tool changer positions
Pedestal to save space, coolant supply stacked (rare)
Large spindle cooler
Fully equipped with heidenhain measuring systems on all axes
Kessler swing arm, turning diameter 800 mm, fully usable with zero-point system
Internal coolant pressure: 40 bar
Coolant system: water and air external and through spindle, internal coolant pressure 40 bar with 600 liters
Nc swivel rotary table: Ø 800

A Meusburger zero-point clamping system plate (new price was €9500) can be purchased upon request. Available for purchase, negotiable.

The machine underwent a complete overhaul in early 2025 – the relevant documentation is available. Replacement of rotary unions, rod connection, machine maintenance

Additional equipment

Accessories: Zero-point clamping system, chip conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
