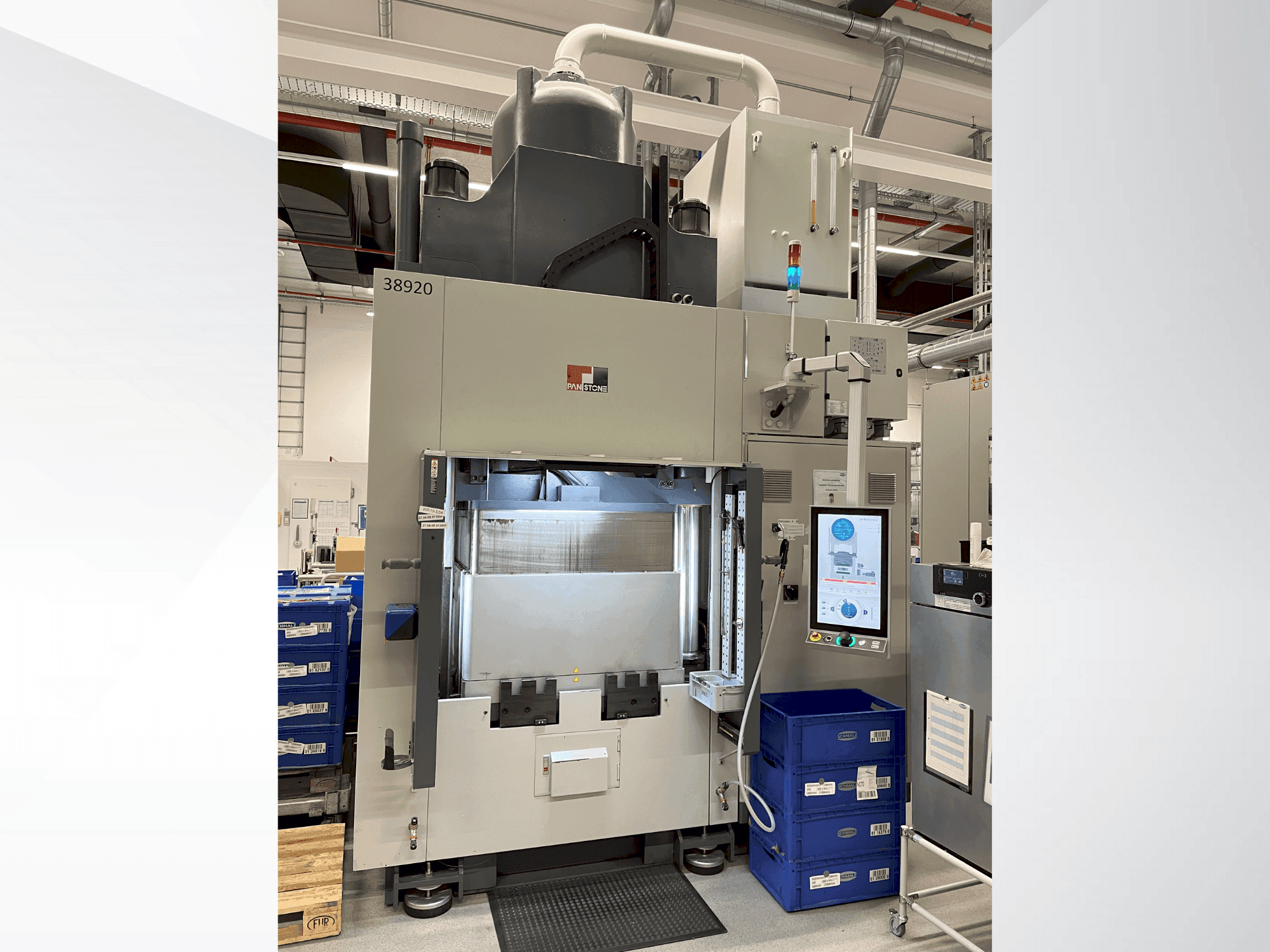

This PAN Stone D-V-500-PCD was manufactured in 2018. Ideal for various plastic processing applications, this machine maintains a robust design suitable for diverse industrial environments. Consider the opportunity to buy this PAN Stone D-V-500-PCD plastic processing machine. Contact us for more information.
Overview
- brand: PAN Stone
- year: 2018
- MODEL: D-V-500-PCD
- production hours: 5500
- application type: Other Plastic Processing Machinery
- Location: Germany
- machine type: Plastic Processing Machine
Technical Information - PAN Stone D-V-500-PCD
Dimensions
- Machine Depth: 2750 mm
- Machine Height: 4400 mm
Technical Specification
- Clamping Force: 5000 kN
Additional Information
Additional equipment
- 22" Touch Display with B&R Control System
- Windows-Based Interface
- Units Switchable, with Functions Enabled as Needed
- Free Process Configuration Possible
- Operator Intervention Allowed
- Venting/Degassing Function
- Weekly Timer
- Magnetic Clamping System from Römheld
- Integrated Heavy-Duty Rollers
- Vacuum Chamber: -900 mbar, Max. 400 mm Stroke, with BUSCH Pump
Machine Benefits
Technical Machine Benefits
- Design: upper piston press
- Clamping plates (lxw): 800 x 800 mm
- Centering pin: diameter 10 mm, 50 mm vertically behind the plate center
- Minimum installation height: 54 mm
- Maximum installation height: 400 mm
- Upper clamping plate: swivels up to 60°
- User languages: german and english
Extra Information
Demolding Maximum Opening Stroke: 800 mm Upper Lifting Unit: Controlled, Max. Stroke 300 mm Lower Lifting Unit: Controlled, Max. Stroke 300 mm Clear Width Between Lifting Units: 870 mm Central Ejector: Controlled, Max. Stroke 100 mm Central Ejector Diameter: 45 mm Additional Equipment Seal Positioned Away from Heating Plates Upper Clamping Plate Swivels Up to 60° Oil Preheating Function Interior Lighting 4x Compressed Air Connections Side-Mounted Power Strip, Controllable via Weekly Timer Heavy-Duty Rollers for Easier Machine Setup Profiled Pressing Possible (Transfer Press Functionality)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
