Other - SHEFFIELD Endeavor 9.15.7DE-MEA-OTH-2003-00001

£ 14,671
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

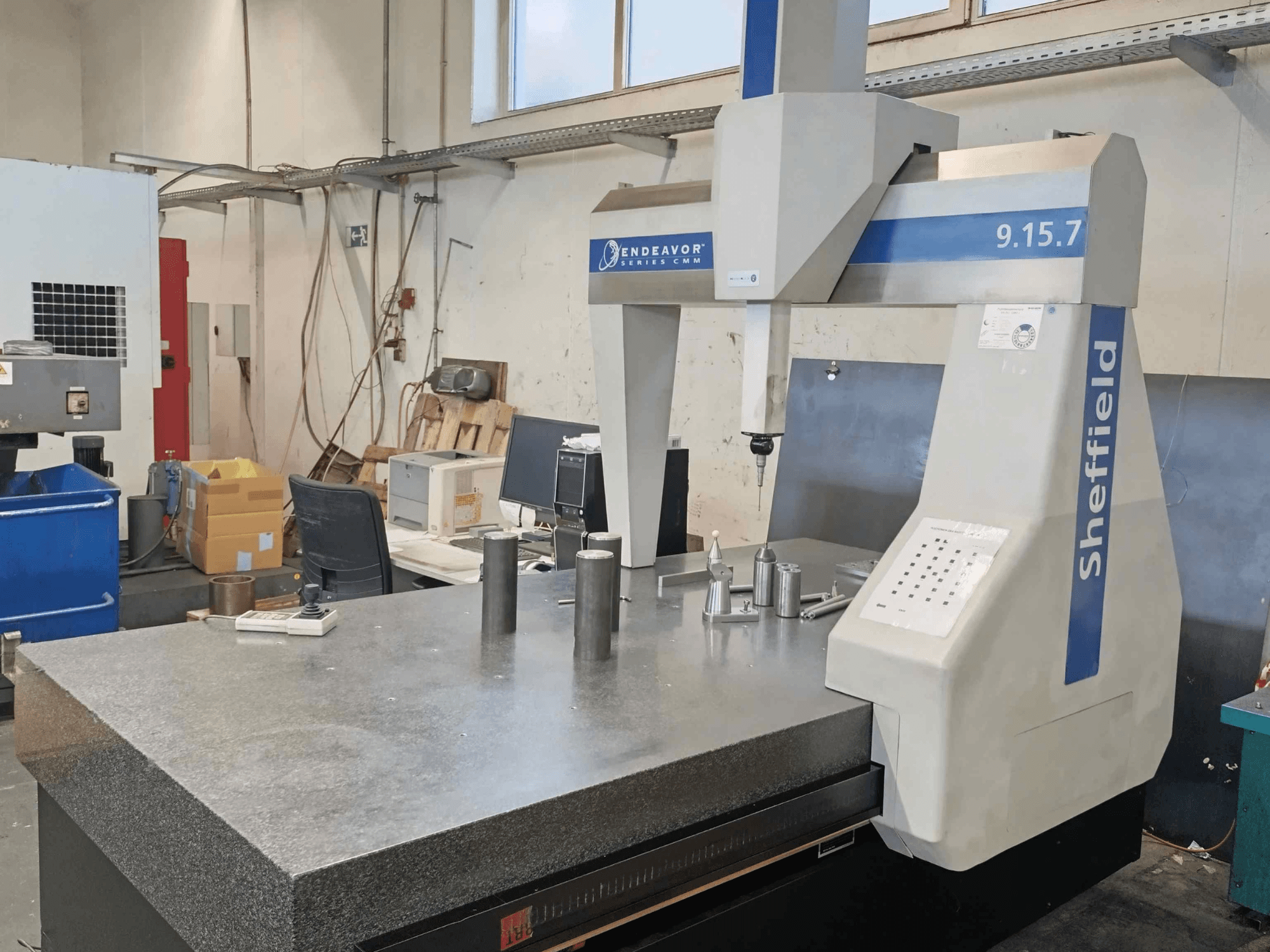

This 3-axis Other SHEFFIELD Endeavor 9.15.7 was manufactured in 2003. It features an X-axis travel of 900 mm, Y-axis travel of 1500 mm, and Z-axis travel of 660 mm. The machine is equipped with a granite table and brushless linear motors on the X and Y axes. If you are looking to get high-quality measurement capabilities, consider the Other SHEFFIELD Endeavor 9.15.7 CMM machine we have for sale. Contact us for further details.

Overview

  • brand: Other
  • year: 2003
  • MODEL: SHEFFIELD Endeavor 9.15.7
  • application type: Measuring
  • Location: Germany
  • machine type: Coordinate Measuring Machine (CMM)

Technical Information - Other SHEFFIELD Endeavor 9.15.7

Dimensions

  • Machine Weight: 3050 kg
  • Table Load: 1250 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 900 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 660 mm

Additional Information

  • CE Marked

  • Maximum 3D Speed: 39 m/min

  • Maximum 3D Acceleration: 1.7 m/s²

  • Voltage: 240 V

  • Accuracy Standard: DIN EN ISO 10360-2

  • Specified Accuracy Temperature Range: 15°C – 25°C

  • Volumetric Length Measuring Error (MPEE): 2.8 + L/263 µm

  • Volumetric Probing Error (MPEP): 3.0 µm

  • Maximum Hourly Temperature Gradient: 2°C/h

  • Maximum Daily Temperature Gradient: 5°C/24h

  • Maximum Spatial Temperature Gradient: 1°C/m

  • Permissible Ambient Temperature Variation: ±5°C

  • Granite Table

  • Threaded Inserts: ISO M8 x 1.25

  • Air Bearing Axes

  • Brushless Linear Motors on X and Y Axis

  • Renishaw High-Resolution Linear Scales

  • Geometric Error Compensation

  • Automatic Volumetric Temperature Compensation

  • Probe Head: Renishaw PH10MQ

  • Probe Head Weight: 645 g

  • A-Axis Indexing Range: 0° to 105° in 7.5° Increments

  • B-Axis Indexing Range: ±180° in 7.5° Increments

  • Positioning Repeatability: 1 µm

  • Maximum Extension Length: 300 mm

  • Probe Head Mount: M10 Thread

  • Probe Connection Thread: M8 Thread

  • Probe System: Renishaw TP20

  • Reference Sphere Diameter: 19 mm

  • Parallel Port

Sale WITHOUT Software License

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
