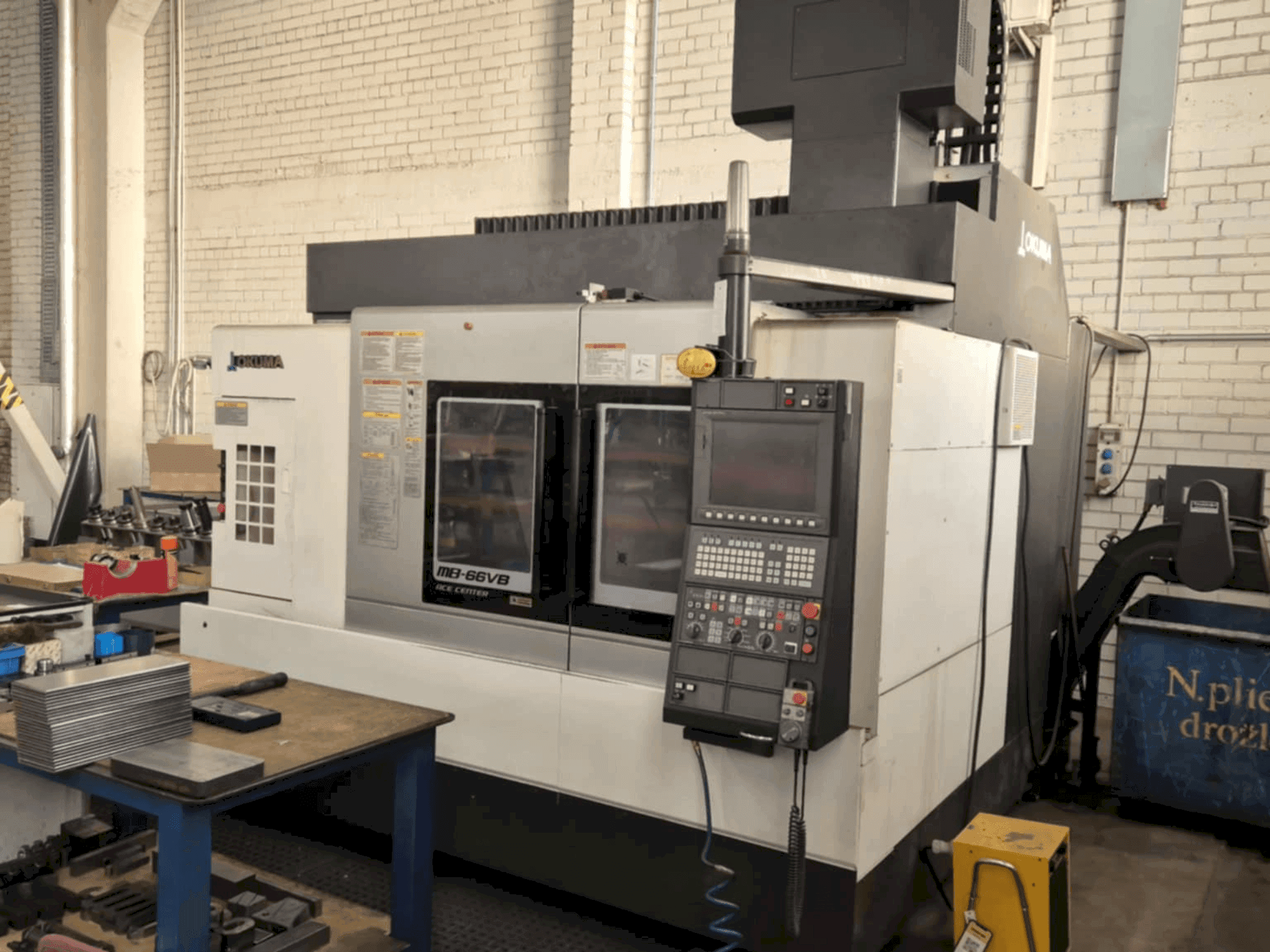

This 3-axis Okuma MB-66VB was manufactured in 2018 and features a robust vertical machining center design. It offers a large working area of 660 × 1530 mm, with X, Y, and Z travels of 1500 mm, 660 mm, and 660 mm respectively. The machine supports a load capacity of 1500 kg and achieves rapid traverse feed rates up to 40 m/min. Consider the opportunity to buy this Okuma MB-66VB vertical machining center. Contact us for more information about this machine.
Overview
- brand: Okuma
- year: 2018
- MODEL: MB-66VB
- application type: Milling
- Location: Lithuania
- machine type: Vertical Machining Centre
Technical Information - Okuma MB-66VB
Movement
- X-axis Travel: 1500 mm
- Y-axis Travel: 660 mm
- Z-axis Travel: 660 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Working area: 660 × 1530 mm / table size: 660 × 1530 mm / table surface: 18 slots × 5 / table surface to floor: 850 mm / load capacity: 1500 kg
- Spindle speed range (standard): 50 to 6000 min⁻¹ / max spindle speed (optional): 12000 min⁻¹ / torque/base speed (optional): 220 n·m / 650 min⁻¹ / spindle drive motor: 11/7. 5 kw or 26/18. 5 kw
- Tool storage capacity: 20 (options: 32, 48) / max tool diameter (with/without adjacent tools): 100 mm / 152 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
