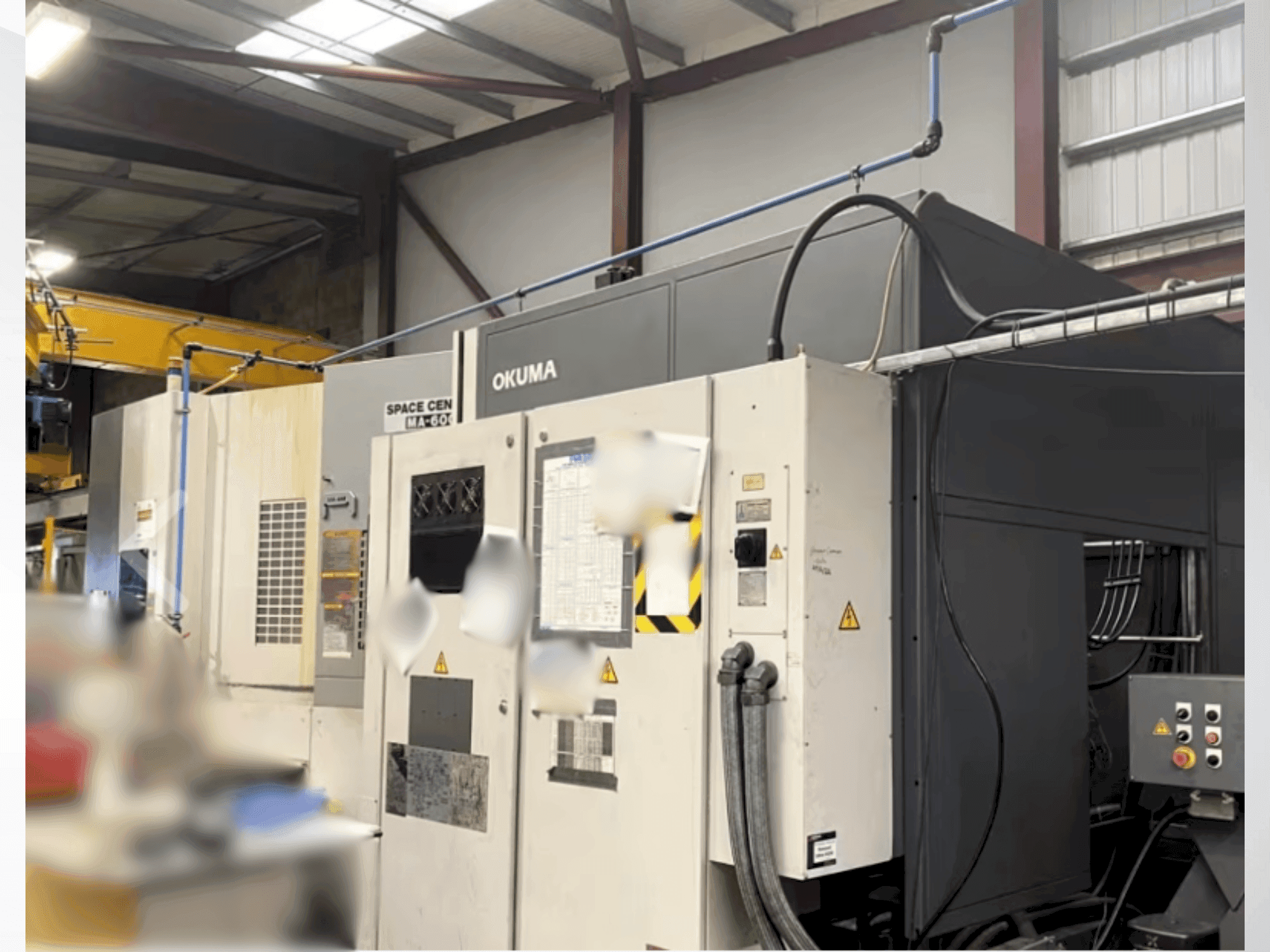

Front view of Okuma MA 600  machine

Thank you for your visit

This machine was recently sold.

Okuma - MA 600IT-MIL-OKU-2005-00002

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Okuma MA 600 horizontal machining center was manufactured in 2005. It features a powerful CNC P 200 control, with a maximum spindle speed of 6000 RPM and a spindle torque of 606 Nm. The machine includes a 100-tool station with chain management and rapid feeds up to 60 m/min in X, Y, Z axes. Dimensions include a maximum height of 3.28 m and a weight of 24,000 kg. The opportunity to buy this Okuma MA 600 horizontal machining center is significant. Contact us for further details.

Overview

  • brand: Okuma
  • year: 2005
  • MODEL: MA 600
  • application type: Milling
  • Location: Italy
  • machine type: Horizontal Machining Centre

Technical Information - Okuma MA 600

General Data

  • Measurements width: 6110 MM
  • Measurements depth: 3380 MM
  • Measurements height: 3280 MM
  • Machine weight: 24000 KG

Main drive

  • Spindle speed range: 6000 1/MIN
  • Spindle motor power: 30/22 kW
  • Tool taper: BT 50
  • Main motor power: 50 kVA
  • Number of axis: 4

Movement

  • X-AXIS Movement: 1000 mm
  • X-AXIS Working Feed: 60000 mm/min
  • X-AXIS Rapid traverse: 60 m/min
  • Y-AXIS Movement: 900 mm
  • Y-AXIS Working Feed: 60000 mm/min
  • Y-AXIS Rapid traverse: 60 m/min
  • Z-AXIS Movement: 1000 mm
  • Z-AXIS Working Feed: 60000 mm/min
  • Z-AXIS Rapid traverse: 60 m/min

Table

  • Min distance between vertical spindle and table: 50 mm
  • Max distance between vertical spindle and table: 950 mm

Tools

  • Max weight: 25 kg
  • Max tool length: 450 mm

    Additional Information

    Additional equipment

    • Consep 2000 chip conveyor

    Machine Benefits

    Qualitative Machine Benefits

    • Max non-adjacent tool diameter: 240 mm
    • Compressed air pressure: 4-6 bar
    • Refrigeration through spindle: 20 bar
    • Probe preparation zero offset
    • Presetting on board mechanical table

    Technical Machine Benefits

    • Ikz: 20 bar
    • Table drive motor power: 1. 9 kw
    • Table indexing time (90° - 180°): 2. 0 – 3. 0 sec
    • Pallet change time: 7 sec
    • Distance between spindle nose/table center: 70-1070 mm
    • Front bearing diameter: 100 mm (60 mm)
    • Max spindle torque: 606 nm
    • Tool change time (tool/tool): 1. 9 sec
    • Tool change time (chip/chip): 4. 4 sec
    • Max adjacent tool diameter: 140 mm (100 mm)

    Extra Information

    Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
