Okuma LU 35M

Photo Gallery

Okuma - LU 35MIT-TUR-OKU-1998-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma LU 35M - 1998 - Lathe For Sale | gindumac.com

Show in original language

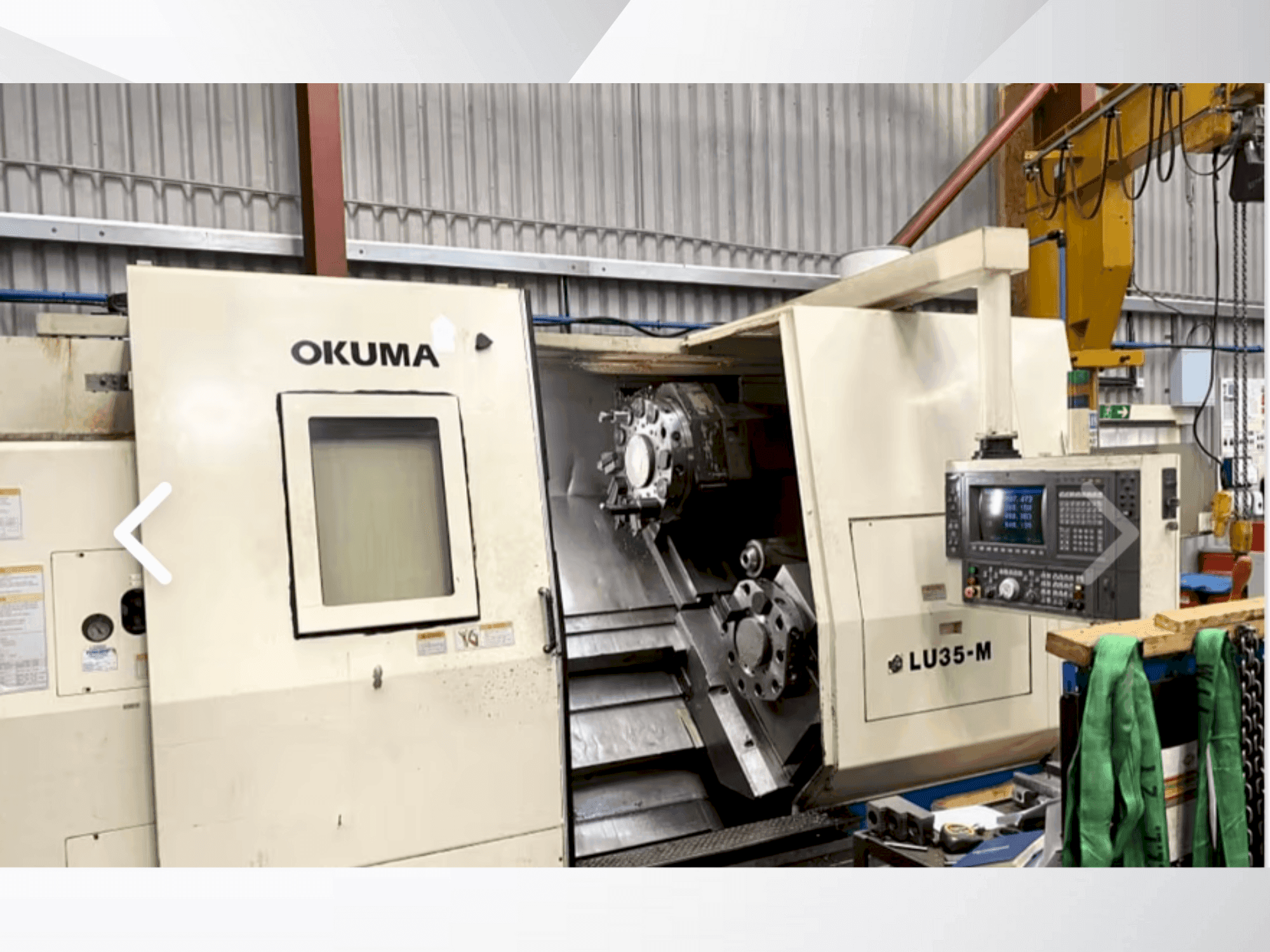

This 3-axis Okuma LU 35M lathe was manufactured in 1998. It features a swing over saddle of 480 mm, a maximum turning diameter of 560 mm, and a distance between centers of 1000 mm. Equipped with a V10 NC turret and a spindle bore diameter of 90 mm, this machine offers robust capabilities for precision machining. Consider the Okuma LU 35M machine we have for sale. Contact us for further details regarding this lathe.

Overview

brand: Okuma
year: 1998
MODEL: LU 35M
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: OKUMA

Technical Information - Okuma LU 35M

General Data

Measurements width: 2570 MM
Measurements depth: 4535 MM
Measurements height: 2590 MM
Machine weight: 10000 KG

Control Unit

Model: OSP 7000 L
Brand: OKUMA

Main drive

Spindle speed range: 40-2000 1/MIN
Spindle motor power: 30/22 kW
Tool taper: JIS A2-8

Movement

X-AXIS Movement: Upper 380 mm, Lower 250 mm
X-AXIS Rapid traverse: 15,000 mm/min
Z-AXIS Movement: Upper 920 mm, Lower 875 mm
Z-AXIS Rapid traverse: 20,000 mm/min
C-AXIS Movement: 360°

Workpiece

Workpiece drm: 560 mm
Workpiece x: 850 mm

Additional Information

Additional equipment

Coolant pump: 0.4 kW
Live tool motor: 5.5/3.7 kW

Machine Benefits

Qualitative Machine Benefits

Quill diameter: 120 mm
Quill bore taper: mt 5
Quill travel: 170 mm
Kva: 43
Precision control with okuma osp 7000 l

Technical Machine Benefits

Swing over saddle: 480 mm
Distance between centers: 1000 mm
Number of speeds & ranges: 4 ranges
Spindle bore diameter: 90 mm
Diameter at front bearing: 130 mm
Turret type: v10 nc
Tool shank height: 25 mm
Boring bar shank diameter: 50 mm
Indexing time: 0. 3/station
Cutting feed (x, z): 0. 001 – 1. 000. 000 mm/rev

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
