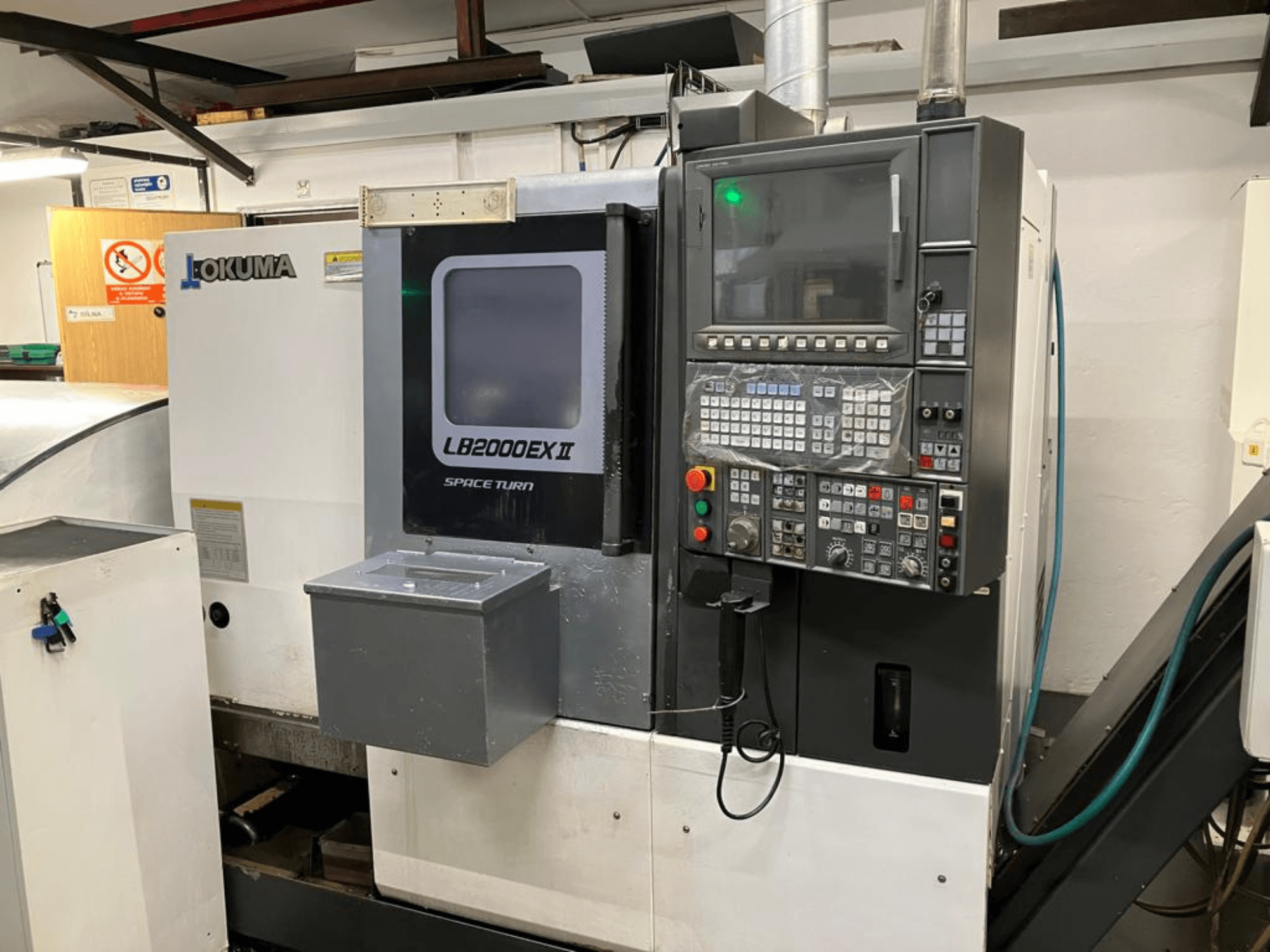

This 3-axis Okuma LB2000EXII MC was manufactured in 2013. It features a maximum swing diameter of 580 mm and a maximum machining diameter of 360 mm. The machine includes a turret head with 12 tool positions and a rapid traverse speed of 25 m/min on the X-axis. If you are looking to get high-quality turning capabilities, consider the Okuma LB2000EXII MC horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: Okuma
- year: 2013
- MODEL: LB2000EXII MC
- application type: Turning
- Location: Spain
- machine type: Horizontal Turning Machine
- control unit brand: OKUMA
Technical Information - Okuma LB2000EXII MC
Control Unit
- Control Brand: OKUMA
- Control Model: OSP P300L
Dimensions
- Machine Height: 2250 mm
- Machine Length: 1734 mm
- Machine Weight: 4050 kg
- Machine Width: 1985 mm
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 350 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Number of Tools: 12
- Spindle Power: 11 kW
- Spindle Speed: 6000 RPM
Additional Information
Chuck size: 6"
Max. swing diameter: 580 mm
Max. machining diameter: 360 mm
Max. machining length: 150 mm
Spindle power: 11.0/7.5; (15/11; 22/15) kW
Turret:
Tool positions: 12
External tooling: 20 x 20 mm
Internal tooling: Ø 32 mm
Driven tool speed: 45–6000 rpm
Driven tool power: 5.5/3.7 (7.1/4.1) kW
Rapid traverse:
X-axis: 25 m/min
Y-axis: 12.5 m/min
Z-axis: 30 m/min
W-axis: —
C-axis: 200 rpm
Hours:
Total: 43,157
Cutting: 18,671
Additional equipment
Bar feeder: IRCO MUK-7012 (bar Ø 6–70 mm, length 1250 mm)
Tool holders (including driven tool holders)
Collet chuck: Hainbuch SPANNTOP
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
