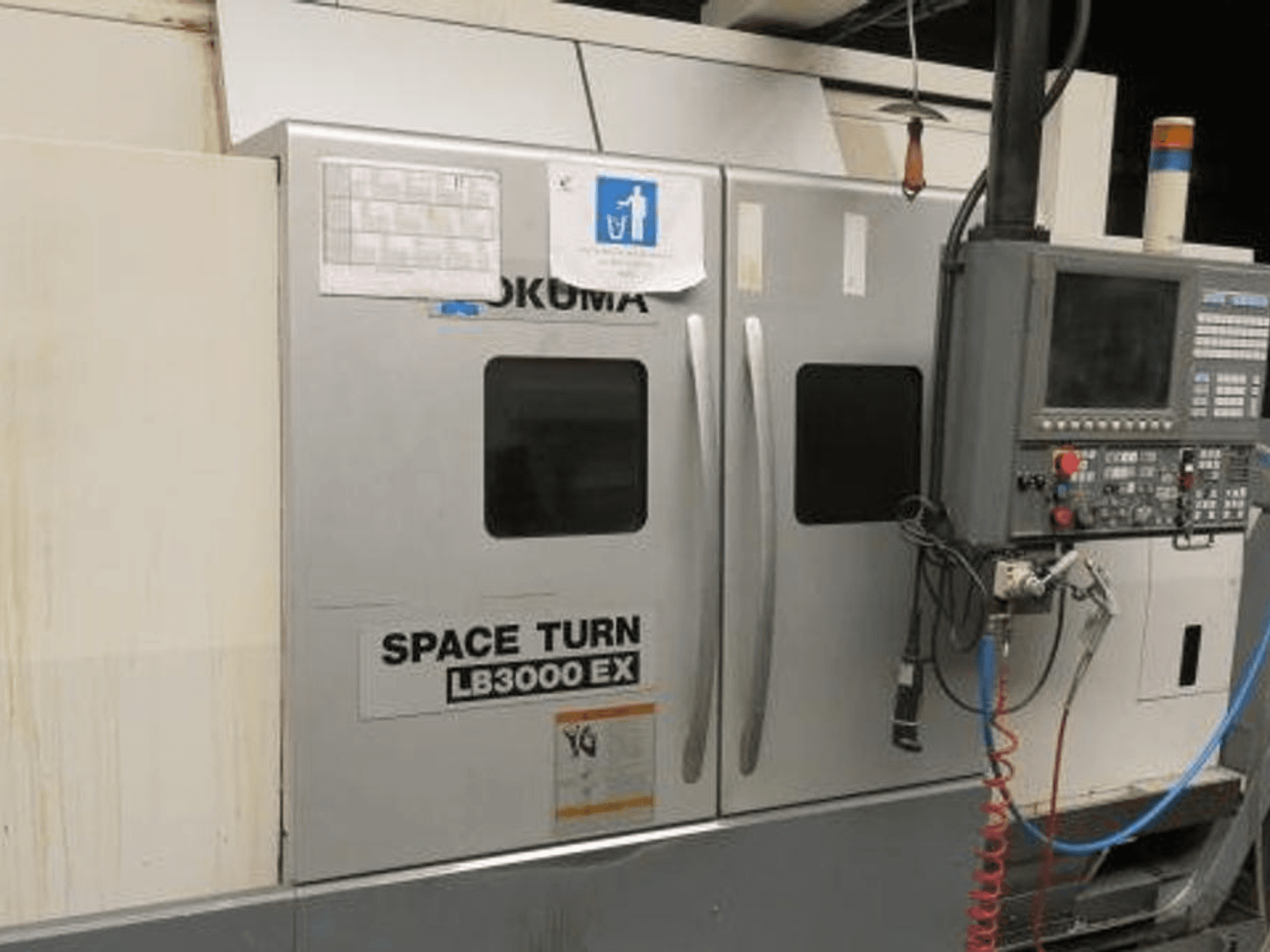

This 3-axis Okuma LB 3000 EX turn-mill centre was manufactured in 2011. It features a maximum turning diameter of 340 mm, a turning length of 950 mm, and a spindle speed up to 5,000 rpm. The machine includes a 12-position tool turret and supports driven tool speeds up to 6,000 rpm. If you are looking to get high-quality turning and milling capabilities, consider the Okuma LB 3000 EX machine we have for sale. Contact us for more information.
Overview
- brand: Okuma
- year: 2011
- MODEL: LB 3000 EX
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
Technical Information - Okuma LB 3000 EX
Movement
- Number of Axes: 3
- X-axis Travel: 260 mm
- Y-axis Travel: 120 mm
- Z-axis Travel: 1010 mm
Technical Specification
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 5000 RPM
Additional Information
Maximum turning length: 950 mm
Distance between centers: 970 mm
Maximum turning diameter: 340 mm
Rapid traverse X: 25 m/min
Rapid traverse Z: 30 m/min
Rapid traverse Y: 12.5 m/min
C-axis speed: 200 rpm
Tool turret: Okuma, 12 positions
Driven tool speed: 45–6,000 rpm
Driven tool power: 4.1 / 7.1 kW
Tailstock travel: 1,015 mm
Tailstock taper: CM 5
Maximum tailstock thrust: 5 kN
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
