Okuma LB 300 MY
Okuma - LB 300 MY
2000
£ 61,000
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Used Lathe Okuma LB 300 MY (2000) for sale | GINDUMAC.COM
Show in original language

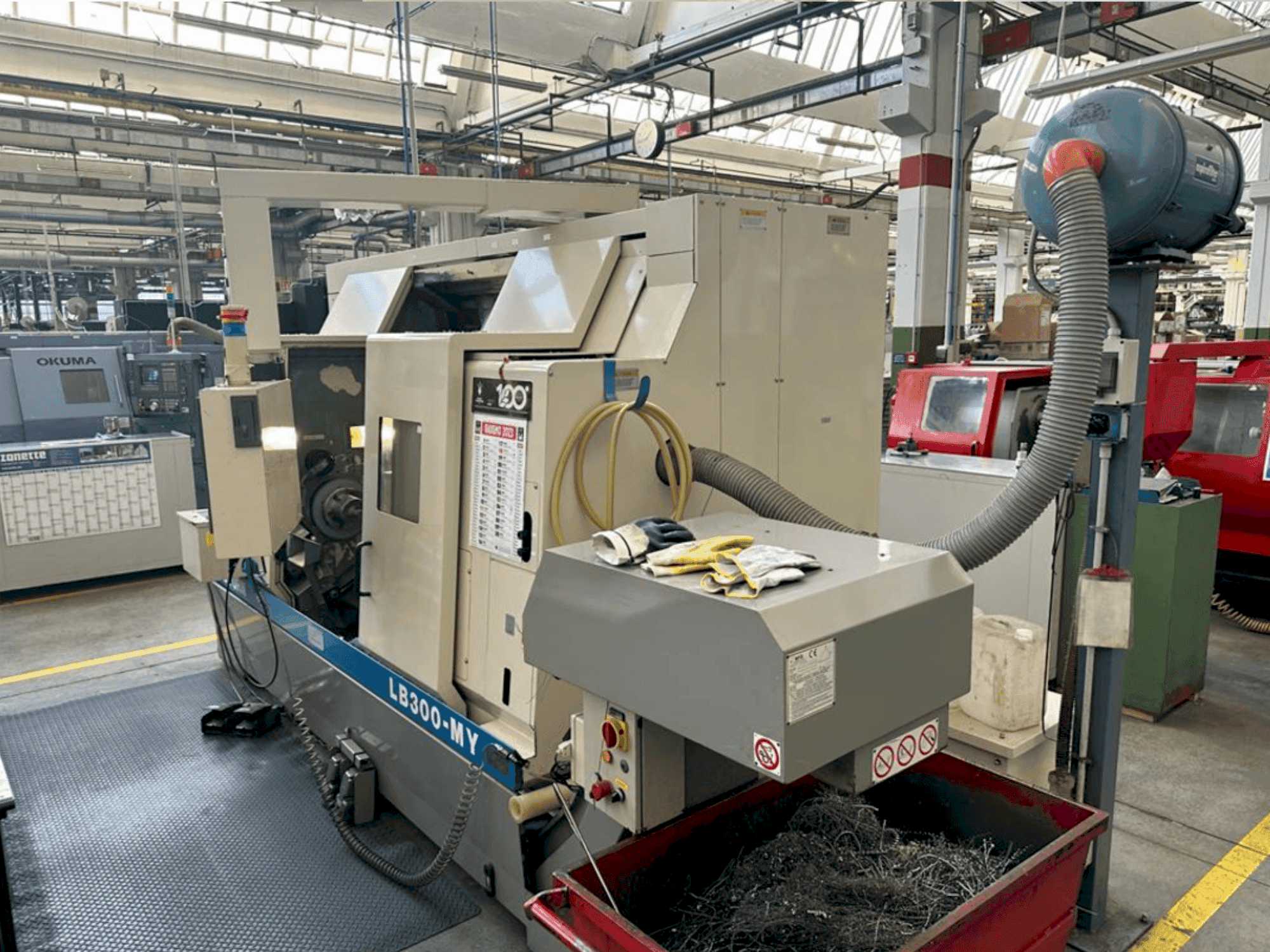

This used 4-Axis OKUMA LB 300 MY was manufactured in 2000, featuring a CNC OSP U 100 L control, maximum turning diameter of 340mm, and main spindle big bore option. It has a rapid feed rate of 20-25 m/min for X and Z axes, and a 12 station turret with a Y-axis travel of 120 mm. The OKUMA LB 300 MY machine we have for sale has clocked approximately 3,500 cutting hours, signifying its reliability and performance. For more details, contact us.
Overview
- brand: Okuma
- year: 2000
- MODEL: LB 300 MY
- production hours: 3500
- application type: Turning
- Location: Italy
- machine type: Lathe
- availability: Immediately
- control unit brand: OKUMA
- GINDUMAC ID: IT-TUR-OKU-2000-00003
Technical Information
General Data
- Machine weight: 5900 kg
Control Unit
- Brand: OKUMA
- Model: OSP U 100 L
Main drive
- Number of spindles: 1
- Spindle speed range: 3800 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 260 MM
- X-AXIS Rapid traverse: 20-25 M/MIN
- Y-AXIS Movement: 120 MM
- Z-AXIS Movement: 1020 MM
- Z-AXIS Rapid traverse: 20-25 M/MIN
Turret
- Number of turrets: 1
- Rotating tools: Yes
Tools
- Number of stations: 12
Additional Equipment
- - CHIP EVACUATOR
- - TAILSTOCK
- - AUTOC. DIA.210
- - PRESETTING
- - P/STATIC TOOLS
- - 2 P/AXIAL + 2 RADIAL MOTORIZED TOOLS
- - PIECE UNLOADING ARM
Additional Information
- Technical Machine Benefits:
- - Distance between points 1020 mm. // dia. Max rotating on the protections 530 mm. // dia. Rotating between the points 420 mm. // dia. Max turning with std tools. 340mm. // dia. Useful bar passage 70 mm.
- - Asa-a2 8” chuck connection
- - Continuously variable rpm range 2
- - Max power available kw 22/15
- - Motor power driving x – z axes kw bl 3. 0/bl 4. 0 //thrust axis x kfg 660 // thrust z axis kfg 640 // x – z axis drive screws dia. /pitch 32-40/16 mm.
- - Positioning accuracy of x, z axes mm. 0. 01/100 – 0. 15/300 // positioning repeatability of x – z axes +/- 0. 001 – 0. 002 mm.
- - Max device power kw 7/3. 3 // max torque available nm 23. 7 // rpm range rpm. 45-4500
- - Y axis travel mm. 120 (+70-50) // x axis travel mm. 280 (+210-70) / rapid feeding of y axis mm/min. 10000
- - Dia. Sleeve mm. 90 // sleeve travel mm. 120
- - Max thrust allowed kfg 500
- Qualitative Machine Benefits:
- - Connection for tools vdi-mm. 40
- - Indexing time (1 position) sec. 0. 1
- - Indexing time (6 position) sec. 0. 36
- - Cone connection cm n. 5
- - TOTAL MAX POWER INSTALLED KVA 28.16
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
