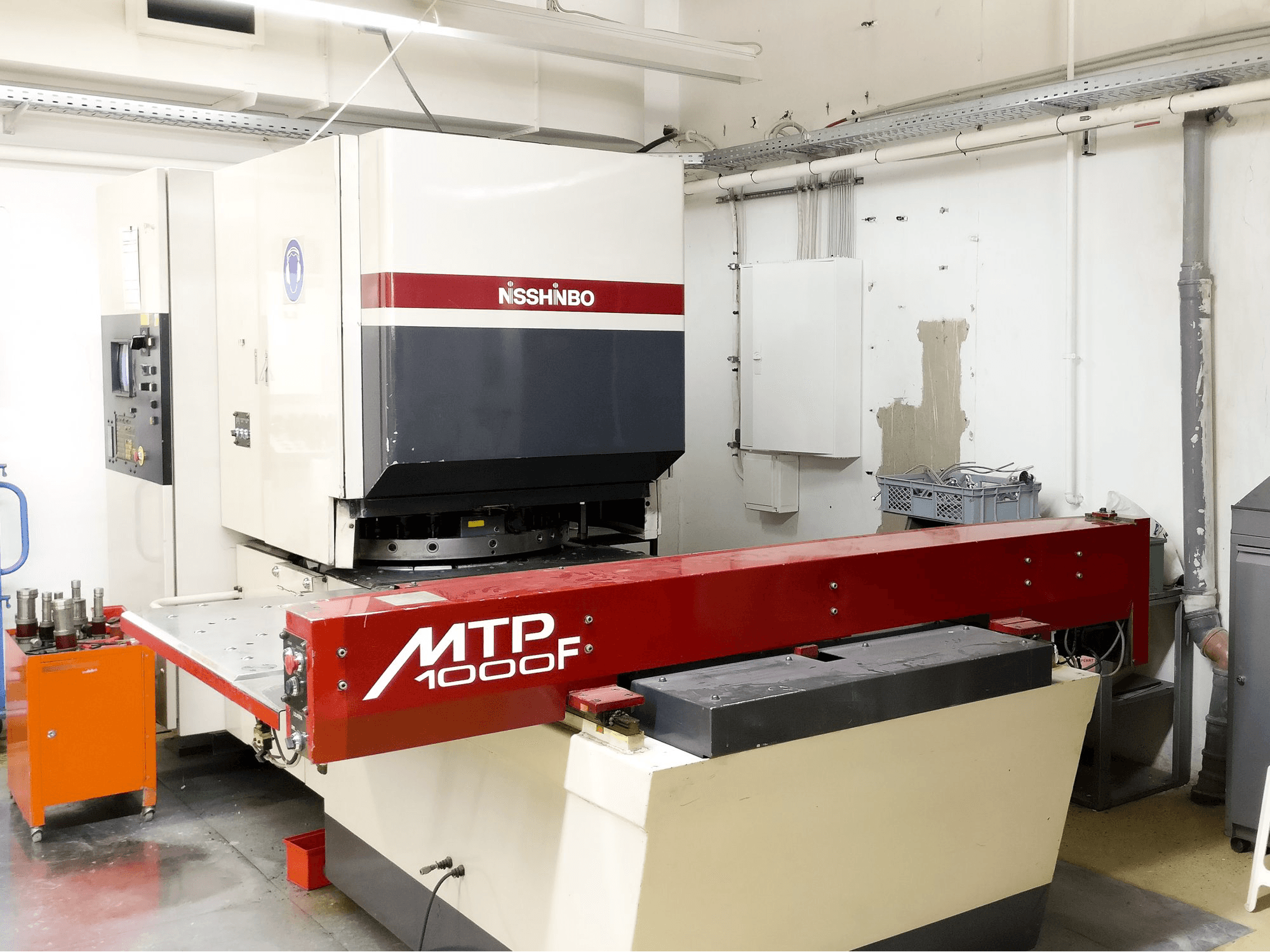

Left view of Nisshinbo MTP-1000F machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Nisshinbo MTP-1000F

Photo Gallery

Nisshinbo - MTP-1000FDE-PUN-NIS-1992-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Nisshinbo MTP-1000F Turret Punching Machine

Show in original language

This Nisshinbo MTP-1000F Turret Punching Machine was manufactured in 1992 and has a production record of 18800 working hours. This machine operates on a 220 kN strong punching force through Nisshinbos own Control unit, and is delivered with several diverse toolsets as additional equipment.

Overview

brand: Nisshinbo
year: 1992
MODEL: MTP-1000F
production hours: 18800
application type: Punching
Location: Germany
machine type: Turret Punch Press

Technical Information - Nisshinbo MTP-1000F

General Data

Measurements width: 3975 mm
Measurements depth: 2338 mm
Measurements height: 2200 mm
Machine weight: 7500 kg

Main drive

Punching force: 220 kN
Maximum sheet thickness: 6 mm

Workpiece

Workpiece x: 1000 mm
Workpiece y: 2560 mm

Tools

Number of stations: 22
Max tool diameter: 100 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 9 kVA
Oil tank: 60 L

Additional Information

Additional equipment

Diverse toolsets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
