Nicolas Correa Prisma 20

Photo Gallery

SOLD

Nicolas Correa - Prisma 20

2004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Nicolas Correa Prisma 20 Milling machine

Show in original language

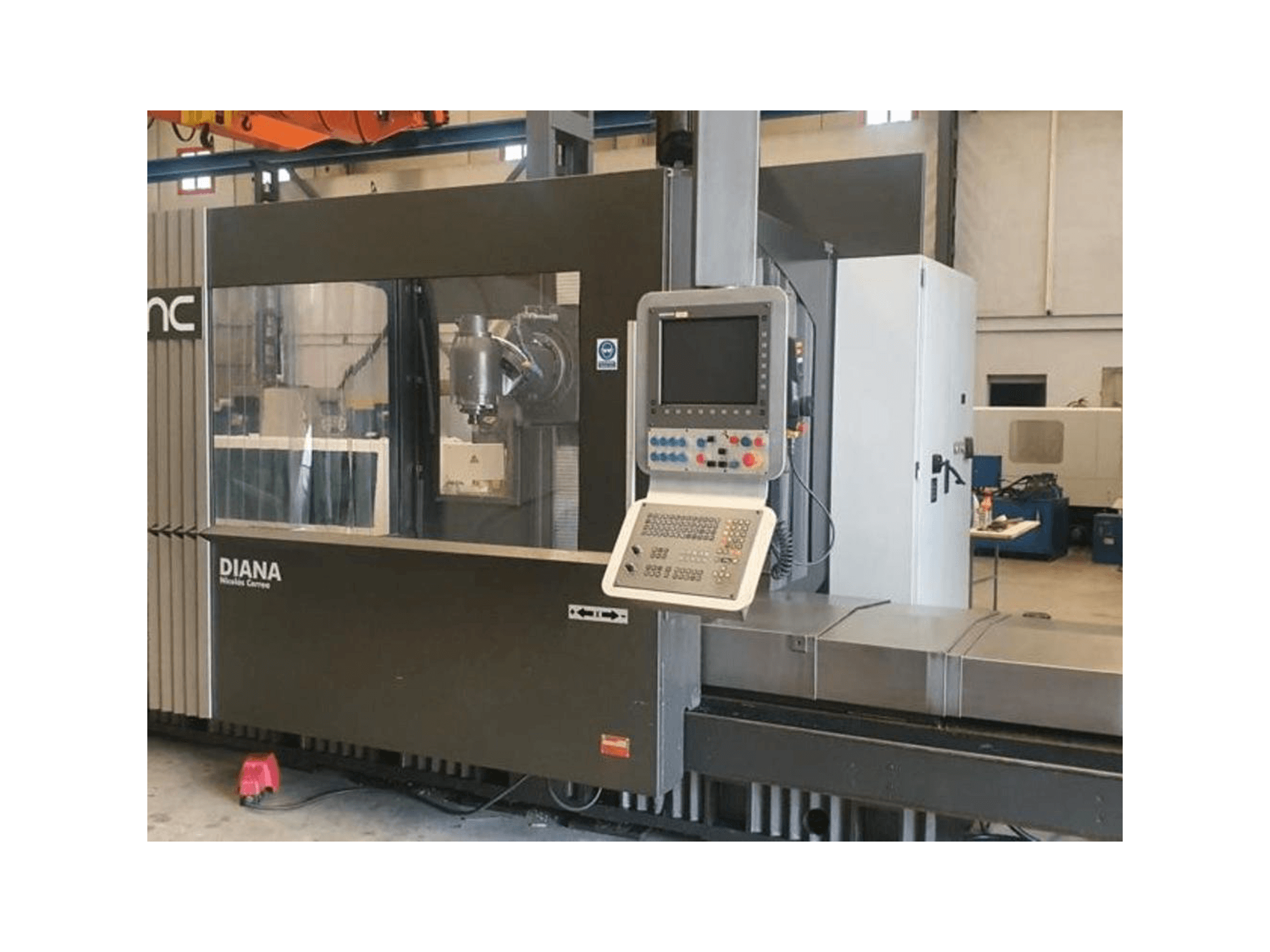

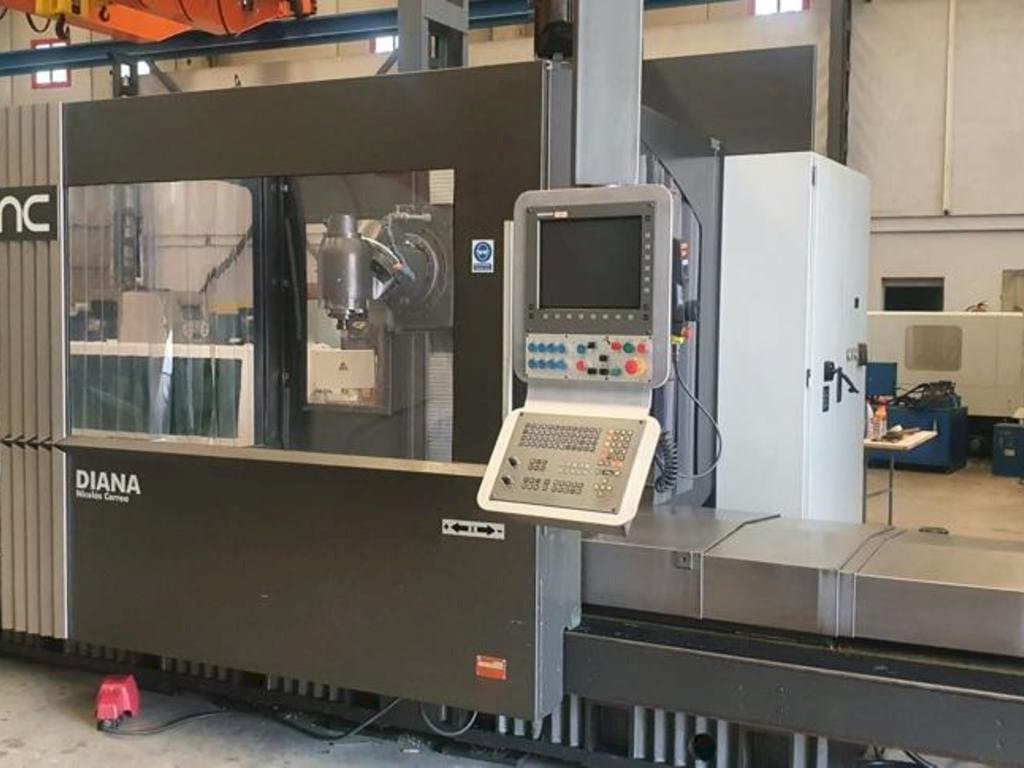

This Nicolas Correa Prisma 20 Milling machine was manufactured in the year 2004. It is equipped with a Heidenhain iTNC 530 control unit and has 4 axis. The machine has a spindle speed of 550-4000 rpm.

Overview

brand: Nicolas Correa
year: 2004
MODEL: Prisma 20
application type: Milling
Location: Spain
machine type: Milling Machine
availability: Sold
control unit brand: Heidenhain
GINDUMAC ID: ES-MIL-NIC-2004-00001

Technical Information

General Data

Machine weight: 14000 kg

Control Unit

Brand: Heidenhain
Model: iTNC 530

Main drive

Number of spindles: 1
Spindle speed range: 550-4000 1/MIN

Movement

X-AXIS Movement: 2000 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Workpiece

Workpiece weight: 3500 kg

Table

Outer length: 2000 mm
Outer width: 900 mm
Number of tslots: 5
Distance between: 200 mm

Tools

Type of tool holder: ISO-50

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
