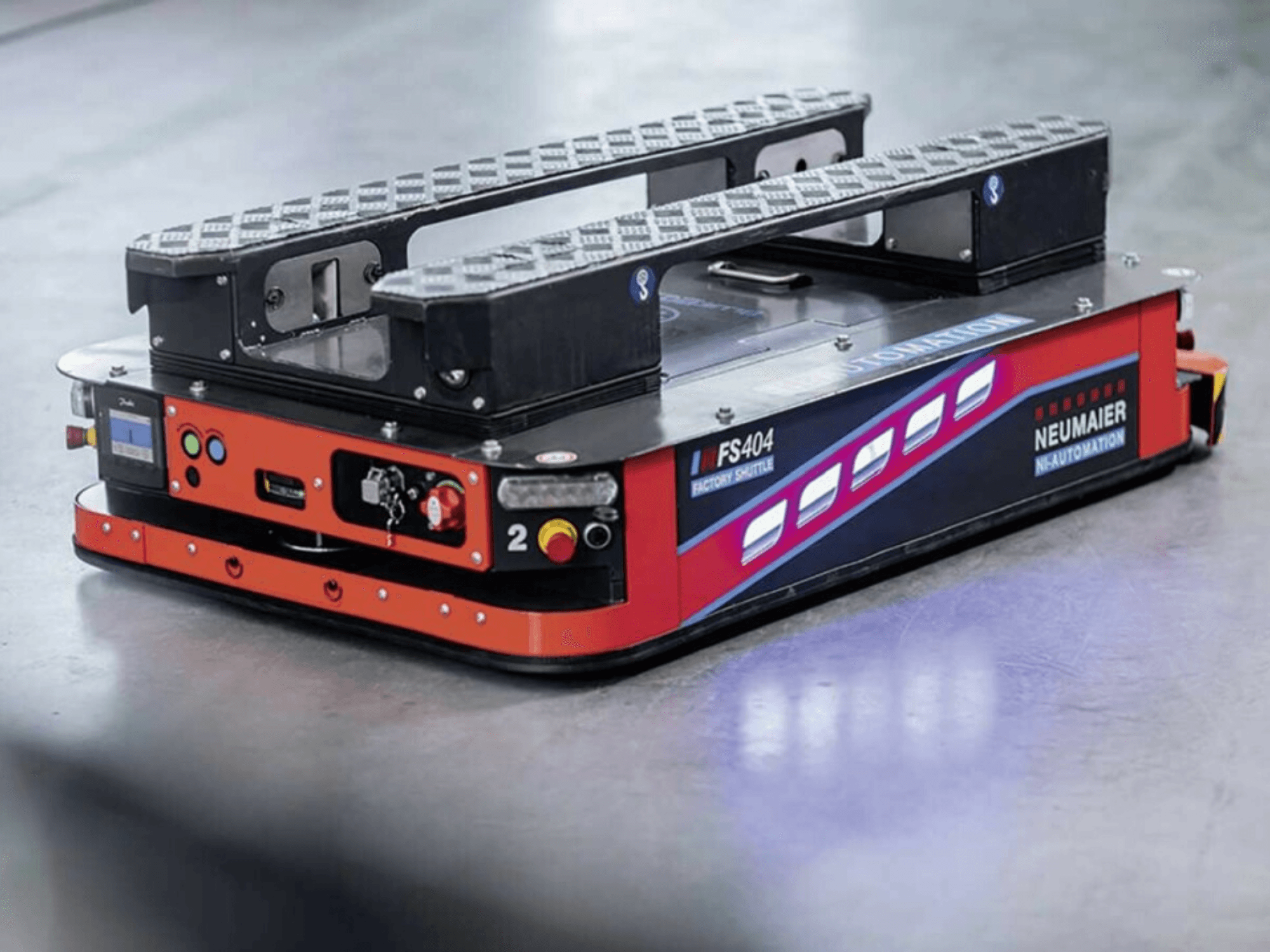

Pallet handling system manufactured in 2023. This NEUMAIER AGV Factory Shuttle FS404 features a payload capacity of 400 kg and dimensions of 830 × 1350 mm. It is equipped with a 2-way drive and steering system, ensuring efficient navigation. The safety features include a PSA laser scanner and a safety bumper for reverse travel. If you are looking to get high-quality pallet handling capabilities, consider the NEUMAIER AGV Factory Shuttle FS404 machine we have for sale. Contact us for further details.
Overview
- brand: NEUMAIER
- year: 2023
- MODEL: AGV Factory Shuttle FS404
- application type: Other Automation Equipment
- Location: Germany
- machine type: Pallet Handling System
Additional Information
Units available: 6
Dimensions: 830 × 1350 mm
Payload capacity: 400 kg
Lift stroke: 100 mm
Drive system: 2-way drive and steering system
Navigation: Geonavigation
Safety: PSA laser scanner PLd; safety bumper for reverse travel
Indicators/HMI: LED status indicator (green/yellow/red); information display
Communication: WLAN (IEEE 802.11 a/b/g/n/ac, 5 GHz); minimum signal strength -60 dB; WPA2 minimum
Battery: LiFePO4, 48 V / 42 Ah; 80% SoC after 7000 full cycles
Charging: Automatic contact charging; up to 48 A; power supply 230 V / 16 A
Software: MFS management software
IT requirements for software: Windows Server 2016 (64-bit) or Windows 10; i7 4-core CPU, 8 GB RAM, 500 GB HDD; graphics OpenGL 3 or DirectX 11
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
