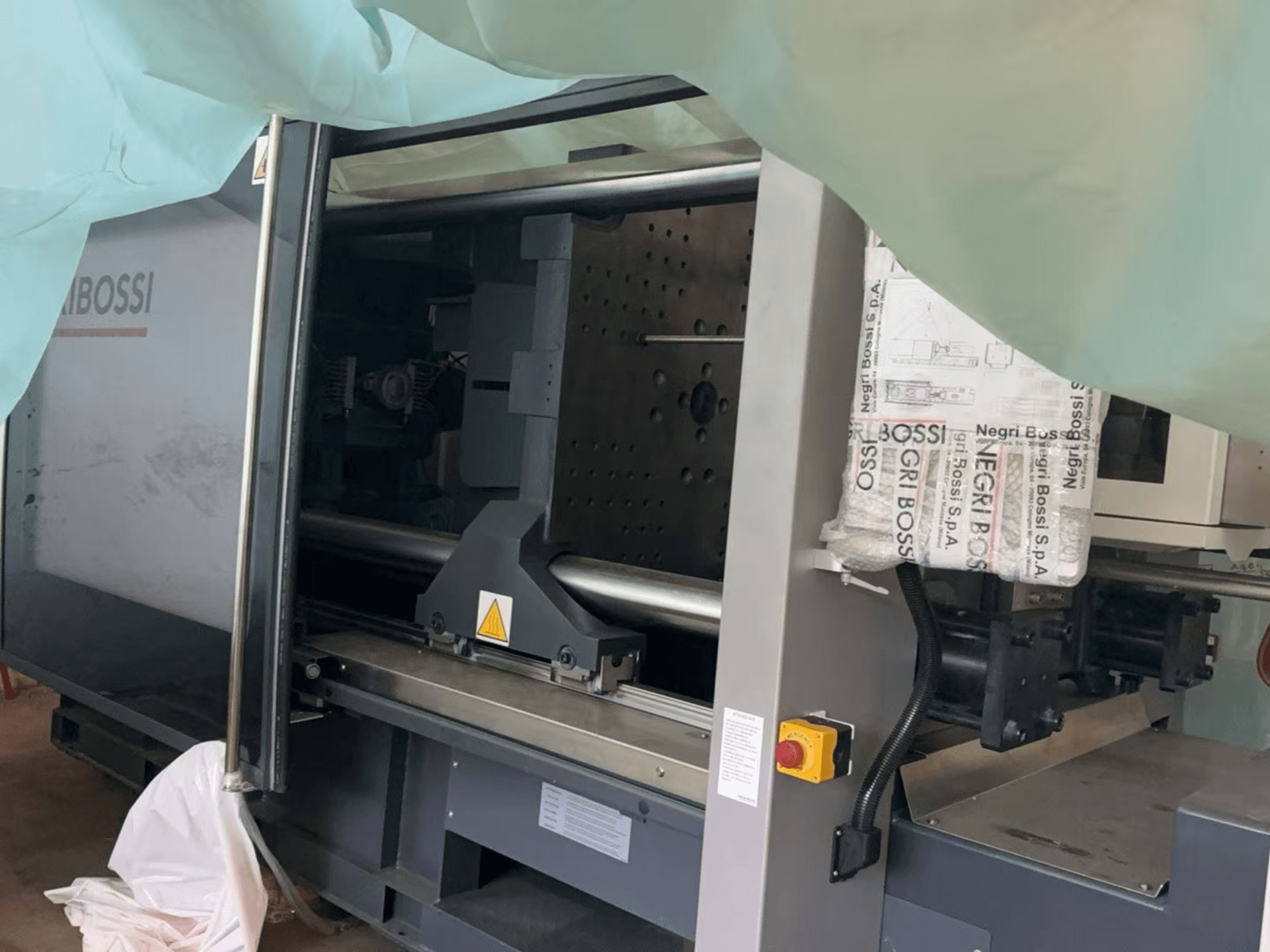

Negri Bossi - NOVA e350T H1550 IT-INJ-NEG-2024-00001

Injection Unit (1550)

• Screw L/D ratio: 20

• Theoretical injection volume: 480 cm³

• Injection speed: 300 mm/s

• Injection rate: 588 cm³/s

• Maximum pressure on material: 2100 bar

• Holding pressure: 1100 bar

• Screw torque: 900 Nm

• Screw speed: 250 rpm

• Plasticising capacity (PS): 56 g/s

• Barrel heating zones: 5

• Heating capacity: 36 kW

• Nozzle contact force: 50 kN

Clamping Unit

• Locking force: 3850 kN

• Max. mould opening stroke: 695 mm

• Min–Max mould height: 350–800 mm

• Platen size: 1110 × 1200 mm

• Tie bar spacing: 820 × 820 mm

• Ejector force: 70 kN

• Ejector stroke: 200 mm

Power

• Total installed power: 216 kW
