NAKAMURA - WT-100IT-TUR-NAK-2019-00001

Name: NAKAMURA WT-100
Brand: NAKAMURA
SKU: IT-TUR-NAK-2019-00001
Price: 136350 GBP
Availability: InStock

£ 136,350

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used NAKAMURA WT-100 For Sale | gindumac.com

Show in original language

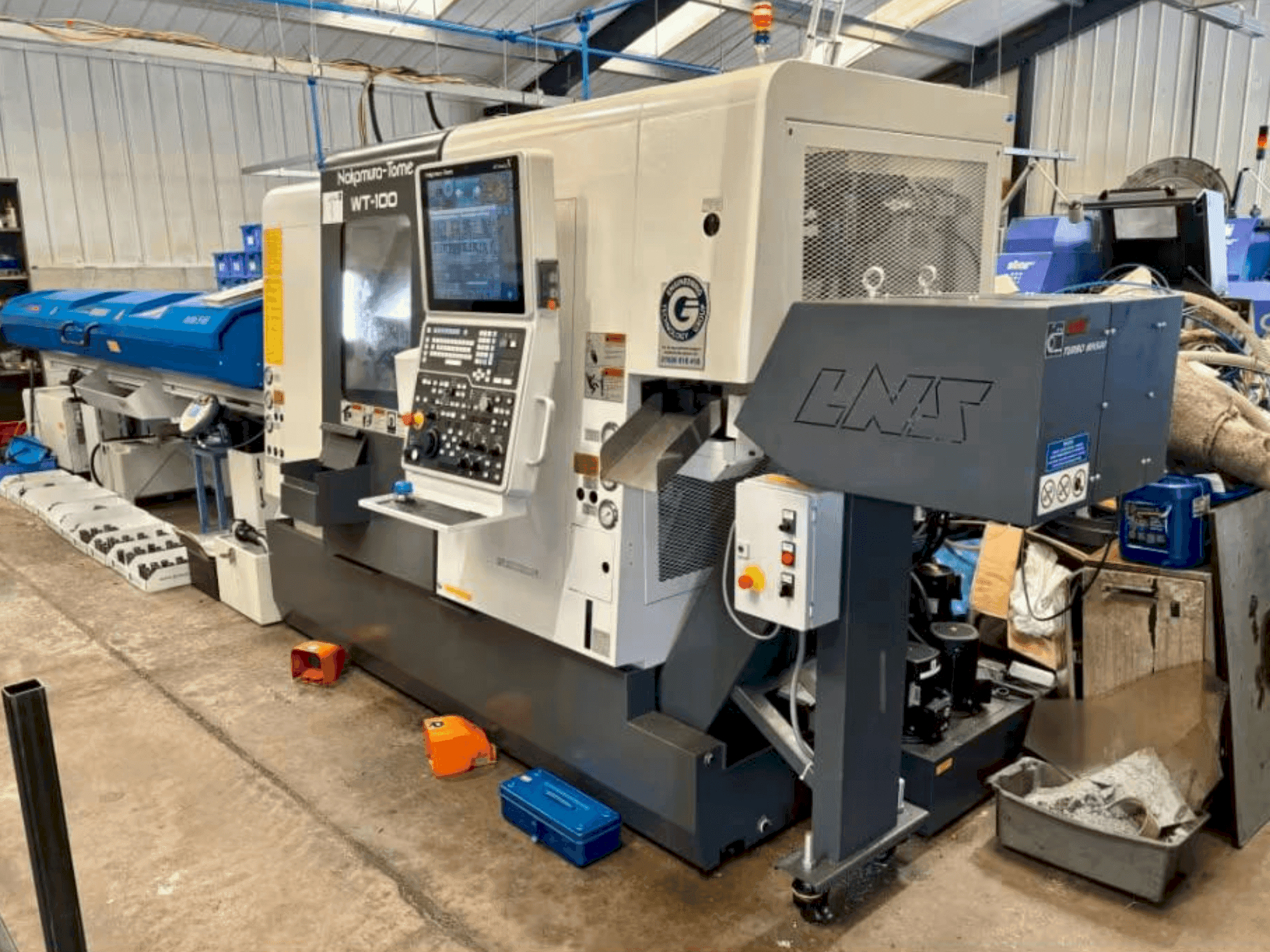

This 6-axis NAKAMURA WT-100 was manufactured in 2019 and features dual spindles with a speed of 6,000 rpm and a motor power of 11/7.5 kW each. It boasts a bar capacity of Ø42 mm and a maximum turning diameter of Ø190 mm. The machine includes a dodecagonal drum turret with 24 indexing positions and rapid traverse rates up to 40 m/min. If you are looking to get high-quality turning capabilities, consider the NAKAMURA WT-100 machine we have for sale. Contact us for more information.

Overview

brand: NAKAMURA
year: 2019
MODEL: WT-100
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine

Technical Information - NAKAMURA WT-100

Main drive

Number of spindles: 2
Spindle speed range: 6000 1/MIN
Number of axis: 6

Movement

Y-AXIS Movement: ±31 mm
Y-AXIS Rapid traverse: 6 m/min
B-AXIS Movement: 525 mm
B-AXIS Rapid traverse: 40 m/min
C-AXIS Rapid traverse: 600 rpm

Additional Information

Main spindle:
- Spindle nose: A2-5
- Through bore: Ø56 mm
Sub spindle:
- Speed: 6,000 rpm
- Spindle nose: A2-5
- Through bore: Ø56 mm
Distance between spindle noses: 735–210 mm
Bar capacity (main/sub): Ø42 mm
Turrets:
- Type: Dodecagonal drum (12 stations)
- Indexing positions: 24
- Standard turning diameter: Ø170 mm
- Maximum turning diameter: Ø190 mm
- Maximum turning length: 503 mm
Tooling:
- Collet chucks: Hardinge A2-5 65DL
- Turning tool shank: 20 × 20 mm
- Boring bar diameter: Ø25 mm
- Driven tooling speed: 6,000 rpm (7.1 / 2.2 kW motor)
Axis travels:
- X1 / X2: 135 mm
- Z1 / Z2: 503 mm
- C-axis: 0.001° increment
Rapid traverse rates:
- X1 / X2: 16 m/min
- Z1 / Z2: 40 m/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
