Muratec - MW 100 GTDE-TUR-MUR-2012-00001

£ 44,943
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

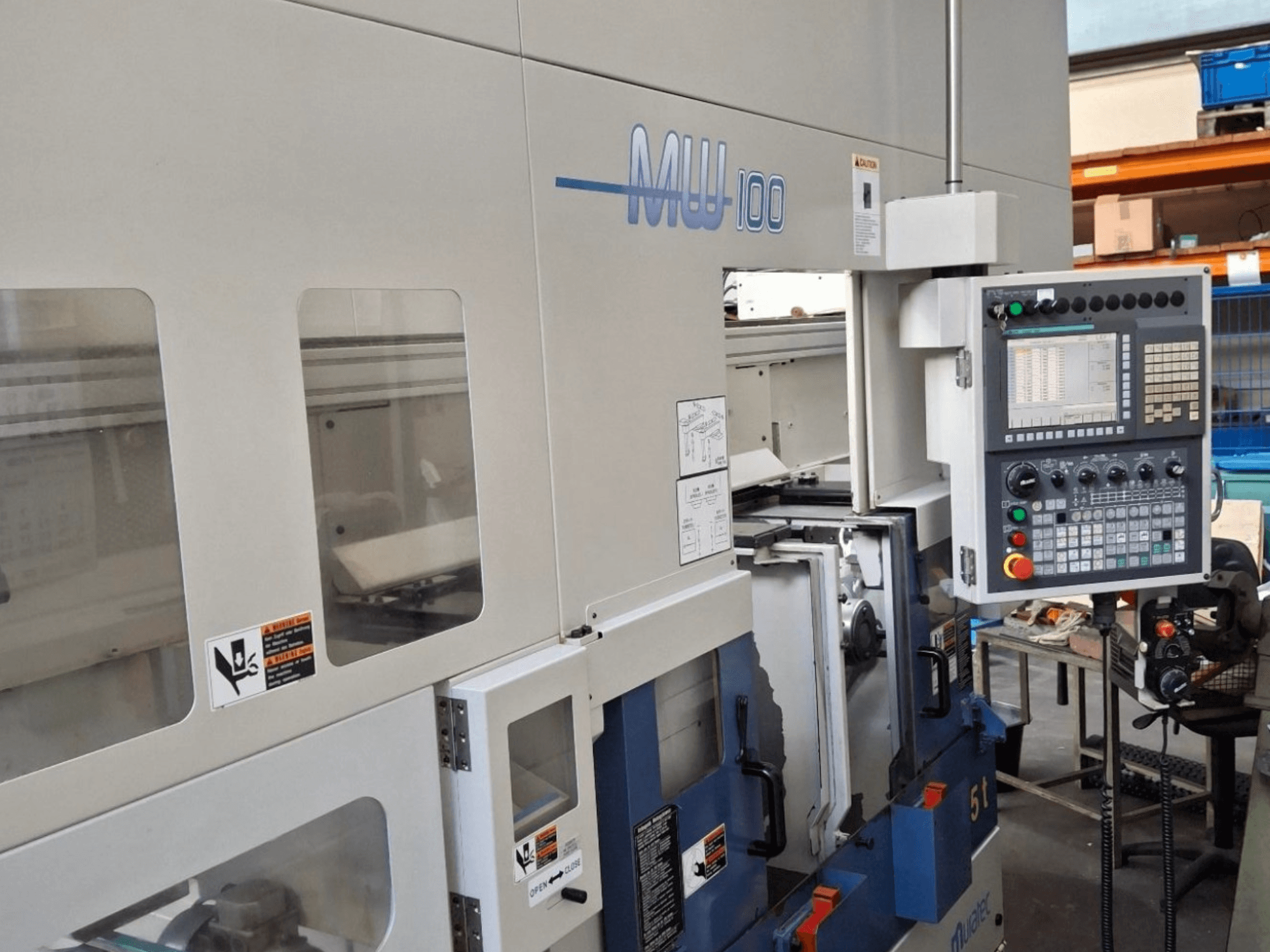

This 4-axis Muratec MW 100 GT multi-spindle turning machine was manufactured in 2012. It features a maximum turning diameter of 168 mm and a turning length of 145 mm. The machine is equipped with two turrets, each with 8 stations, and a gantry loader for efficient operation. If you are looking to get high-quality turning capabilities, consider the Muratec MW 100 GT machine we have for sale. Contact us for further details.

Overview

  • brand: Muratec
  • year: 2012
  • MODEL: MW 100 GT
  • application type: Turning
  • Location: Germany
  • machine type: Multi-Spindle Turning Machine
  • control unit brand: FANUC

Technical Information - Muratec MW 100 GT

Control Unit

  • Control Brand: FANUC
  • Control Model: 31i-TA

Dimensions

  • Machine Height: 2300 mm
  • Machine Length: 1550 mm
  • Machine Weight: 3500 kg
  • Machine Width: 1650 mm

Movement

  • Number of Axes: 4
  • X-axis Travel: 130 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: No
  • Max. Bar Diameter: 47 mm
  • Spindle Power: 5.5 kW
  • Spindle Speed: 6000 RPM

Additional Information

  • Control Model: FANUC 31i-TA

  • Distance Between Spindles: 340 mm

  • Max. Swing Diameter: 295 mm

  • Max. Turning Diameter: 168 mm

  • Max. Turning Length: 145 mm

  • Spindle Nose: JIS A2-5

  • Max. Chuck Diameter: 165 mm (6")

  • Spindle Bearing I.D.: 80 mm

  • Rapid Traverse X-Axis: 24 m/min

  • Rapid Traverse Z-Axis: 24 m/min

  • Number of Turrets: 2

  • Turret Stations: 8

  • Tool Shank Size: 20 x 20 mm

  • Max. Drill Diameter: 40 mm

  • Turret Index Time: 0.2 sec

  • Max. Workpiece Diameter: 80 mm

  • Max. Workpiece Length: 60 mm

  • Jaw Stroke Diameter: 12 mm

  • Max. Workpiece Weight (per Hand): 2.0 kg

  • Standard Loading Time: 4.5 sec

  • Minimum Machining Time: 16 sec

  • Loader X-Axis Travel: 1,420 + 1,420 mm

  • Loader Y-Axis Travel: 435 mm

  • Loader Z-Axis Travel: 135 mm

  • Loader Hand Swivel Range (Alpha Axis): 180°

  • Loader Hand Rotation Speed: 0.4 sec / 180°

  • Rapid Traverse Loader X-Axis: 150 m/min

  • Rapid Traverse Loader Y-Axis: 120 m/min

  • Rapid Traverse Loader Z-Axis: 55 m/min

  • Pallet Capacity: 14

  • Max. Stacking Height: 450 mm

  • Workpiece Diameter Range: 30 - 160 mm

  • Max. Workpiece Weight per Pallet: 40 kg

  • Machine Footprint (with Accessories): 3,300 x 2,380 mm

  • Connected Load: 30 kVA

  • Portal Loader Systems: 2

  • Part Chutes for Inspection Parts: 2

  • Hydraulic Power Chucks: 2 x SMW Autoblok BHM 165, 6"

  • Hydraulic Cylinder (Left): SMW SIN-S 100

  • Hydraulic Cylinder (Right): SMW VNK 70/37

  • Air-Controlled Workpiece Presence Monitoring: Yes

  • Workpiece Clamping Monitoring: Both Sides

  • Spindle Orientation Positions: 4 (Both Sides)

  • Coolant Through Chuck: Both Sides

  • Automatic Coolant Pump Capacity: 200 l

  • 8-Station Turrets: 2

  • Signal Tower Light: Yes

  • Oil Mist Extraction Preparation: Yes

  • Automatic Machine Stop: Yes

  • Automatic Central Lubrication: Yes

  • RS232C Interface: Yes

  • External Transformer: Yes

Optional:

  • Gantry Loader Type: 3-Axis Gantry Loader

  • Chip Conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
