MORI SEIKI - NL2500Y/700DE-TUR-MOR-2008-00002

Name: MORI SEIKI NL2500Y/700
Brand: MORI SEIKI
SKU: DE-TUR-MOR-2008-00002
Price: 26600 GBP
Availability: InStock

£ 26,600

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NL2500Y/700 For Sale | gindumac.com

Show in original language

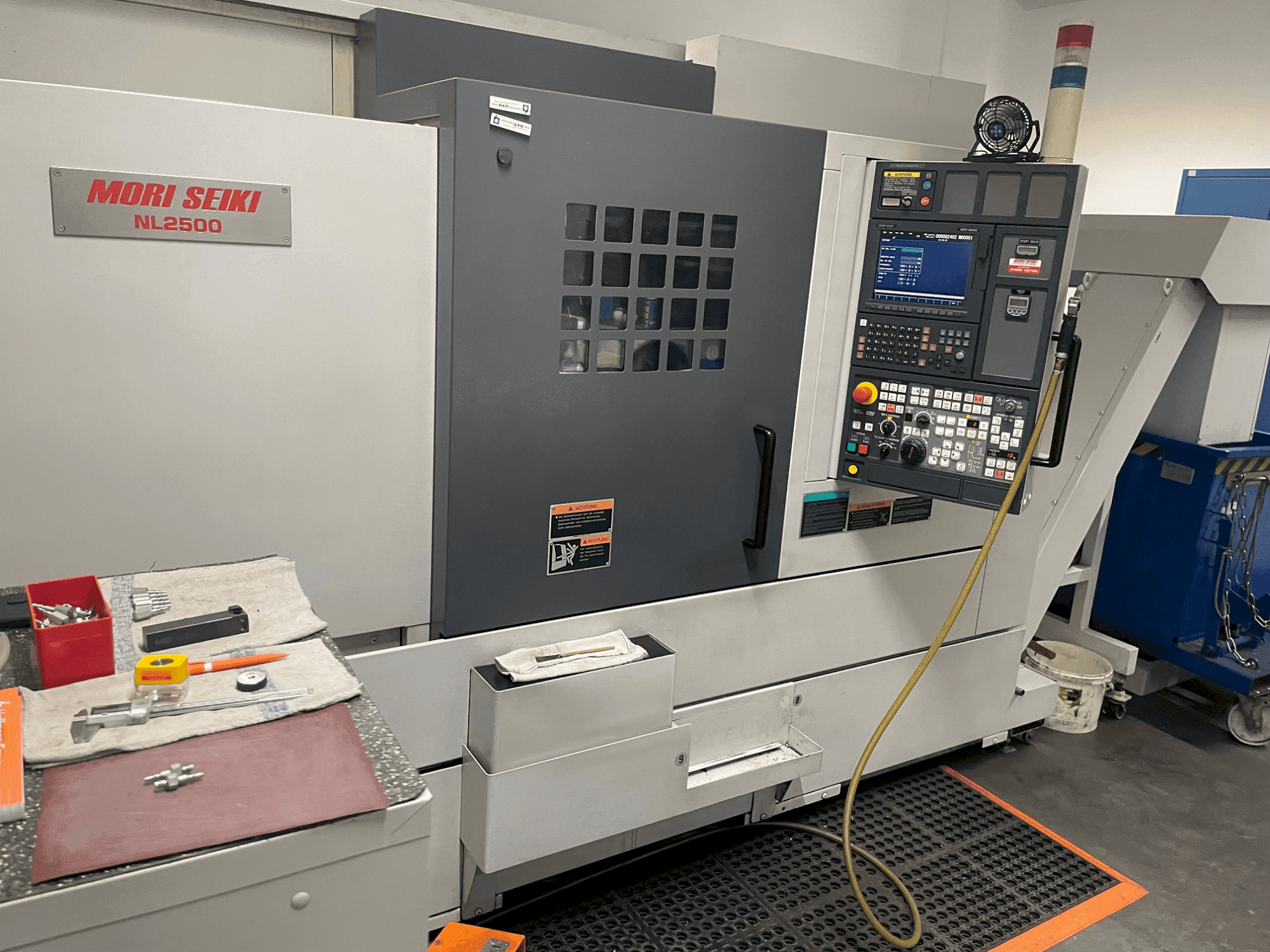

This 4-axis MORI SEIKI NL2500Y/700 was manufactured in 2008. A CNC high-performance lathe featuring a Mitsubishi MSX-850 control and MAPPS III interface, it boasts a maximum turning diameter of 356 mm and a turning length of 705 mm. The machine includes a Y-axis travel of ±50 mm and a spindle speed up to 4,000 min-¹. Ideal for complex machining tasks. Contact us for more information about this machine.

Overview

brand: MORI SEIKI
year: 2008
MODEL: NL2500Y/700
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Immediately
control unit brand: MITSUBISHI

Technical Information - MORI SEIKI NL2500Y/700

General Data

Measurements width: 1922 mm
Measurements depth: 3100 mm
Measurements height: 2120 mm
Machine weight: 6100 kg

Control Unit

Brand: MITSUBISHI
Model: MSX-850

Main drive

Spindle speed range: 4000 1/MIN
Spindle bore: 91 mm
Number of axis: 4

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 795 mm
Z-AXIS Movement: 100 mm

Tools

Number of stations: 12

Additional Equipment

- Optional: driven and fixed tool holder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing diameter over bed: 923. 8 mm // swing diameter over cross slide: 755 mm
- - Max. Turning diameter: 356 mm // standard turning diameter: 275 mm
- - Max. Turning length: 705 mm
- - Spindle diameter in front bearing: 140 mm
- - Spindle mount: jis a₂-8
- - C-axis resolution: 0. 001 degrees
- - Travel: 734 mm
- - Quill diameter: 80 mm
- - Center running center: mk5
- - Fixed center (option): mk3/mk4

Extra information

- Tools Number of tool stations: 12 (standard) Shank cross-section for turning tools: 25 × 25 mm Max. shank diameter for boring bar holder: 50 mm (single), 32 mm (double, option) Max. speed of driven tools: 6000 min-¹ Drive power: 5.5 kW (3 min), 5.5 kW (5 min), 3.7 kW (continuous operation) 2 units available Coolant tank capacity: 246 liters Connected load: 36.4 kVA (without options)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
