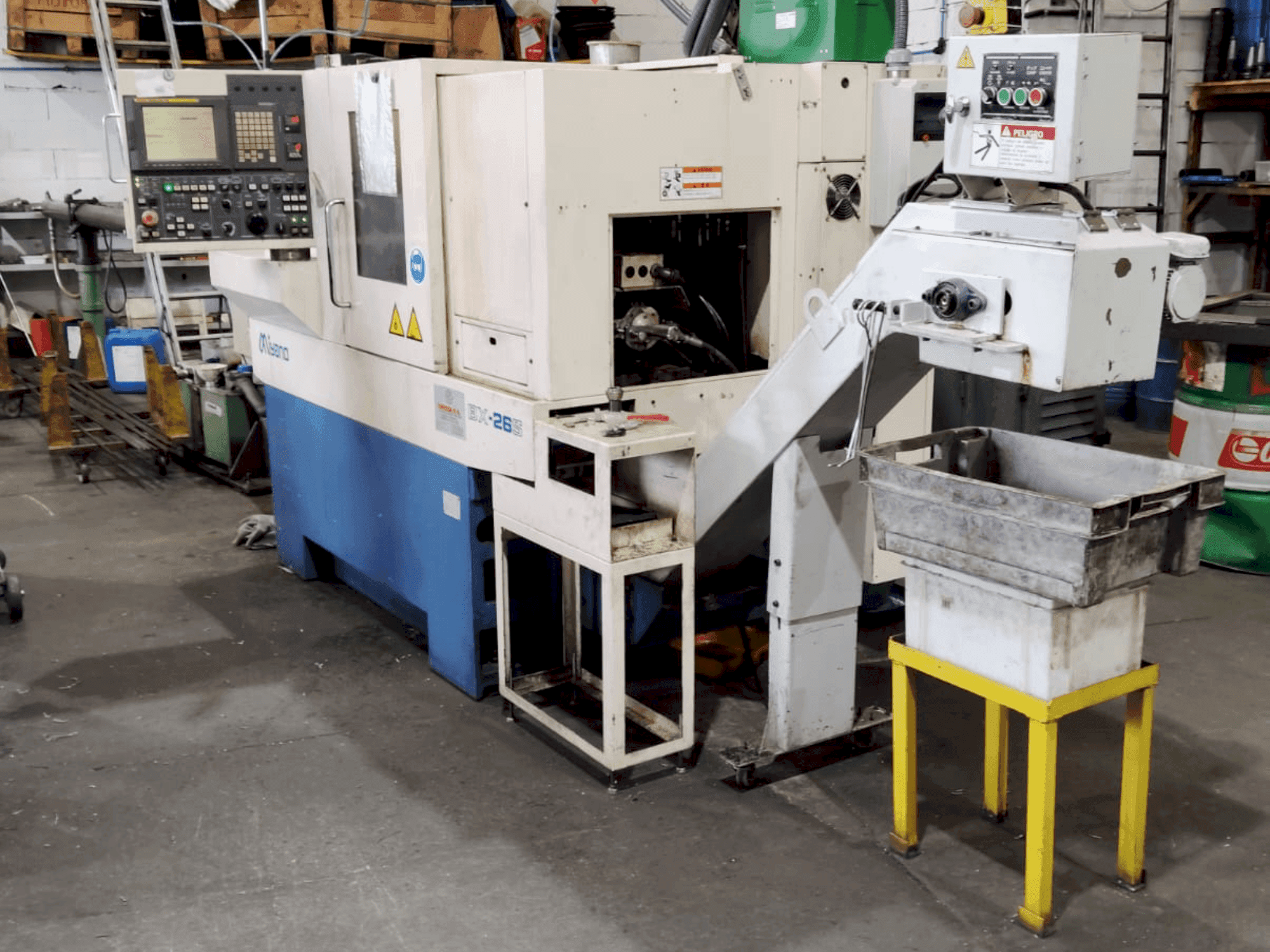

This 6-axis Miyano BX-26S was manufactured in 2010, featuring a maximum blank diameter of Ø26 mm and a maximum working length of 330 mm. It includes a dual-spindle setup with rotation speeds up to 8000 rpm and a linear turret with 18 total tools. The machine is equipped with a FANUC 18i-TB control system, supporting 6 controlled axes and 4-axis simultaneous interpolation. If you are looking to get high-quality turning capabilities consider the Miyano BX-26S machine we have for sale. Contact us for more information.
Overview
- brand: Miyano
- year: 2010
- MODEL: BX-26S
- application type: Turning
- Location: Spain
- machine type: Swiss Type Turning Machine
- availability: Immediately
Technical Information - Miyano BX-26S
General Data
- Measurements width: 1670 mm
- Measurements depth: 2140 mm
- Measurements height: 1000 mm
- Machine weight: 1350 kg
Main drive
- Spindle speed range: 8000 1/MIN
- Spindle motor power: 3.7 / 2.2 kW
- Number of axis: 6
Movement
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Rapid traverse: 24 m/min
Tools
- Number of index: 18
Additional Information
- Technical Machine Benefits:
- - Maximum blank diameter: Ø26 mm (Ø20 mm for bx-20s)
- - Maximum working length: 330 mm
- - Bed type: flat
- - Turret Turret Type: Linear Total Number of Tools: 18 Rotating Tools (Slide 1 / Slide 2): 6 / 4 Flat Tools (Slide 1 / Slide 2): 4 / 4 Tool Size: Slide No.1: Ø16 mm Slide No.2: Ø16 mm Tapping Capacity (L-SP / SP): M8 Drilling Capacity (L-SP): Ø12 mm Injection Unit Chuck Sleeve Type: AR-16 Chuck Sleeve: AR-16 Clamping Force Thrust Force (Z1 / Z2 L-SP and R-SP): 3325 N Other Axes: 1847 N Movement Slide No.1 Travels: X1: 135 mm Y1: 260 mm Z1: 70 mm Slide No.2 Travels: X2: 215 mm Y2: 75 mm Z2: 180 mm Media Tank Capacities: Hydraulic: 10 L Coolant: 140 L Electrical Specifications: Power Supply Capacity: 20 KVA Voltage: AC200/220V Frequency: 50/60 Hz Required Air Pressure: 0.5 MPa Fuse Capacity: 40 A Control Unit Numerical Control (NC) System: FANUC 18i-TB Controlled Axes: 6 axes (X1, Z1, Y1, C1, X2, Z2, Y2, C2) Simultaneous Interpolation: 4 axes Commands: G00, G01, G02/G03, G32, G04, G98/G99 Special Functions: Tool compensation, repetitive cycles, macro programming, backlash compensation Display: 9.5" CRT Operation Panel: Flat keyboard Input/Output: RS-232-C Electric Motors: Spindles (L-SP / R-SP): 3.7 / 2.2 kW Slides (X1, Y1, Z1, Y2, X2, Z2): 0.5 – 0.75 kW Rotating Tool: 0.5 kW Hydraulic Motor: 0.75 kW Coolant Pump: 0.2 kW High-Pressure Coolant Pump: 0.821 / 1.349 kW
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
