➤ Used Mitsui Seiki HR8A For Sale | gindumac.com

Show in original language

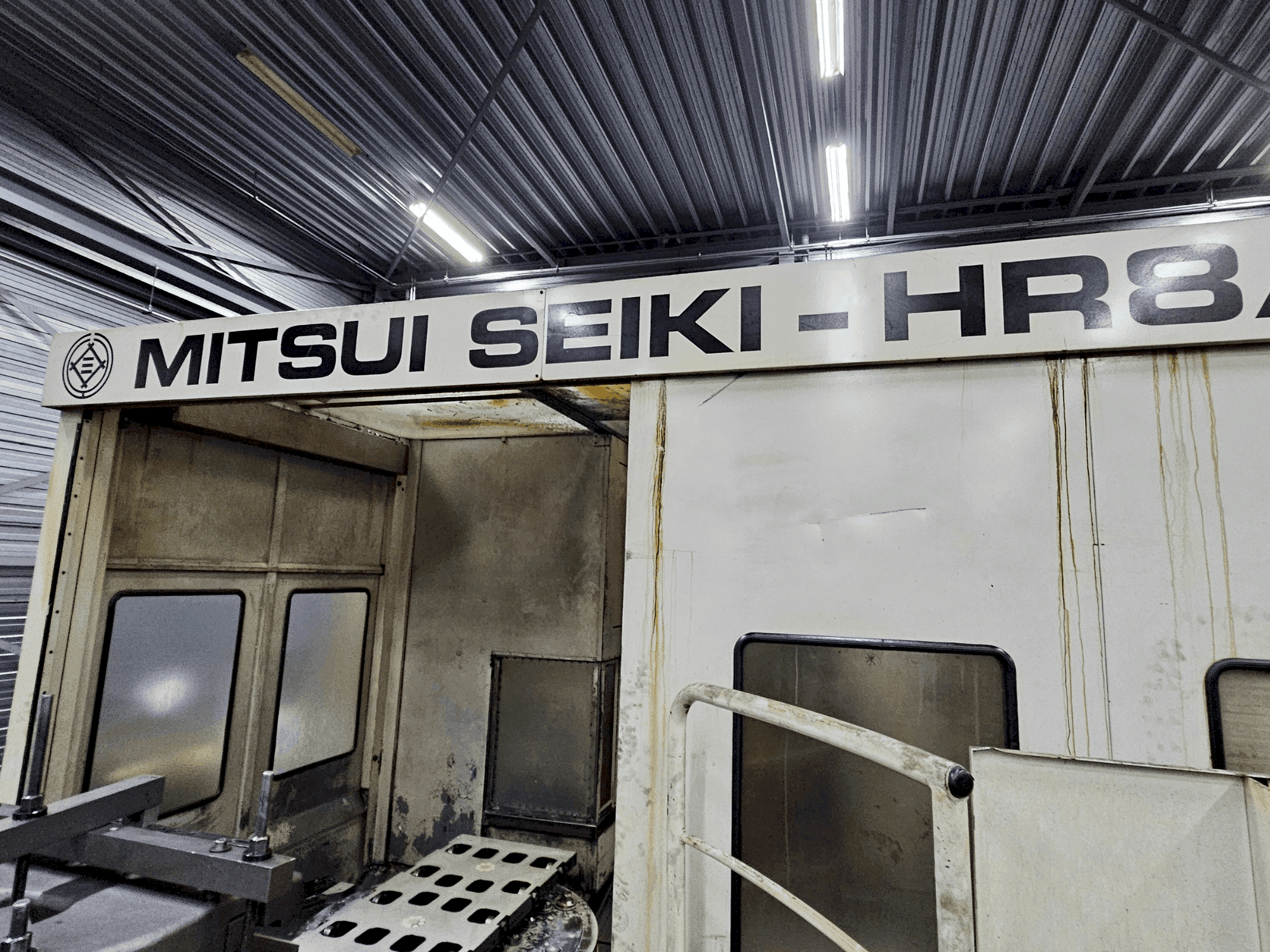

This 4-axis Mitsui Seiki HR8A horizontal machining centre was manufactured in 1989. It features a Fanuc 11MF control, a 3-pallet system with pallets measuring 1300 x 1300 mm, and a maximum pallet load of 4000 kg. The spindle supports ISO 50 taper, achieves speeds up to 3150 rpm, and delivers 1980 Nm of torque. Additional features include a 270-position tool magazine and a chip conveyor. If you are looking to get high-quality machining capabilities, consider the Mitsui Seiki HR8A machine we have for sale. Contact us for more information.

Overview

brand: Mitsui Seiki
year: 1989
MODEL: HR8A
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - Mitsui Seiki HR8A

Control Unit

Control Brand: FANUC
Control Model: 11MF

Dimensions

Machine Depth: 12000 mm
Machine Height: 5500 mm
Machine Weight: 45000 kg

Movement

Number of Axes: 4
X-axis Travel: 1800 mm
Y-axis Travel: 1500 mm
Z-axis Travel: 1200 mm

Technical Specification

Max. Tool Weight: 30 kg
Spindle Power: 30 kW
Spindle Speed: 3150 RPM
Taper Size: ISO 50

Additional Information

Additional equipment

Equipped with Linear Scale Feedback System X,Y,Z
Renishaw Probing OMP 60
Total 5-pallets
Tool Magazine Positions: 270

Machine Benefits

Qualitative Machine Benefits

Installed new in 1999

Technical Machine Benefits

Spindle torque: 1980 nm
Spindle bearing diameter: 120 mm
Table indexing b: 0. 001 degrees
Number of pallets in system: 3-pallets
Pallet size: 1300 x 1300 mm
Pallet load: 4000 kg
Tool-to-tool time: 15 sec.
Chip-to-chip time: 25 sec.
Coolant through the spindle: 20 bar

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
