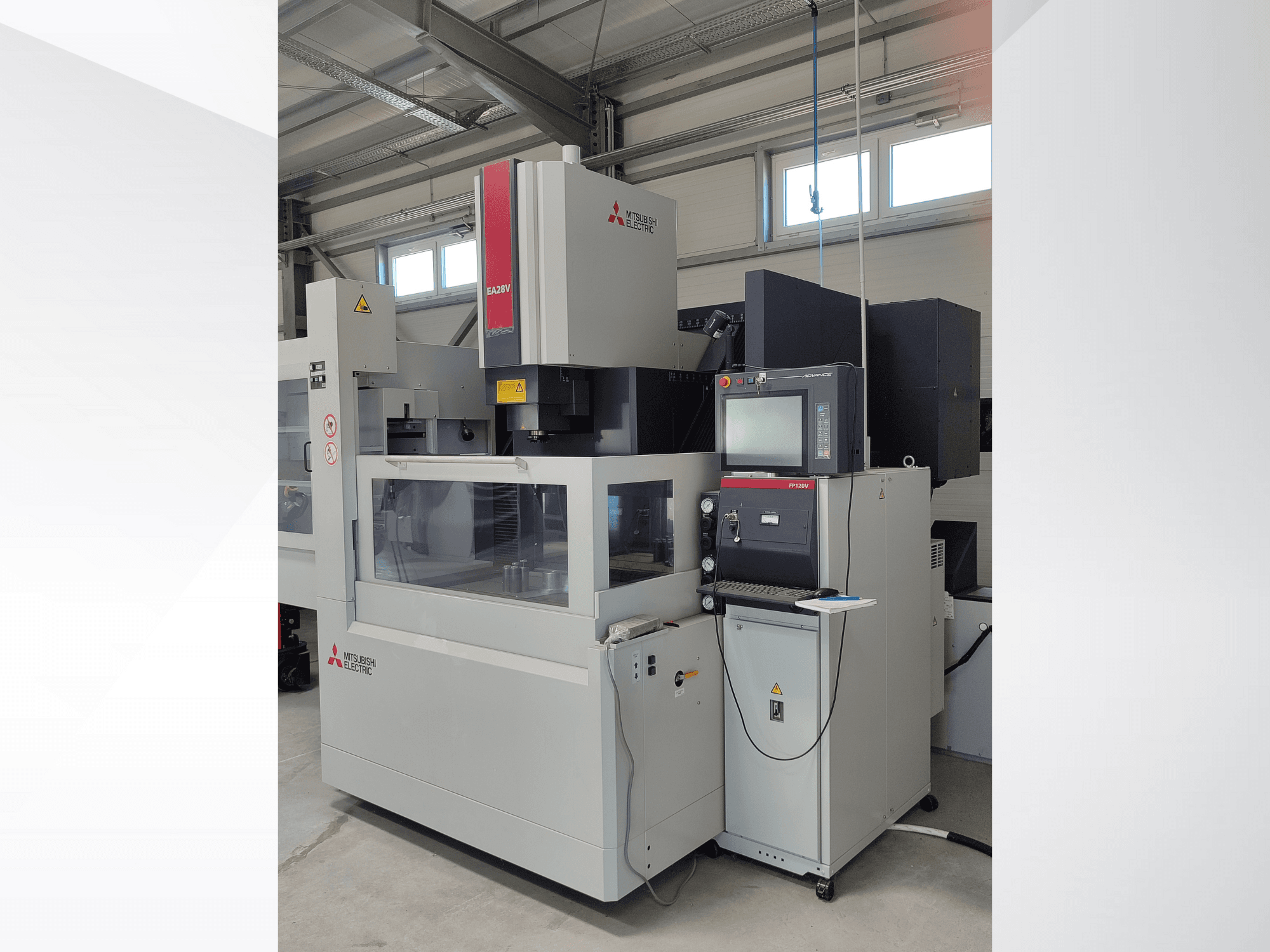

Mitsubishi - EA28V ADVANCERO-EDM-MIT-2019-00001

Additional information

• CNC Mitsubishi Advance M700 with 15” touchscreen

• Pre-installed 3D CAD/CAM software

• Programming system: ESPER II / FUZZY PRO Plus / Orbit Pro MF Adaptor

• Communication interfaces: Ethernet TCP/IP, 2× USB ports

• Supports import of Parasolid 3D files

• Axis Travels X / Y / Z: 650 × 450 × 350 mm

• C-axis: controlled, equipped with EROWA quick-release system

• Max. workpiece size: 1050 × 760 × 350 mm

• Max. workpiece weight: 2000 kg

• Clamping surface: 850 × 600 mm

• High-performance FP120V / FP-V generator

• Hybrid carburetor technology with Fuzzy Logic control

• Total power consumption: 16500 kVA

• Energy saving: up to 20% reduced power usage

• Electrode wear reduction: up to 50% when machining tungsten carbide

• Thermal stabilization system for high precision

• Machining accuracy: ±0.003 mm (0.00011”)

• Dimensions of Machine (LxWxH)

  • Approx. 1615 × 2030 × 2075 mm

  • Total weight: 2000 kg

• Integrated fire extinguishing unit

• Automatic central lubrication system

• Generator and console can be positioned on either left or right side

• Fully automatic lowering dielectric tank

• Dielectric fluid circulation system for stable temperature control

• Reservoir capacity: approx. 165 L (IONO Plus dielectric oil)

• Ergonomic access to the working area due to completely retractable tank

• ER-009219 electrode holder set (12 pcs)

• ER-015465 electrode clamp set

• EROWA Macro / Macro Jr compatible

• IONO Plus dielectric oil
