➤ Used MILLUTENSIL Mil 303 - Press For Sale | gindumac.com

Show in original language

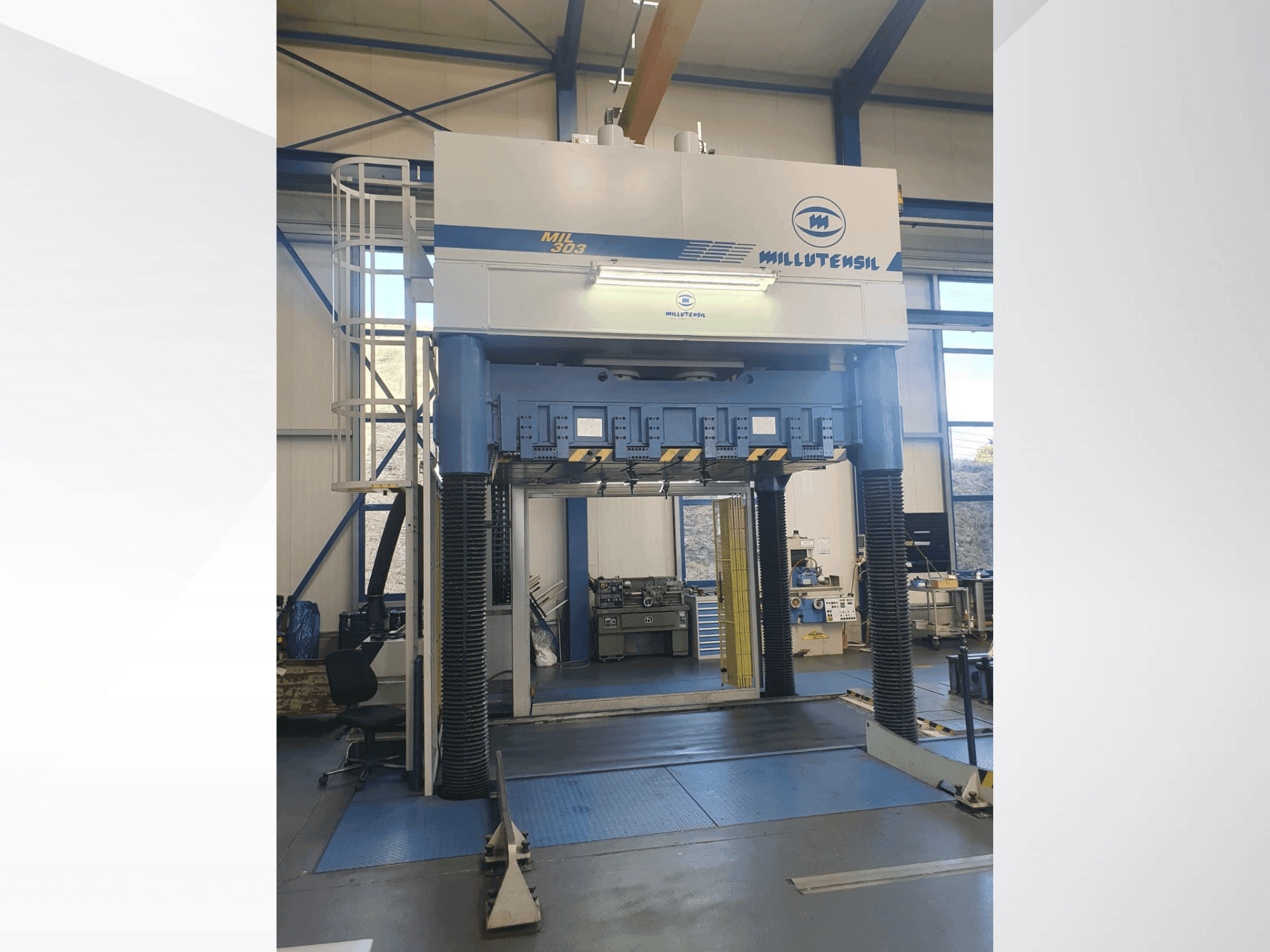

This MILLUTENSIL Mil 303 hydraulic press was manufactured in 2012. It features a usable table of 3000 mm by 2000 mm, with a maximum load capacity of 30,000 kg on the upper table and 70,000 kg on the lower table. The press operates with a total power of 31.1 kW and offers adjustable hydraulic pressure up to 240 bar. Consider the opportunity to buy this MILLUTENSIL Mil 303 hydraulic press. Contact us for more information.

Overview

brand: MILLUTENSIL
year: 2012
MODEL: Mil 303
application type: Bending
Location: Germany
machine type: Hydraulic Press

Technical Information - MILLUTENSIL Mil 303

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Usable table length: 3000 mm / usable table width: 2000 mm / max. Distance between columns lengthwise: 2130 mm / max. Distance between columns widthwise: 3200 mm / t-slots in the tables: 28 mm (din 650)
- - Max. Opening force: 800 kn / max. Closing force: 3000 kn / upper table rotation: 100-180 degrees
- - Hydraulic pressure, adjustable from 0-240 bar
- - Approach speed (fast): 65-80 mm/sec. / operating speed: 8 mm/sec. / return speed: 35-50 mm/sec. / upper main motor power: 30 kw / upper auxiliary motor power: 1. 1 kw / total press power: 31. 1 kw / max. Load on upper table: 30000 kg / max. Load on lower table: 70000 kg / total press weight: 85000 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
