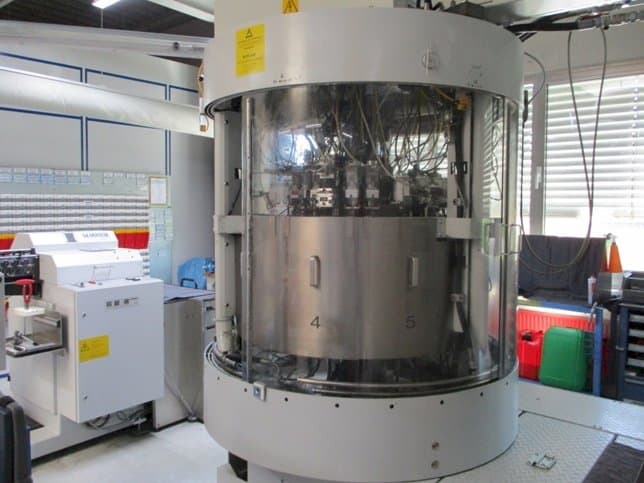

MIKRON Multistar CX-24 Rotary Transfer Machine

Show in original language

This MIKRON Multistar CX-24 Rotary Transfer Machine was built in the year 2015. This machine stands out for its precise performance and speed. The Multistar CX-24 transfer machine supports serial production of part families and workpieces which demand perfect processing. The Multistar CX-24 controls the spindle movements via linear curves. The quickly changeable control curves provide processing flexibility.

Overview

brand: MIKRON
year: 2015
MODEL: Multistar CX-24
application type: Other (MT)
Location: Germany
machine type: Other
availability: Sold
GINDUMAC ID: DE-OTH-MIK-2015-00001

Technical Information

General Data

Measurements width: 1950 mm
Measurements depth: 5200 mm
Measurements height: 2900 mm
Machine weight: 4500 kg

Main drive

Spindle speed range: 23000 1/MIN

Tools

Number of stations: 24

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter 40 mm
- - Max. Upper working units: 23
- - Max. Lateral working units: 22
- - Max. Lower working units: 22
- - Number of workpiece holders: 24/48
- - Max workpiece dimension: mm ø 30 l65
- - Max clamping diameter: mm 30
- - Max. Clamping diameter rotating: mm 15
- - Max machining length 53 mm
Qualitative Machine Benefits:
- - Linear curve for working feed of the units
- - Rotation of the workpiece (tensioning drive)
- - Connection to central oil mist extraction
- - 4 high pressure flushing units

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
