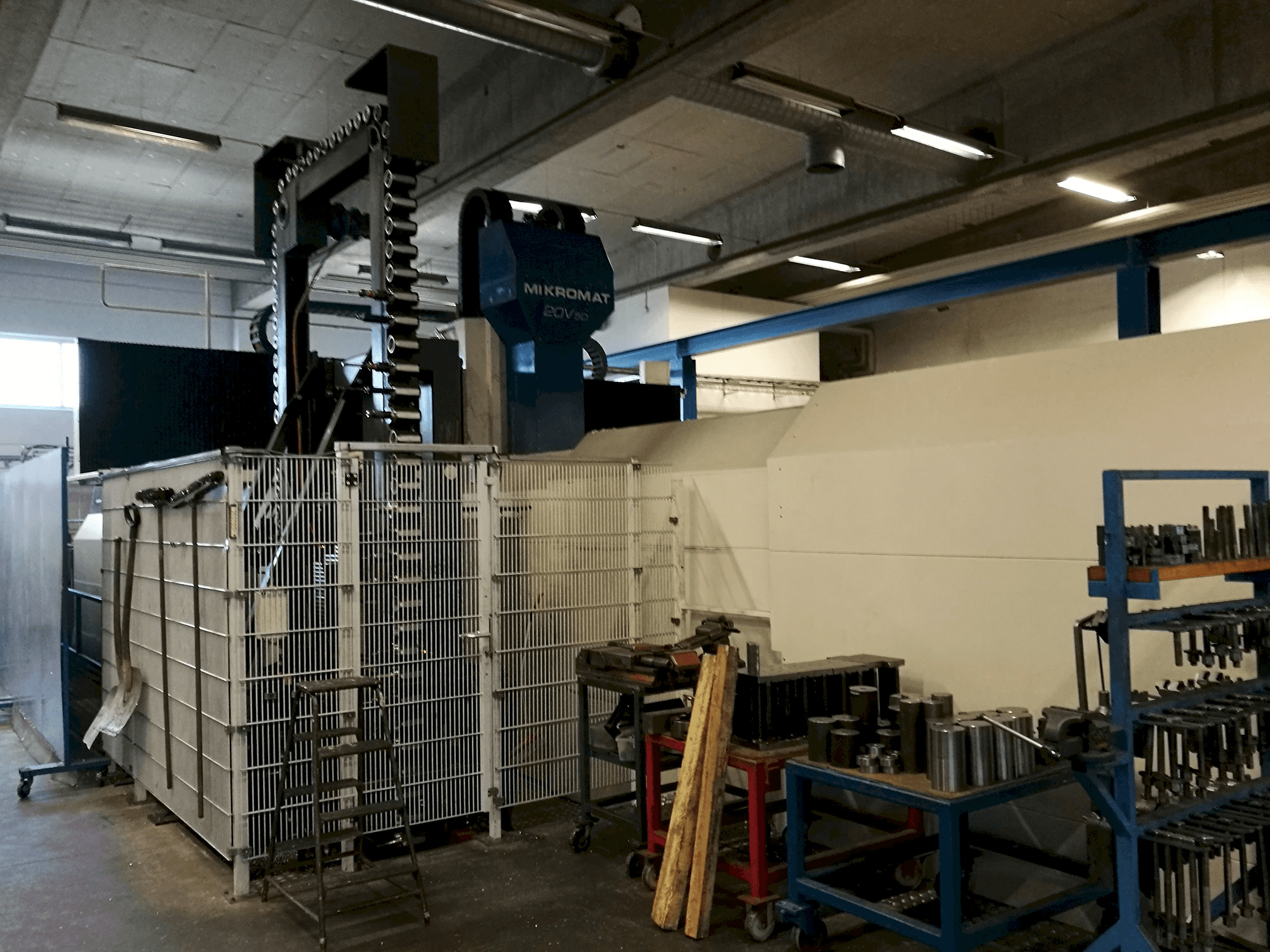

MIKROMAT 20V 5D

Photo Gallery

MIKROMAT - 20V 5DSE-MIL-MIK-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MIKROMAT 20V 5D Milling Machine

Show in original language

This MIKROMAT 20V 5D Milling Machine was produced in the year 2007 in Germany and counts with approximately 15000 working hours. Equipped with a SIEMENS SINUMERIK 804 D Control unit, this machine counts with 2 spindles, capable of working up to 24000 rpm. This model incorporates an extra table and extra tool slots.

Overview

brand: MIKROMAT
year: 2007
MODEL: 20V 5D
production hours: 15000
application type: Milling
Location: Sweden
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - MIKROMAT 20V 5D

Control Unit

Control Brand: SIEMENS
Control Model: SINUMERIK 804 D

Dimensions

Machine Depth: 6400 mm
Machine Height: 5500 mm
Machine Weight: 80000 kg
Table Length: 5000 mm
Table Width: 2400 mm

Movement

X-axis Travel: 5700 mm
Y-axis Travel: 3400 mm
Z-axis Travel: 1250 mm

Technical Specification

Max. Tool Weight: 25 kg
Spindle Speed: 24000 RPM
Through-spindle Coolant: Yes
Tool Stations: 90

Additional Information

Additional equipment

Extra table

Machine Benefits

Qualitative Machine Benefits

The high speed spindle is brand new

Technical Machine Benefits

The two heads are equipped with hsk63 and hsk100.
The machine is very robust

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
