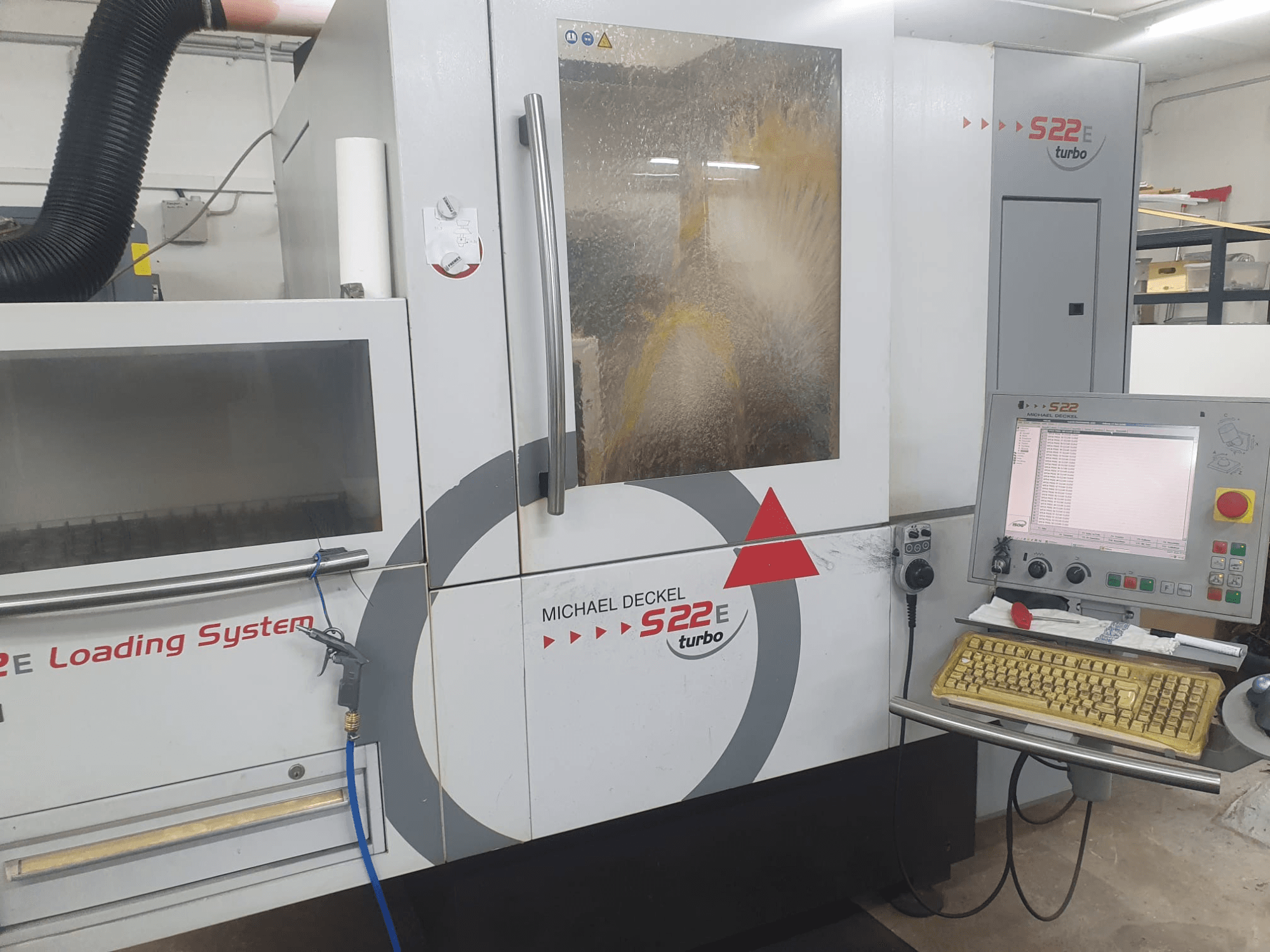

This 5-axis Michael Deckel S22 was manufactured in 2005. It features a maximum grinding wheel diameter of 150 mm and a spindle speed range of 300 to 8000 rpm. The machine has a robust weight of 3800 kg and includes a cooling/filtration system from Transor Filter GmbH. If you are looking to get high-quality internal grinding capabilities, consider the Michael Deckel S22 internal grinding machine we have for sale. Contact us for further details.
Overview
- brand: Michael Deckel
- year: 2005
- MODEL: S22
- application type: Grinding
- Location: Germany
- machine type: Internal Grinding Machine
Technical Information - Michael Deckel S22
Dimensions
- Machine Weight: 3800 kg
Movement
- Number of Axes: 5
- X-axis Travel: 400 mm
- Y-axis Travel: 310 mm
Technical Specification
- Max. Tool Weight: 50 kg
- Max. Workpiece Diameter: 250 mm
- Spindle Speed: 8000 RPM
Additional Information
Operating voltage: 3 × 400 V
Electrical connection: 3P / N / PE
Frequency: 50 / 60 Hz
Nominal current: 25 A
Fuse protection: 32 A
Power consumption: 15 kW
Control voltage: 24 V DC
Spindle speed: 300 – 8000 RPM
Control: Michael Deckel S22
Grinding spindle speed: continuously variable
Direction of rotation: right and left
Working speed: 40 m/s
Max grinding wheel diameter: 150 mm
Grinding wheel width max: 20 mm
Grinding heads: cylindrical and conical
Max diameter: 125 mm
Width: 50 mm
Clamping and grinding range
Max workpiece length: approx. 900 mm
Max grinding length: approx. 400 mm
Max grinding length in work programs: approx. 320 mm
Tool holder taper: SK50
X-axis feed: 12 m/min
Y-axis feed: 12 m/min
Additional equipment

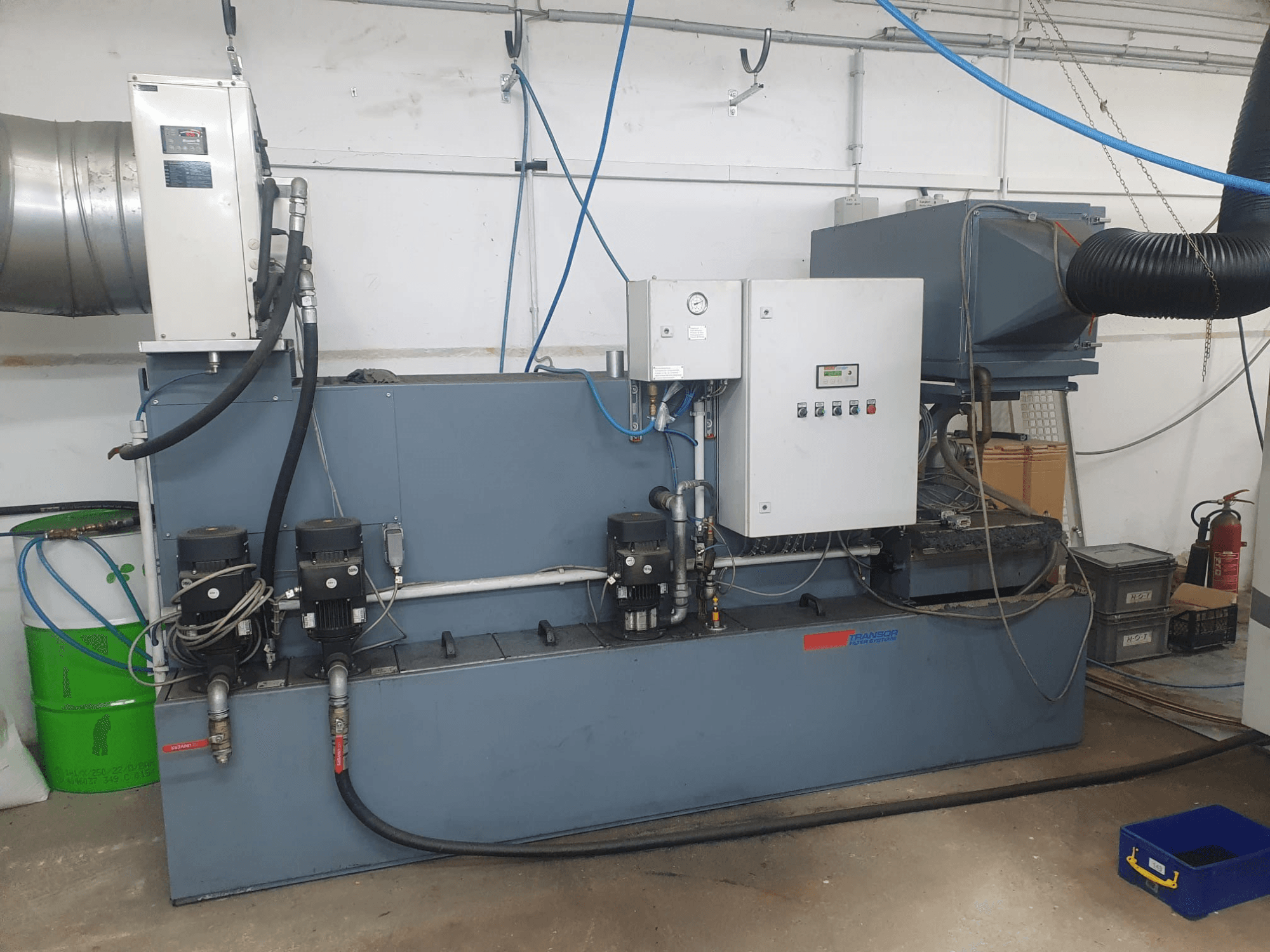

Cooling/filtration system: Transor Filter GmbH (2007)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
