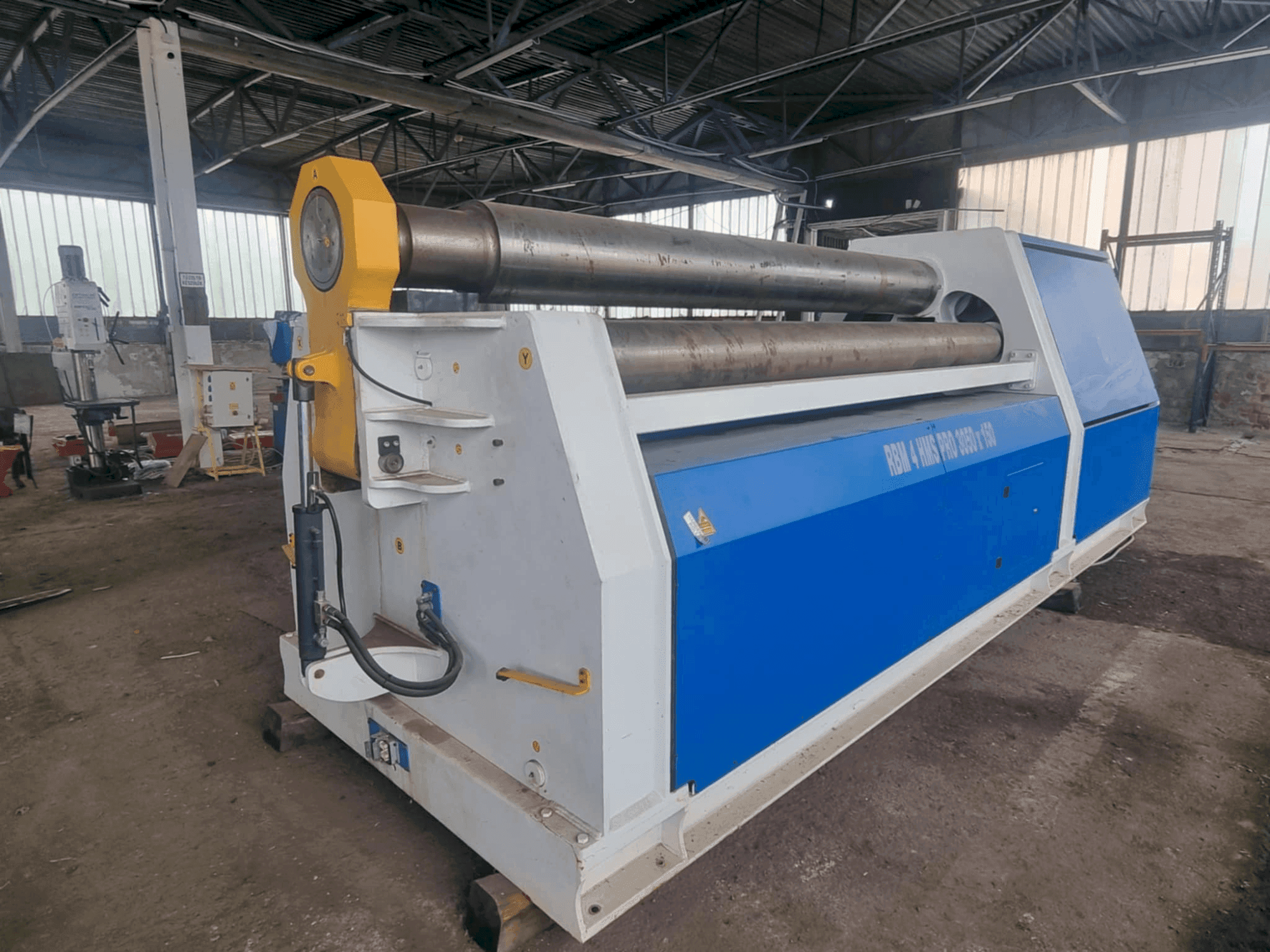

Metallkraft - RBM 4 HMS Pro 3050-150HU-ROL-MET-2022-00001

Additional equipment

• Teach-In NC control for automated bending processes (optional)
• Mechanical auxiliary arm for handling heavy workpieces (optional)
• Hydraulic side supports for stabilizing long sheets (optional)
• Infinitely adjustable bending speed (optional)

Machine Benefits

Qualitative Machine Benefits

• Three digital displays for precise adjustment of the roller position
• Hydraulic folding plate for easy removal of the finished workpiece
• Movable control panel for comfortable operation
• Conical bending option
• Hydraulic balancing system for the rollers to ensure parallelism
• Safety emergency stop system

Technical Machine Benefits

• Maximum working width: 3050 mm
• Upper roller diameter: 300 mm
• Rolling speed: 1. 5 – 5 m/min
• Minimum bending diameter: 450 / 1500 mm
• For steel with 400 n/mm² strength, the machine allows pre-bending of 10/12 mm, full bending of 12/15 mm, and conical bending of 6/7. 5 mm.
• For stainless steel (va), the machine allows full bending of 9/11. 2 mm and conical bending of 4. 5/5. 6 mm.
• For aluminum, the machine allows full bending of 14. 4/18 mm and conical bending of 7. 2/9 mm.
• Heavy, robust welded construction for industrial use
• Induction-hardened rollers, suitable for bending stainless steel
• Hydraulic drive for the upper roller with planetary gear

Extra Information

Technical Specifications Maximum working width: 3050 mm Upper roller diameter: 300 mm Rolling speed: 1.5 – 5 m/min Drive motor power: 11 kW Minimum bending diameter: 450 / 1500 mm Bending Capacities Steel (400 N/mm²): Pre-bending: 10 / 12 mm Full bending: 12 / 15 mm Conical bending: 6 / 7.5 mm Stainless steel (VA): Full bending: 9 / 11.2 mm Conical bending: 4.5 / 5.6 mm Aluminum: Full bending: 14.4 / 18 mm Conical bending: 7.2 / 9 mm
