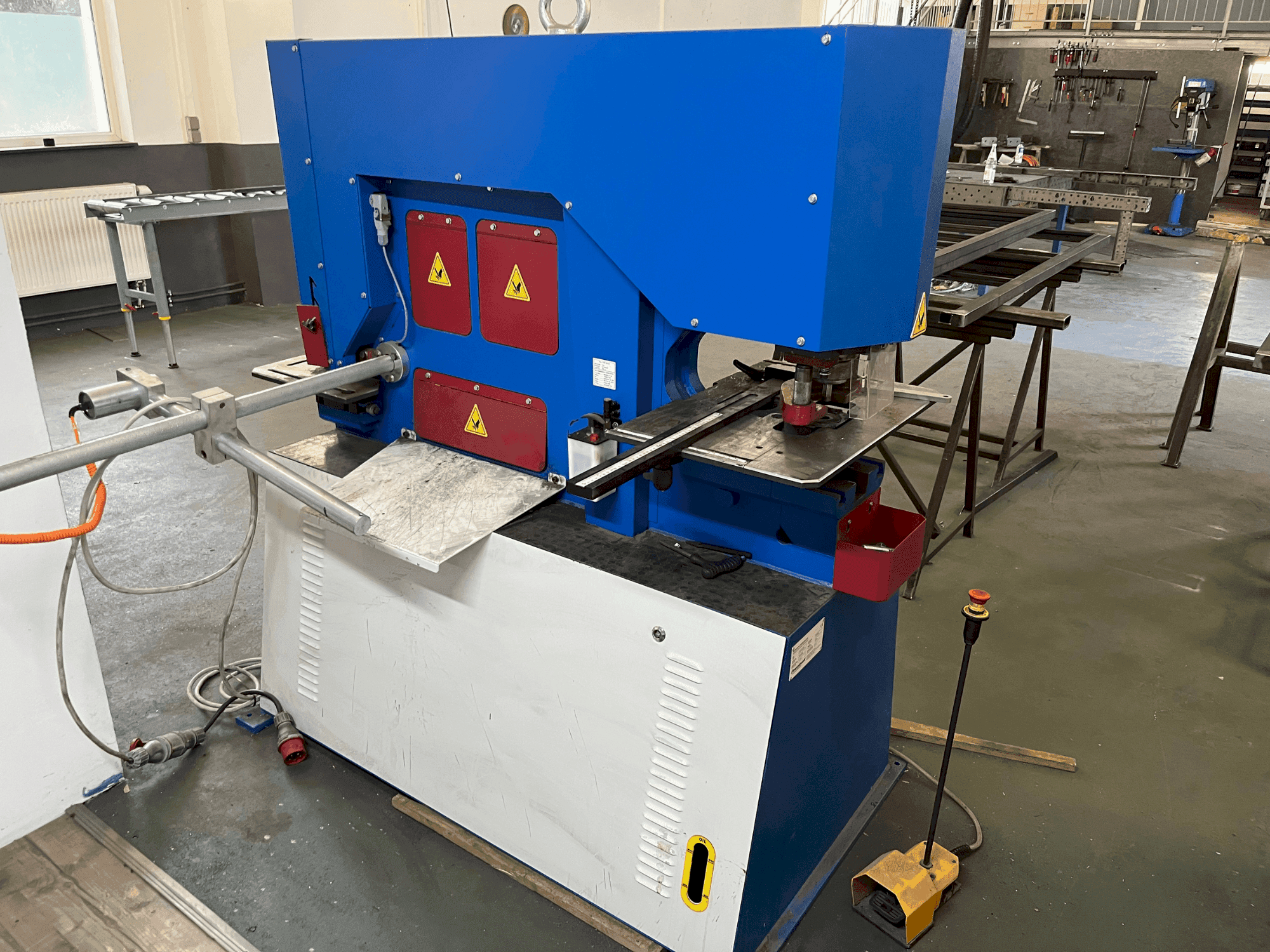

Metallkraft - HPS 65 DSDE-PUN-MET-2014-00001

Additional Equipment

• - Punching station with adjustable punch holder and bayonet lock
• - Various punch and die reducers
• - Equipped with work light, electric contact stop, and hydraulic oil
• - Includes 2 working cylinders and 2 foot pedals

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Connection voltage: 400 v
  • - Mains frequency: 50 hz

Extra information

• - Punching Station: Punching pressure: 65 t Max diameter x sheet thickness (400 N/mm² steel): 57 x 10 mm Extended throat (factory option): 620 mm Max stroke: 55 mm Number of strokes: 25 /min Throat: 305 mm Blade Length: 380 mm 45° angle cut, max leg length x max thickness: 100 x 15 mm Working height: 900 mm Flat Steel Shears: Material Width x Thickness max: 375 x 15 mm Blade Length: 380 mm Angle Cut 45° Max. Leg Length x Thickness max: 100 x 15 mm Working Height: 900 mm Steel Bar Shears: Round Material Capacity: 45 mm Square Material Capacity: 45 mm Notching Station: Max Notching Width: 45 mm Max Notching Depth: 90 mm Working Height: 100 x 100 x 10 mm Angle Steel Shears: Cutting capacity 90° L-profile: 120 x 120 x 12 mm Cutting capacity 45° L-profile: 70 x 10 mm Cutting capacity for U-I profiles (accessory): 120 x 58 mm Cutting capacity for T-profiles (accessory): 90 x 11 mm Working height: 1140 mm
